03_14
03_15
03_16

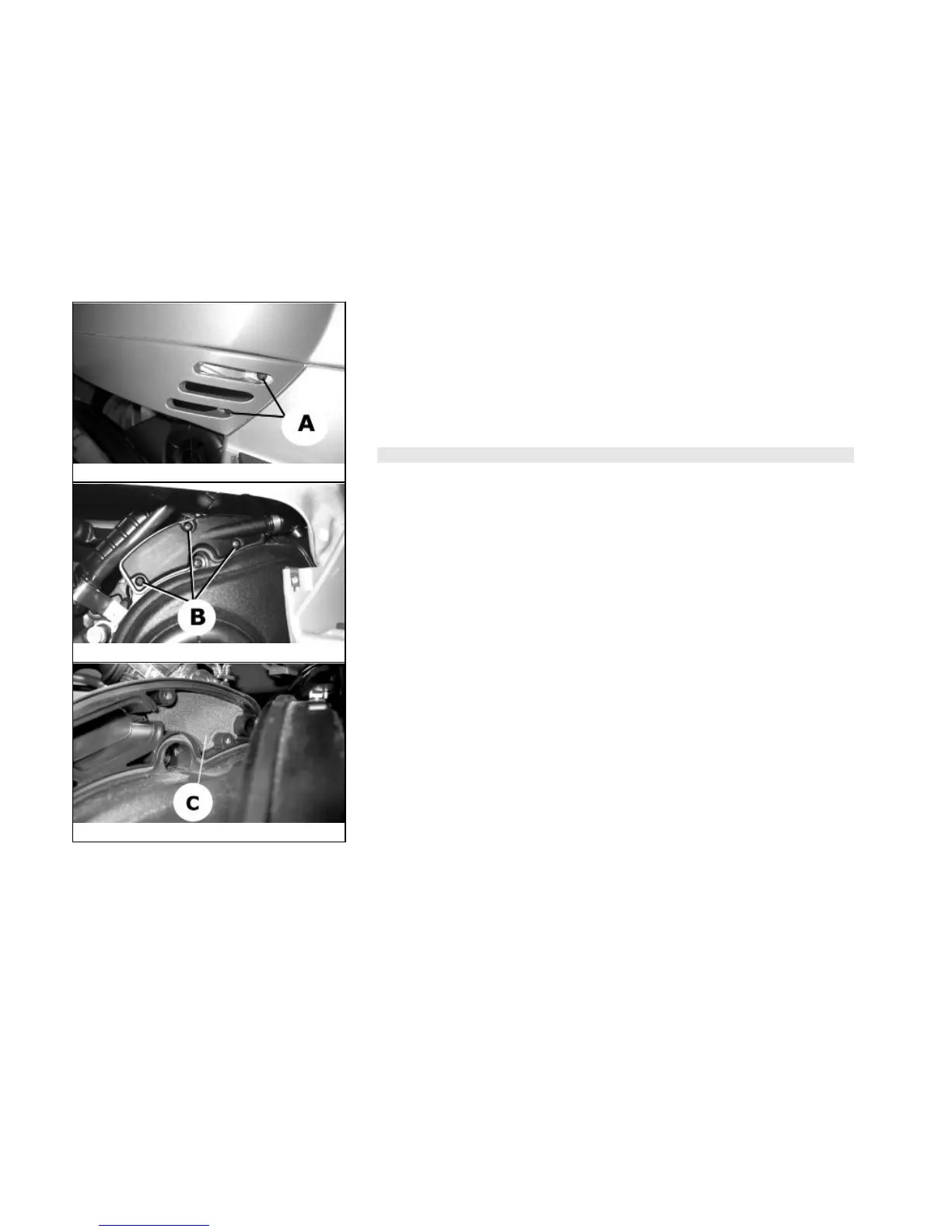

Secondary air system (03_14, 03_15, 03_16, 03_17)
Use the two screws "A" on the right side panel and remove it. Use the three screws
"B" to remove the cover of the secondary air box. Move the cover of the box away and
remove the sponge filter "C". Wash the sponge with water and a neutral soap, and dry
it with a clean rag and shorts blasts of compressed air. When cleaning the filter, make
sure the reed valve "D" is in good condition then reinsert it in its seat on the box.
Before closing the SAS box cover, check the condition of the O-ring seal; replace it if
it appears damaged or deformed.
N.B.
The reed valve can be inserted in only one direction on the SAS housing
32
