Vespa LX 50 4T User Manual

03_32

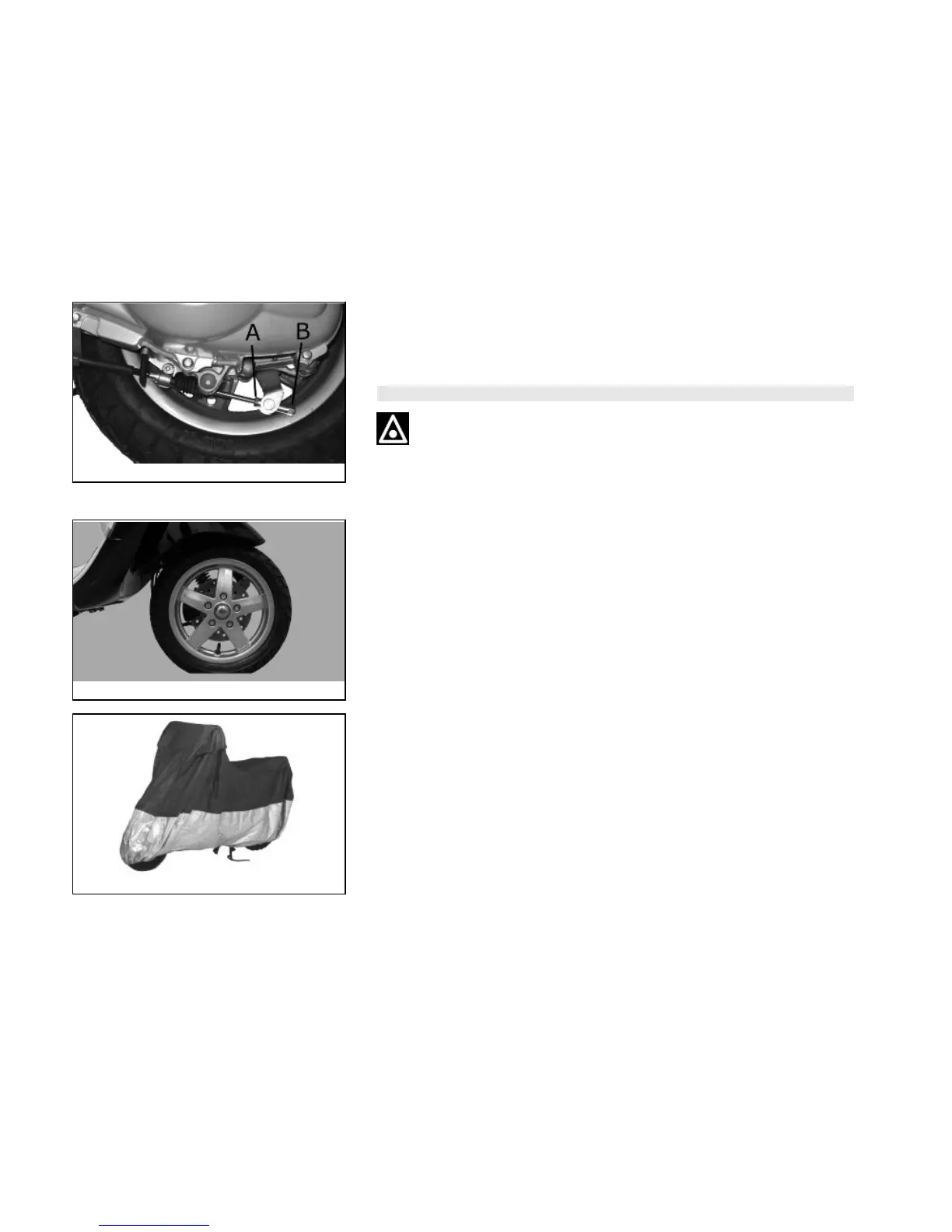

Rear drum brake (03_32)
Operate adjustment nut «B» and loosen lock nut «A» shown in the figure. Note that
when the throttle is in idle the wheel should rotate free. After the adjustment, screw
lock nut «A».
CAUTION
THE BRAKING ACTION SHOULD BEGIN AFTER ABOUT 1/3 OF THE BRAKE
LEVER STROKE.
03_33
Puncture (03_33)
The vehicle is equipped with Tubeless tyres. When there is a puncture, Tubeless tyres
- unlike tyres with inner tubes - go flat very slowly. This offers greater riding safety. A
tyre that goes flat very slowly can be repaired with an "Inflate and Repair" spray. Tyres
should be later fully repaired or replaced at an Authorised Service Centre.
03_34
Periods of inactivity (03_34)
We recommend carrying out the following operations:
1. General cleaning of the vehicle.
2 - With the engine off and the piston at bottom dead centre position, remove the spark
plug and pour 1÷2 cc of motor oil through its hole. Operate the starter 3-4 times letting
the engine perform a few revolutions, then remount the spark plug.
3 - Drain up all the vehicle's fuel; spread antirust grease on the unpainted metal parts;
keep the wheels lifted above the ground.
44
3 Maintenance

Vespa LX 50 4T Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	49.9 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Front Brake	200 mm disc
Rear Brake	110 mm drum
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Height	1, 140 mm
Transmission	Automatic
Fuel Tank Capacity	7 liters
Seat Height	785 mm
Dry Weight	96 kg
Max Power	4.35 hp @ 8, 250 rpm
Length	1, 770 mm
Width	705 mm
Front Suspension	Single arm with helical spring and hydraulic shock absorber
