Front light group (03_22, 03_23)
To access the headlight bulbs, remove the front of the handlebar cover, as follows:
1) Remove the rear-view mirrors; for this operation follow the instructions described
and illustrated in «Rear-view mirrors» section.

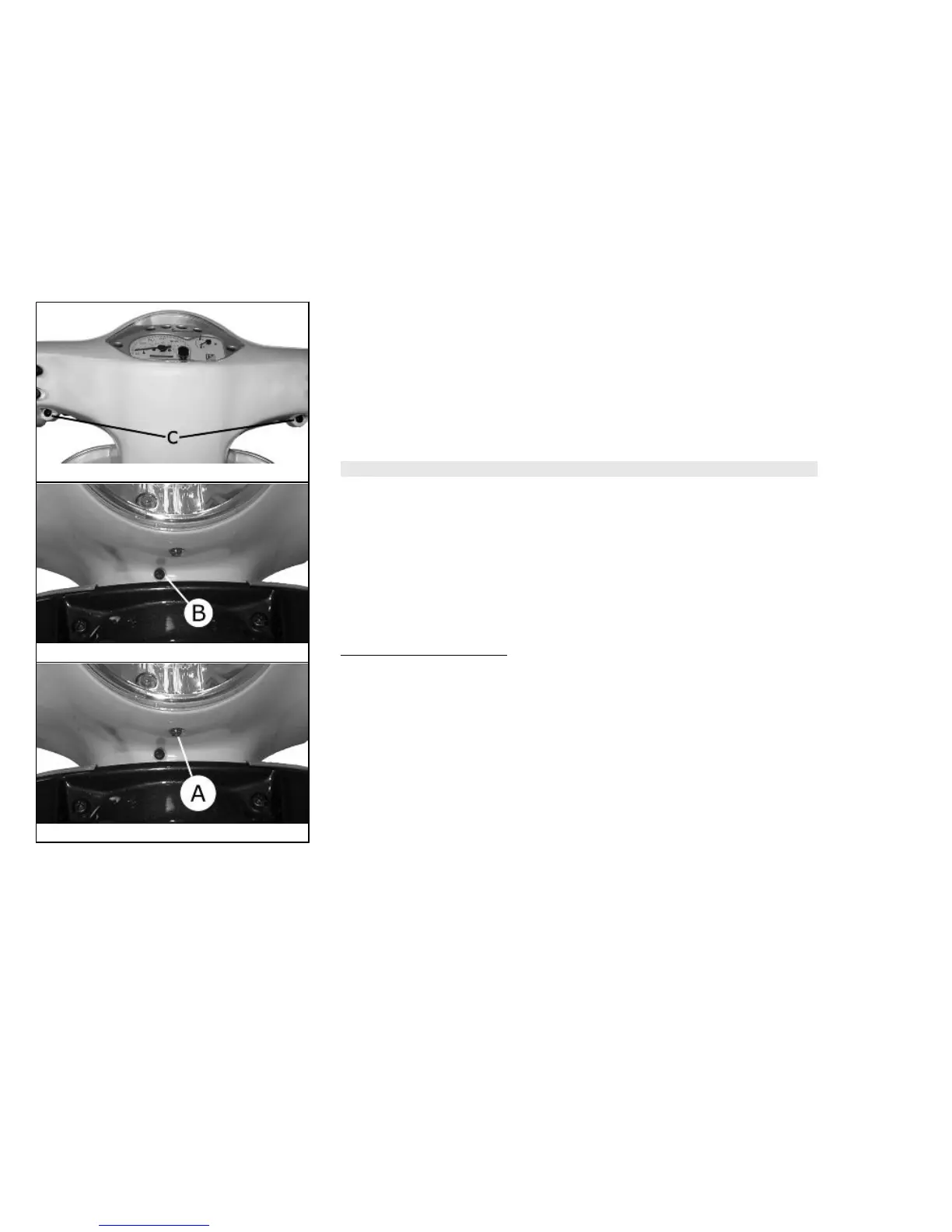

2) Unscrew the 3 screws holding the handlebar cover. The front central one «B» and
the rear 2 «C». Once this is done, the handlebar cover can be removed.
3) Remove the handlebar cover to access the headlight and the bulbs.
N.B.
IF MISTING IS NOTICED ON THE INSIDE OF THE HEADLAMP GLASS, THIS
DOES NOT INDICATE A FAULT AND IS RELATED TO THE HUMIDITY AND/OR
TO LOW TEMPERATURES.
THE PHENOMENON SHOULD QUICKLY DISAPPEAR WHEN THE LIGHT IS
SWITCHED ON.
THE PRESENCE OF DROPS OF WATER, ON THE OTHER HAND, COULD INDI-
CATE THAT WATER IS INFILTRATING. CONTACT THE PIAGGIO AFTER-SALES
SERVICE NETWORK.
Electric characteristic
Bulbs
1 12V35/35W bulb for high- and low-beam light
1 12V-5W bulb for tail light
Headlight adjustment (03_24, 03_25)
Proceed as follows:
1. Place the vehicle in running order and with the tyres inflated to the prescribed pres-
sure, on a flat surface 10 m away from a white screen situated in a shaded area,
making sure that the longitudinal axis of the scooter is perpendicular to the screen;
