Vespa LXV 125 User Manual

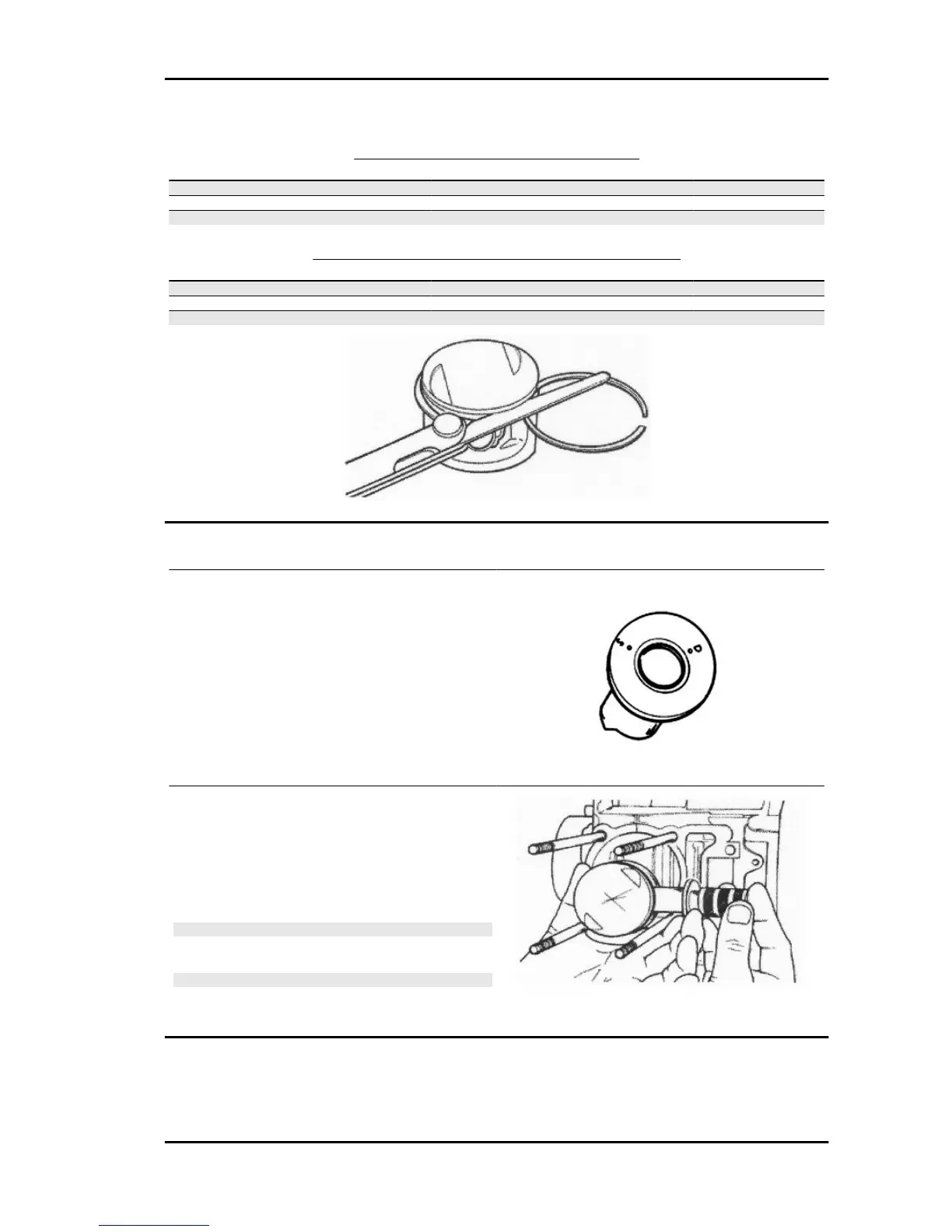

STANDARD COUPLING CLEARANCE
Name Description Dimensions Initials Quantity
Top piston ring 0.025 ÷ 0.070
Middle piston ring 0.015 ÷ 0.060
oil scraper 0.015 ÷ 0.060
MAXIMUM ADMITTED CLEARANCE AFTER USE
Name Description Dimensions Initials Quantity
Top piston ring 0.080 mm
Middle piston ring 0.070 mm
oil scraper 0.070 mm
Removing the piston
- Install piston and wrist pin onto the connecting
rod, aligning the piston arrow the arrow facing to-
wards the exhaust.
- Fit the pin stop ring onto the appropriate tool.
Specific tooling
020430Y Pin lock fitting tool
- With the opening in position indicated on the tool,
take stop ring in the closed position using the
punch.
- Fit the wrist pin stop using the plug as shown in
the figure
N.B.
THE TOOL FOR INSTALLING THE STOP RINGS MUST BE
USED MANUALLY.
CAUTION
USING A HAMMER TO POSITION THE RINGS CAN DAM-
AGE THE LOCKING HOUSING.
LXV 125 Engine
ENG - 103

Vespa LXV 125 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Seat Height	785 mm
Max Torque	9.6 Nm at 6, 000 rpm
Length	1, 770 mm
Front Brake	200 mm disc brake
Rear Brake	110 mm drum brake
Weight	114 kg
Top Speed	91 km/h
Transmission	Automatic CVT
Rear Suspension	Coil spring and hydraulic shock absorber
