LET ON THE MANIFOLD HAS A SECTION INTENTIONALLY
REDUCED FOR THE PURPOSE OF ENHANCING THE SUC-
TION PULSATION AND THEREBY GUARANTEE A CON-
STANT TAP FLOW RATE.
Specific tooling
020329Y MityVac vacuum-operated pump
Characteristic
Minimum flow rate
20 cc

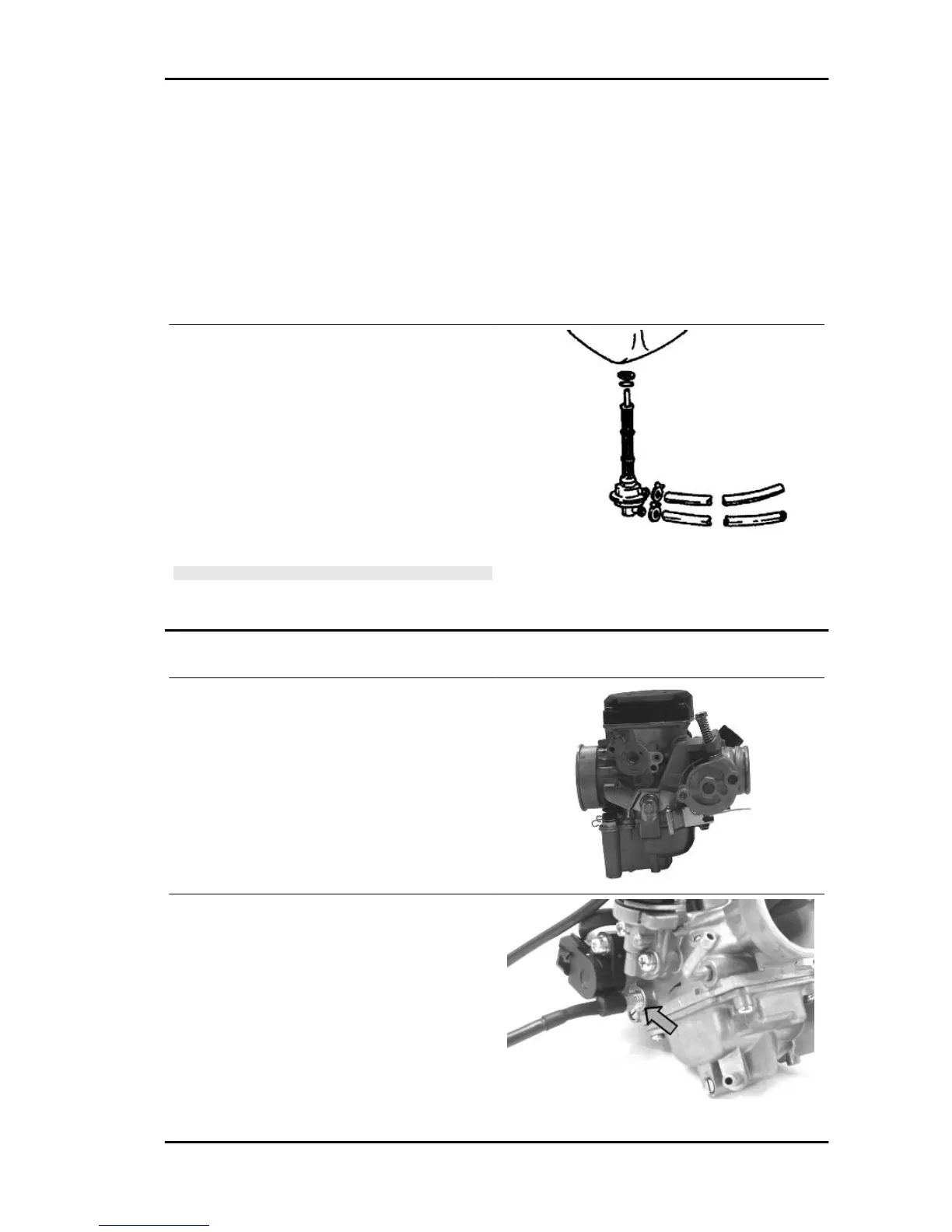

- Completely empty the gas tank.
- Remove the petrol delivery tube and the suction
tube.
- Loosen the clip and remove the tap.
- Clean the tank and the filter of the tap with a spe-
cific solvent.
- Refit the tap making sure that there is an O-Ring.
- Turn the tap to the direction it had before it was
removed and block the clip.
N.B.
THE FILTER CAN BE UNSCREWED FROM THE COCK TO
FACILITATE CLEANING.
Removing the carburettor
- To detach the carburettor from the engine, it is
necessary to move the air filter and remove the
throttle control transmission, the automatic starter
connection, the clamps anchoring the carburettor
to the filter housing and to the inlet manifold, the
air delivery pipe to the diaphragm, the heater, the
intake fitting and the TPS cable.
- Remove the heater
LXV 125 Engine
ENG - 133

Vespa LXV 125 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Seat Height	785 mm
Max Torque	9.6 Nm at 6, 000 rpm
Length	1, 770 mm
Front Brake	200 mm disc brake
Rear Brake	110 mm drum brake
Weight	114 kg
Top Speed	91 km/h
Transmission	Automatic CVT
Rear Suspension	Coil spring and hydraulic shock absorber
