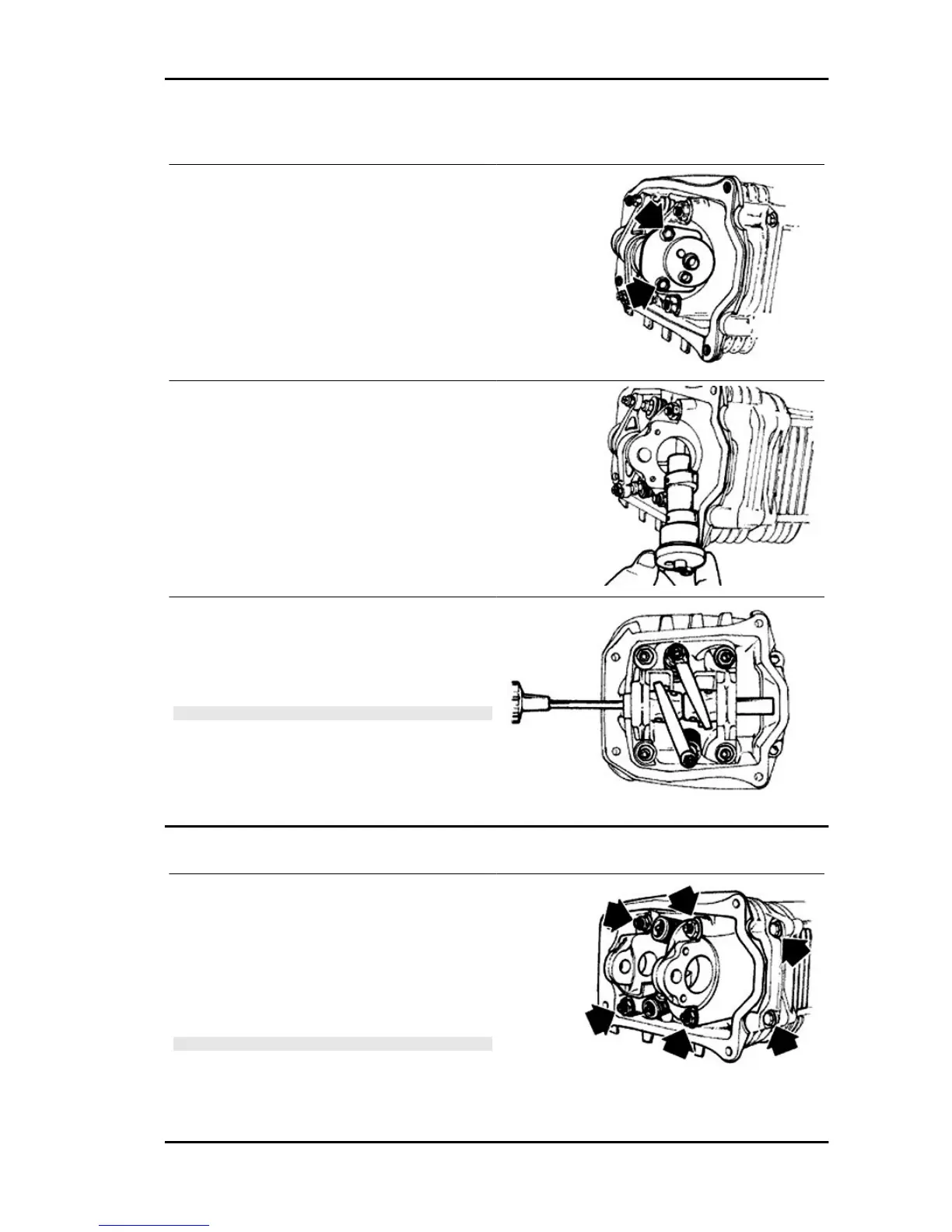

Removing the cam shaft
- Remove the two screws and the cam shaft re-
tainer shown in the diagram.
- Remove the cam shaft.
- Remove the pin of the rocking levers from the
flywheel side holes.
- Remove the rocking levers and the elastic wash-
er.
N.B.
MARK THE ROCKING LEVERS ASSEMBLE POSITION, SO
AS TO AVOID THE INVERSION OF INLET WITH THE OUT-
LET.
Removing the cylinder head
- Remove the spark plug.
- Remove the 2 side fixings shown in the figure.
- Loosen the 4 head-cylinder fastening nuts in two
or three stages and in criss-cross fashion.
- Remove the head, the two centring dowels and
the gasket.
N.B.
IN CASE OF NEED, THE HEAD MAY BE REMOVED WITH
THE CAMSHAFT, PINS, ROCKING LEVERS AND FIXING
BRACKET. THE HEAD CAN ALSO BE REMOVED WITH-
OUT REMOVING THE CHAIN AND THE DRIVING SHAFT
CHAIN TIGHTENER.
LXV 125 Engine
ENG - 99

Vespa LXV 125 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Seat Height	785 mm
Max Torque	9.6 Nm at 6, 000 rpm
Length	1, 770 mm
Front Brake	200 mm disc brake
Rear Brake	110 mm drum brake
Weight	114 kg
Top Speed	91 km/h
Transmission	Automatic CVT
Rear Suspension	Coil spring and hydraulic shock absorber
