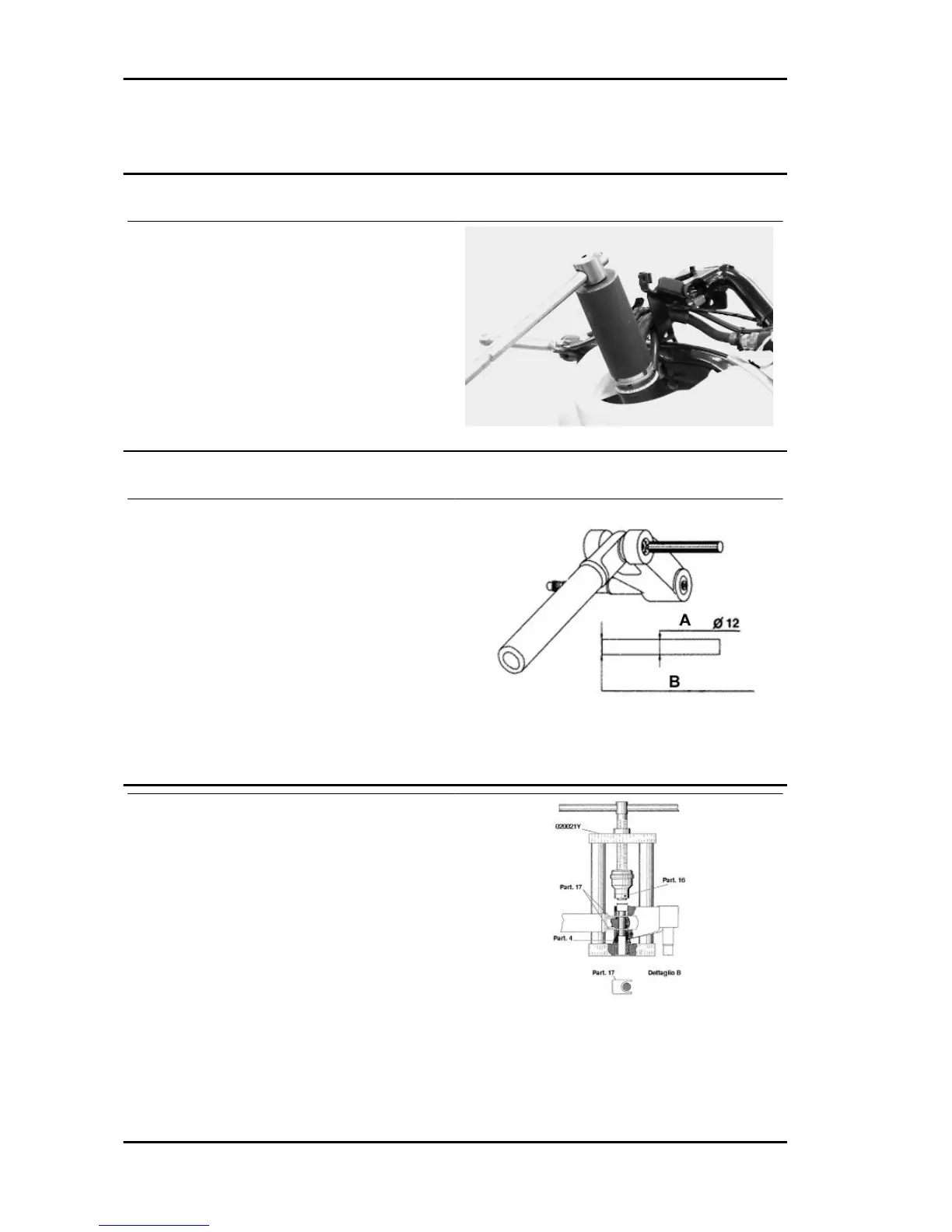

Steering column
Removal
After removing the upper seat, lean the vehicle on
one side and extract the steering tube completely
from the fork.
Specific tooling
020055Y Wrench for steering tube ring nut
Overhaul
- Press and remove the wedging washer with the
help of a pointed end.
- For the second washer, repeat the operation us-
ing the punch on the side opposite to the one
shown in the figure.
A = Ø12 Punch
B = Sharp-edged end
- Lubricate the sealing rings with mineral oil and
half-fill the roller casings with grease.
- Insert the seal ring on the pin and the roller bush-
ing with wedging washers at the same time.
- Remove the specific tool, then the part 5 (guiding)
partially ejected in the previous assembly stage;
leave part 4* always fitted.
- Replace part 3 with part 16* on the stem.
- Push, from the handgrip, the wedging washer -
roller casing - seal ring unit, placing part 16 until it
stops on the swinging hub
Suspensions LXV 125
SUSP - 150
