Automatic transmission
Transmission cover

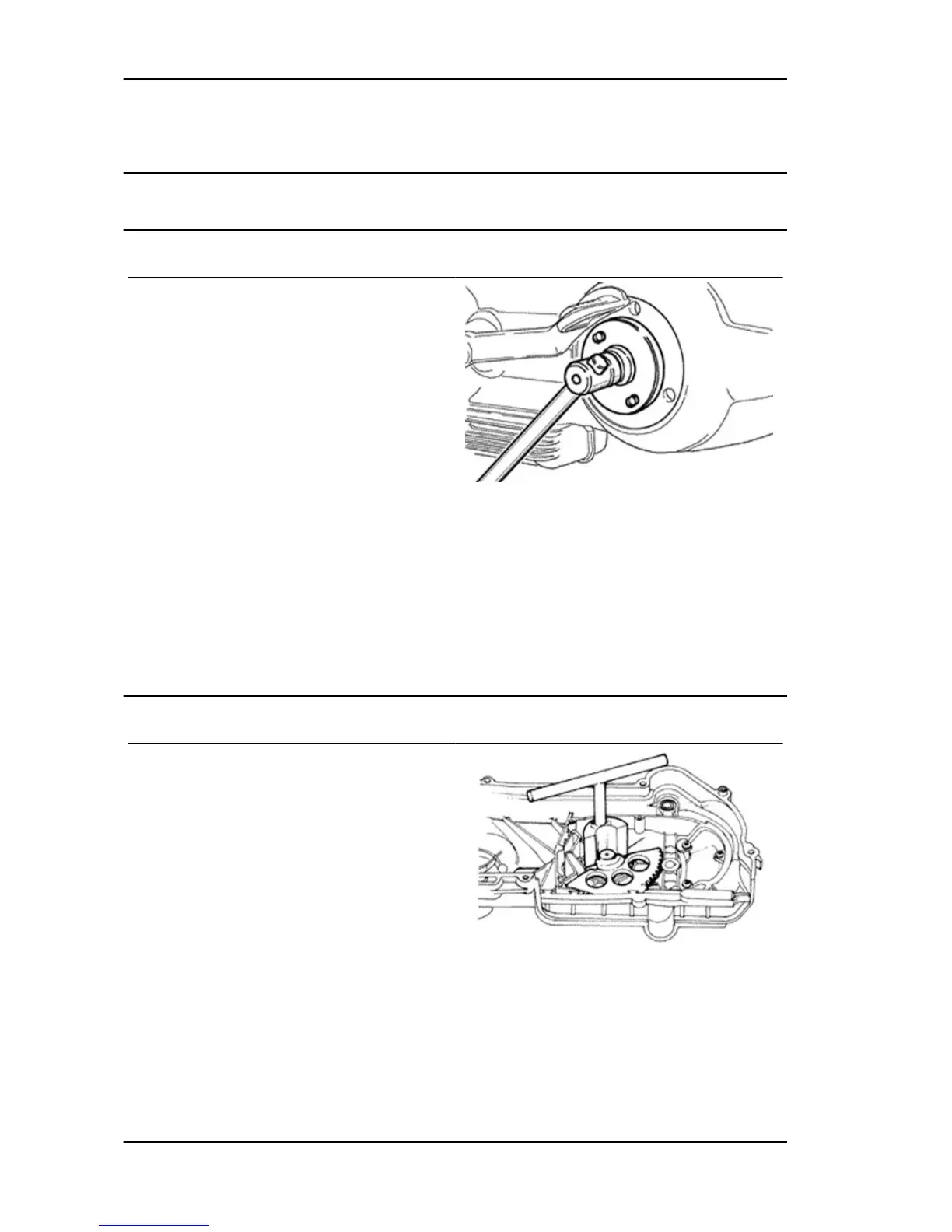

- To remove the transmission cover it is necessary
to remove the rear plastic cover first by inserting a
screwdriver in the corresponding slotted holes.
Using the clutch bell lock wrench, remove the driv-
en pulley axle locking nut and recover the washer.
- Remove the cap/dipstick from the engine oil filling
hole.
- Remove the 10 screws and the earth cable fas-
tened under one of them.
- Remove the transmission cover. If this operation
is performed directly on the vehicle, it is necessary
to remove the cooling air coupling and the three air
filter housing retainers.
Specific tooling
020423Y driven pulley lock wrench
Kickstart
- Check the following for wear: toothed section,
toothed section shaft, cover seat bushing, pinion
shaft and its seating in the crankcase and the re-
turn spring.
- Remove the damaged components.
- Lubricate the spring with the recommended
grease.
- Remove the toothed sector and load the spring
with an appropriate tool.
- Refit the washer, the seeger ring and the Kick-
start lever.
Specific tooling
020432Y Tool to fit the start-up sector spring
Recommended products
Engine LXV 125
ENG - 76
