Vespa LXV 125 User Manual

AGIP GREASE MU3 Grease for odometer
transmission gear case
Soap-based lithium grease with NLGI 3; ISO-L-
XBCHA3, DIN K3K-20

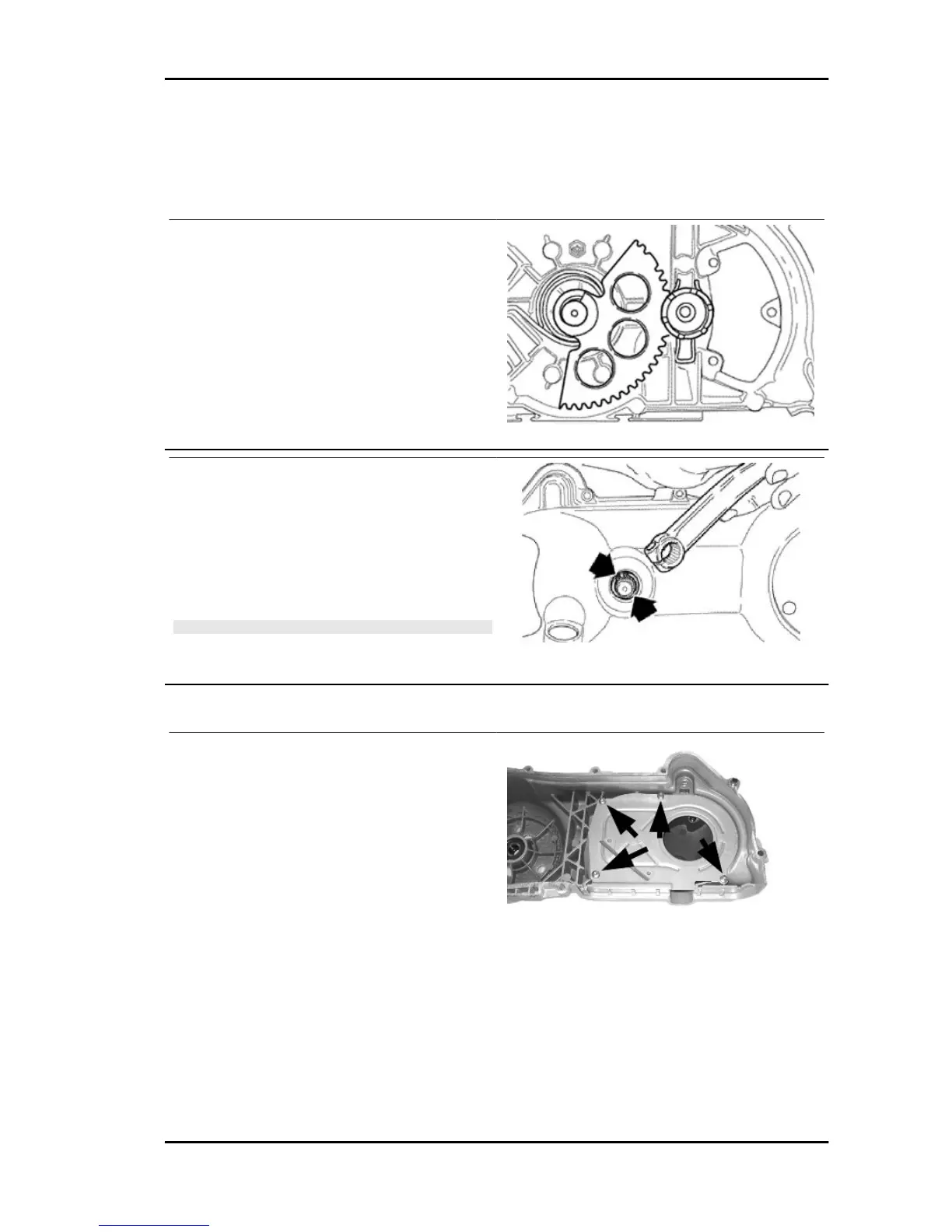

- Operating the starter lever, load the spring and
introduce the pinion in its seat.
- Refit the intake throat with the 3 screws and the
Kick-starter cover with the 4 screws. Tighten the
screws to the prescribed torque.
- Remove the start-up pinion pushing the starter
lever.
- Unscrew the kick starter screw, remove the lever.
-Remove the seeger ring and the washer indicated
in the figure.
-Pull out the toothed section.
WARNING
THE SECTION KEEPS THE SPRING SET, BE CAREFUL SO
AS NOT TO CAUSE ANY ACCIDENTS
Air duct
- Unscrew the Torx screws fixing the air manifold
bulkhead and remove the bulkhead.
- Remove the 3 screws, then take out the manifold
as well as the filter.
LXV 125 Engine
ENG - 77
