mm. Remember that such operation must have performed on a disassembled manifold which must be
cleaned afterwards.
Cooling fan
- Refit the parts in reverse order of the removal
operation.
- Make sure that there are spacers with the two
rear retainers of the housing.
- The long spacers should be in a high position.
CAUTION
TAKE CARE TO CORRECTLY POSITION THE FLYWHEEL
CONNECTOR.

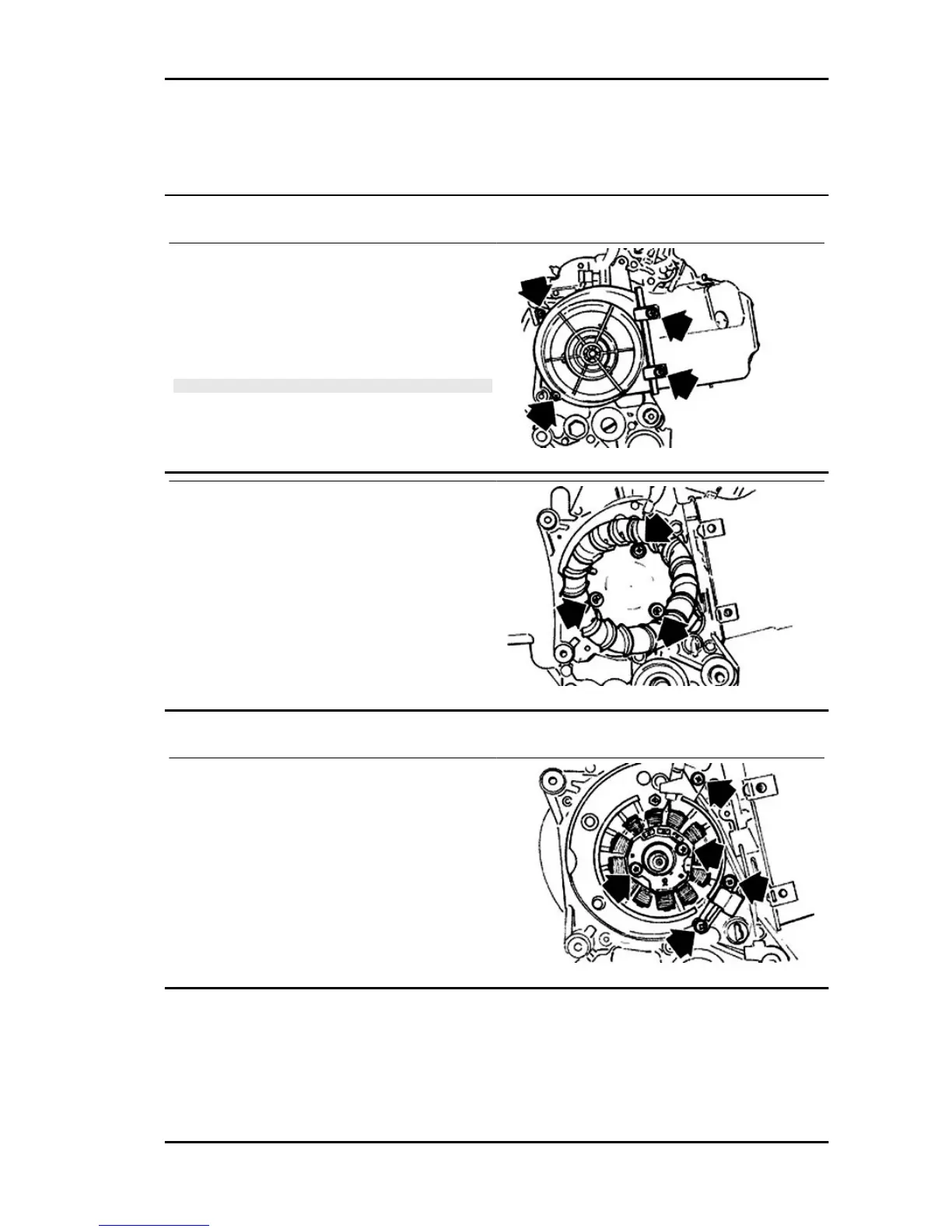

- Remove the cooling fan by acting on the three
fixings indicated in the figure.
Removing the stator
- Remove the electric terminal of the minimum oil
pressure switch.
- Remove the two Pick-Up screws and the one for
the wiring harness bracket as well as the two stator
fixing screws shown in the figure.
- Remove the stator and its wiring.
LXV 125 Engine
ENG - 95

Vespa LXV 125 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Seat Height	785 mm
Max Torque	9.6 Nm at 6, 000 rpm
Length	1, 770 mm
Front Brake	200 mm disc brake
Rear Brake	110 mm drum brake
Weight	114 kg
Top Speed	91 km/h
Transmission	Automatic CVT
Rear Suspension	Coil spring and hydraulic shock absorber
