020427Y Piston fitting band

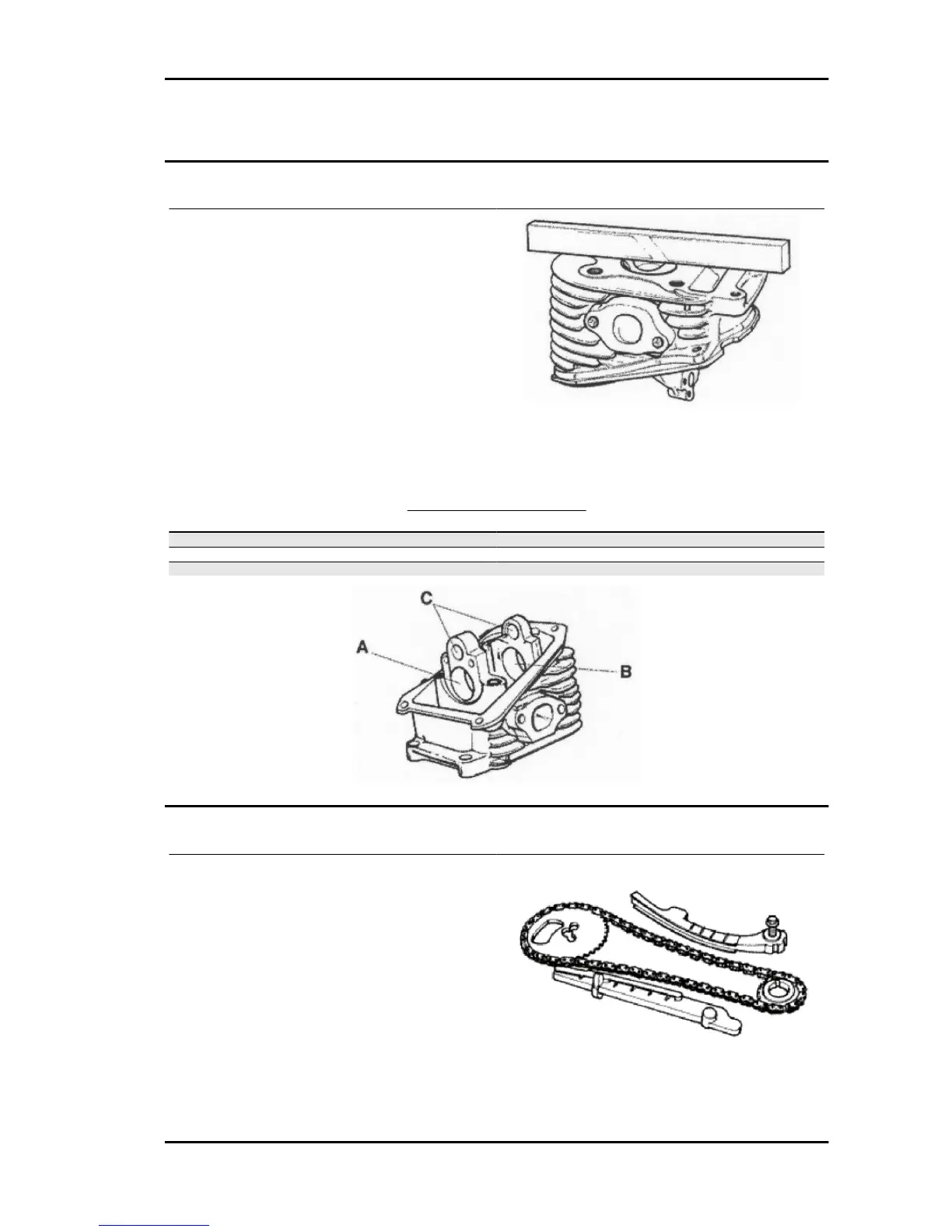

Inspecting the cylinder head
- Using a trued bar check that the cylinder head
surface is not worn or distorted.
- Check that the camshaft and rocking lever pin
bearings show no signs of wear.
- Check that the cylinder head cover surface, the
intake manifold and the exhaust manifold are not
worn.
Characteristic
Maximum admitted unevenness: Head check
0.05 mm
STANDARD DIAMETER
Specification Desc./Quantity
Standard diameter A Ø 32.5 ÷ 32.525
Standard diameter B Ø 20 ÷ 20.021
Standard diameter C Ø 12 ÷ 12.018
Inspecting the timing system components
- Check that the guide shoe and the tensioner shoe
are not worn out.
- Ensure that the camshaft drive pulley, the chain
assembly and the sprocket wheel are not worn.
- If sings of wear are found, replace the parts. if the
chain, pinion or pulley are worn, replace the whole
assembly.
LXV 125 Engine
ENG - 105

Vespa LXV 125 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Seat Height	785 mm
Max Torque	9.6 Nm at 6, 000 rpm
Length	1, 770 mm
Front Brake	200 mm disc brake
Rear Brake	110 mm drum brake
Weight	114 kg
Top Speed	91 km/h
Transmission	Automatic CVT
Rear Suspension	Coil spring and hydraulic shock absorber
