- Repeat the operation described above using the
tool fitted with part 16 and part 22* instead of part
4 on the stem, on the side opposite the one shown
in the figure to refit the second wedging washer -
roller casing - sealing ring unit.
* Supplied with the tool
Specific tooling
020021Y Front suspension service tool
Recommended products
AGIP GREASE PV2 Grease for control levers
on the engine
White anhydrous-calcium based grease to protect
roller bearings; temperature range between -20 °
C and +120 °C; NLGI 2; ISO-L-XBCIB2

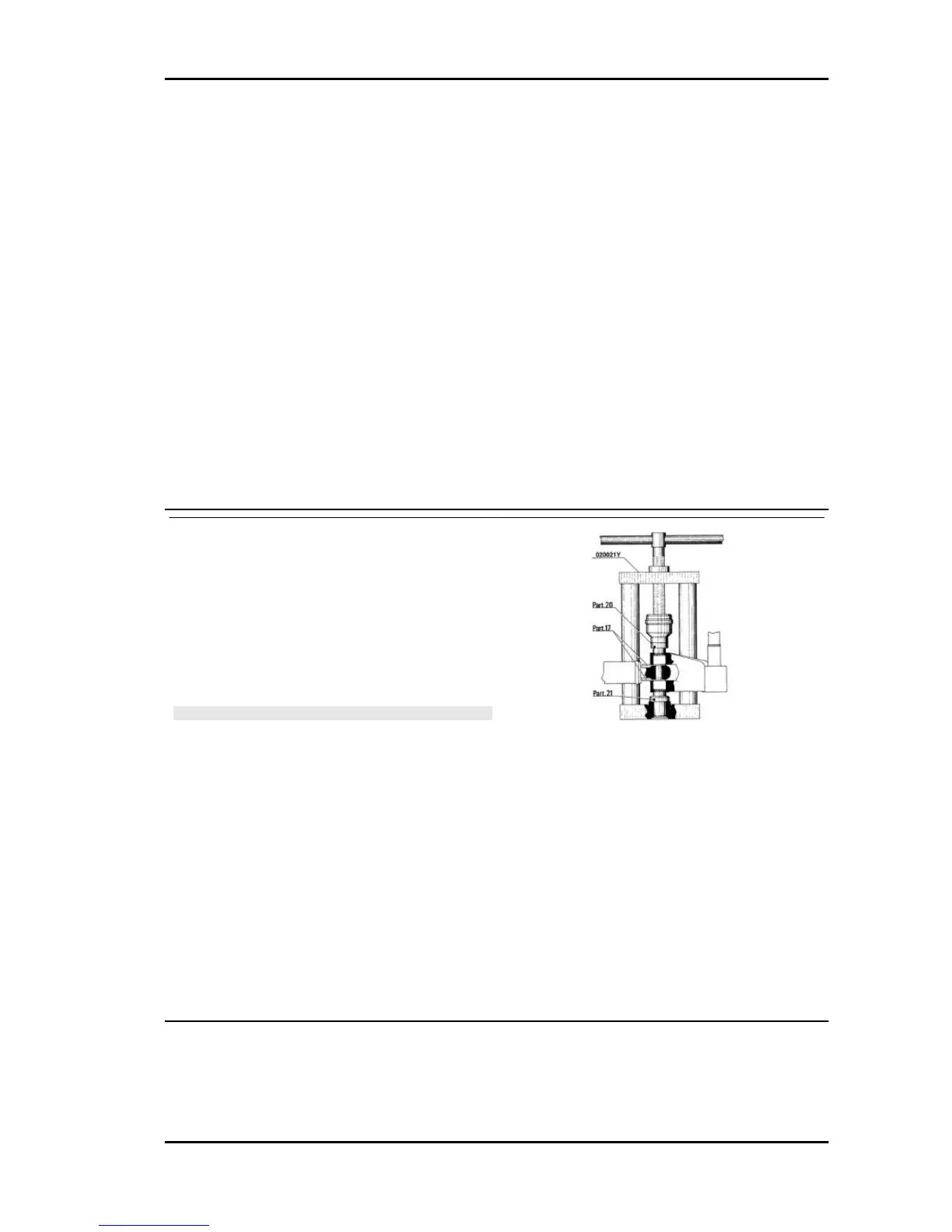

Use the tool fitted with parts 3 and 4, as indicated
to fit the pin, and press operating the handgrip,
until wedging the washers on the swinging hub.
- Remove the spacers, part 17, fill with grease the
area between the steering tube and the swinging
hub, and place the dust guard rings in that place.
* Supplied with the tool
N.B.
ASSEMBLE THE LOWER HOUSING ON HE STEERING
TUBE WITH A TUBE SECTION OF AN ADEQUATE DIAME-
TER.
Specific tooling
020021Y Front suspension service tool
001330Y Tool for fitting steering seats
Recommended products
AGIP GREASE PV2 Grease for control levers
on the engine
White anhydrous-calcium based grease to protect
roller bearings; temperature range between -20 °
C and +120 °C; NLGI 2; ISO-L-XBCIB2
LXV 125 Suspensions
SUSP - 151
