Vespa LXV 125 User Manual

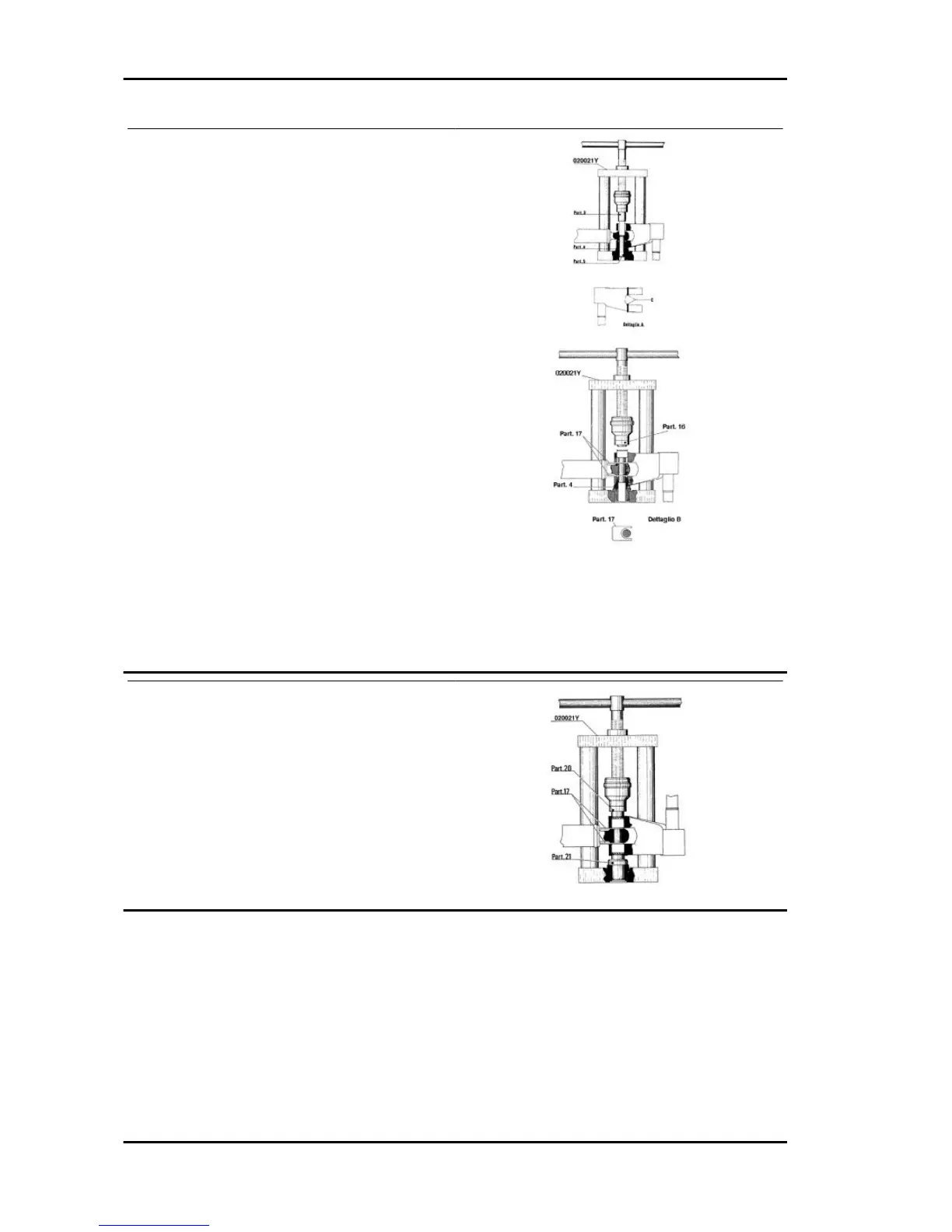

- Fit both dust guard rings «C» on the swinging hub
as shown in the detail drawing «A».
- Connect the swinging hub to the steering tube
with the guide pin, part 5*.
- Use the specific tool fitted with part 3* on its stem
and with part 4 at the bottom of the tool.
- Insert the previously greased pin on the swinging
hub and with the tool handgrip, move part 3 until it
stops on the steering tube.
- After fitting the pin, insert the two spacers, part
17*, slightly hitting with the mallet.
* Supplied with the tool
Specific tooling
020021Y Front suspension service tool
Recommended products
AGIP GREASE PV2 Grease for control levers
on the engine
White anhydrous-calcium based grease to protect
roller bearings; temperature range between -20 °
C and +120 °C; NLGI 2; ISO-L-XBCIB2
- Use the tool fitted with part 20* and part 21* on
its stem as shown in the figure.
- Push the two roller casings with the handgrip until
their bottoms make contact with the pin end.
Suspensions LXV 125
SUSP - 152

Vespa LXV 125 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Seat Height	785 mm
Max Torque	9.6 Nm at 6, 000 rpm
Length	1, 770 mm
Front Brake	200 mm disc brake
Rear Brake	110 mm drum brake
Weight	114 kg
Top Speed	91 km/h
Transmission	Automatic CVT
Rear Suspension	Coil spring and hydraulic shock absorber
