Vespa LXV 125 User Manual

- Lubricate the main bushings and insert the crank-
shaft in the transmission side crankcase half.
- Reassemble the two crankcase halves.
- Fit the 11 screws and tighten them to the pre-
scribed torque.
N.B.
WHEN FITTING THE HALF CASING AND THE CRANK-
SHAFT, TAKE CARE NO TO DAMAGE THE SHAFT THREA-
DED TANGS.
Locking torques (N*m)
Locking torque 11 ÷ 13

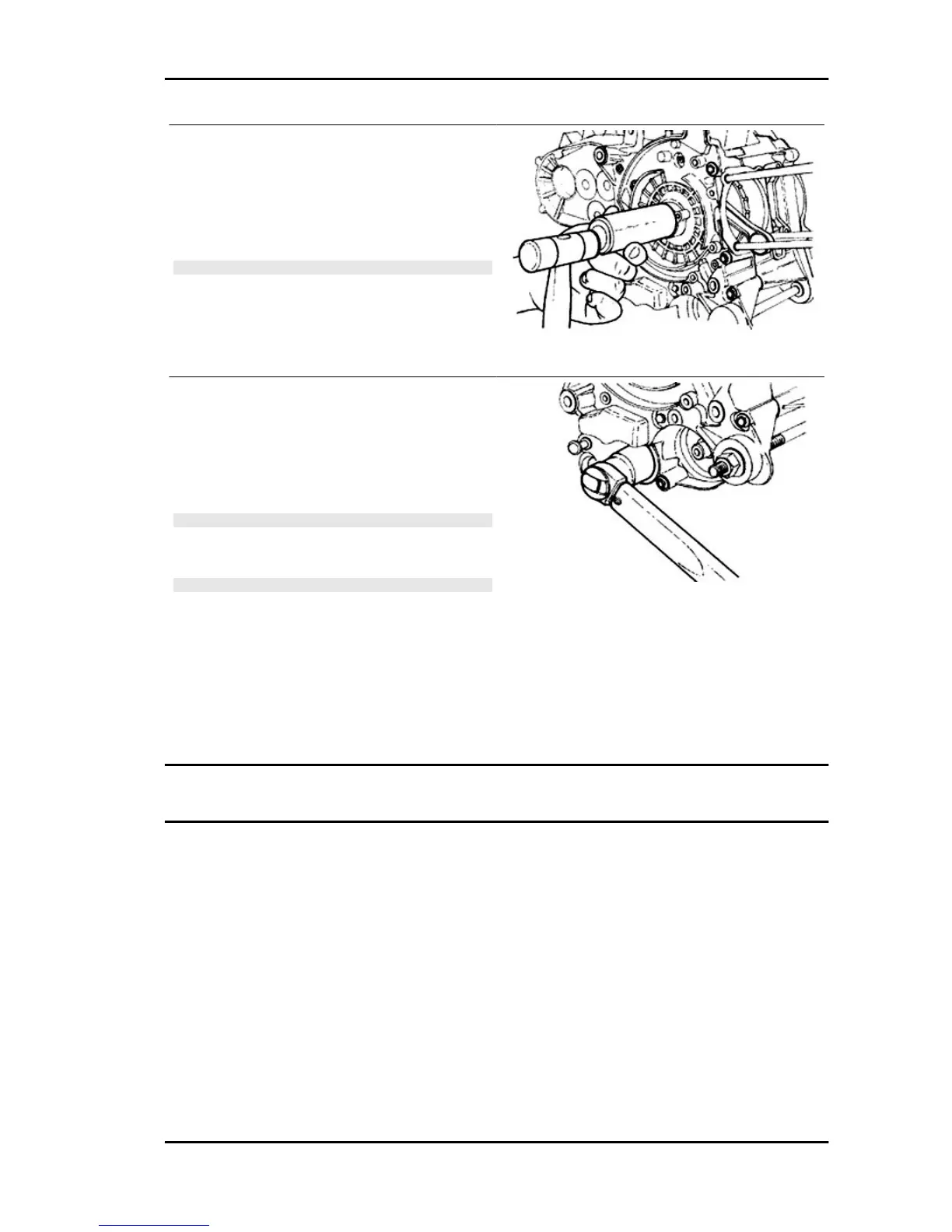

- Lubricate the flywheel oil seal.
- Use the appropriate tool to assemble the oil seal.
- Fit a new O-ring on the pre-filter and lubricate it.
- Insert the pre-filter on the engine with its corre-
sponding cover to the specific torque.
N.B.
REMOVE ANY EXCESS FROM THE CRANKCASE COU-
PLING GASKET ON THE CYLINDER PLANE, TO ENSURE
BETTER SEALING PERFORMANCE.
N.B.
FAILURE TO USE THE SPECIFIC TOOL CAN RESULT IN
AN INCORRECT DEPTH POSITION AND AS A CONSE-
QUENCE IN INADEQUATE OIL SEALING.
Specific tooling
020425Y Punch for flywheel-side oil seal
Locking torques (N*m)
Locking torque 24 ÷ 30
Lubrication
LXV 125 Engine
ENG - 121

Vespa LXV 125 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Seat Height	785 mm
Max Torque	9.6 Nm at 6, 000 rpm
Length	1, 770 mm
Front Brake	200 mm disc brake
Rear Brake	110 mm drum brake
Weight	114 kg
Top Speed	91 km/h
Transmission	Automatic CVT
Rear Suspension	Coil spring and hydraulic shock absorber
