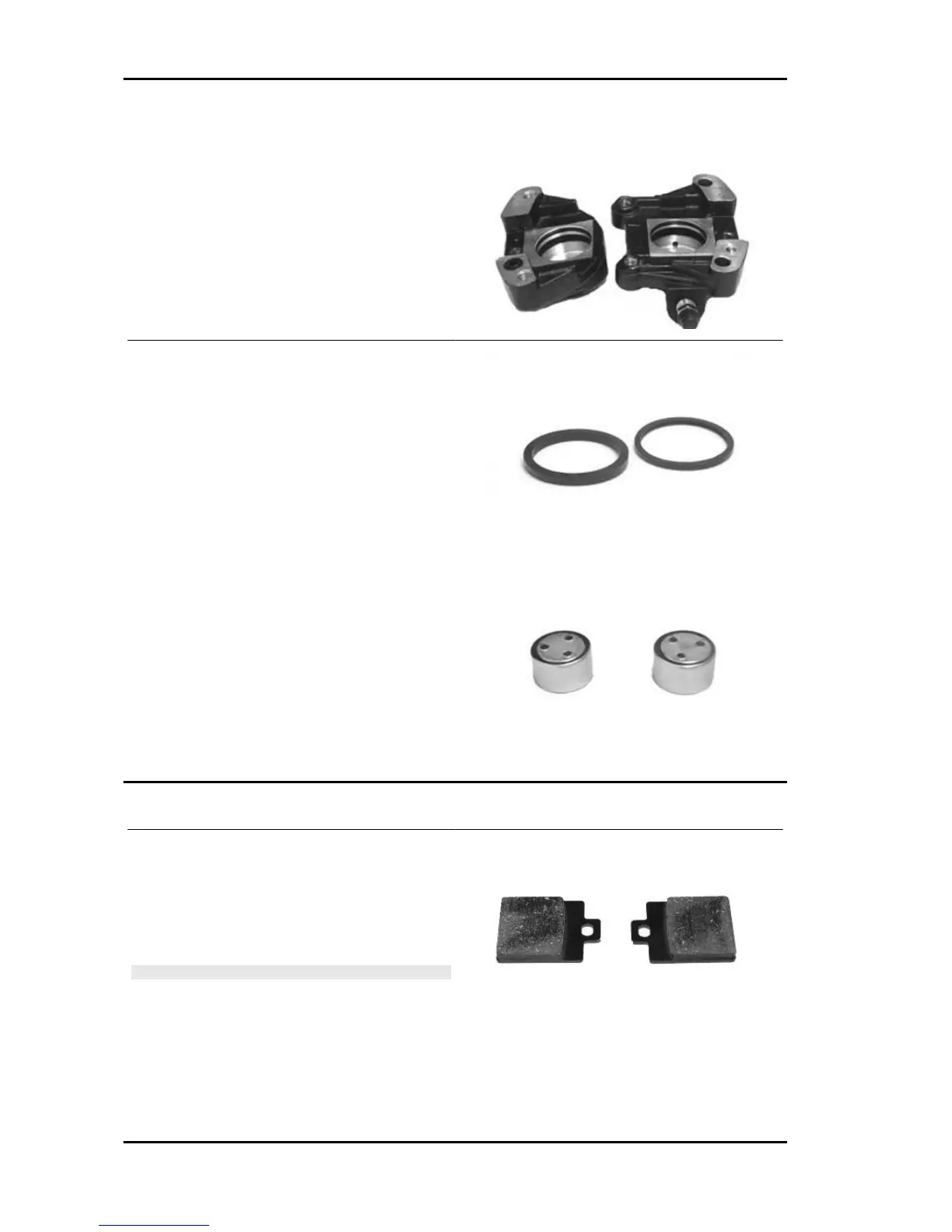

- Check there are no scorings on the pistons and
their seats; otherwise, replace them.
- Wash and blow all the components carefully
- Fit the O-rings and new dust guards
- Refit the pistons in their seats being careful to
lubricate with brake fluid
- Recouple the half callipers and lock the two
screws at the specified torque
Locking torques (N*m)
Calliper coupling screw 22 ÷ 27
Refitting
- Insert the brake pads in the calliper.
- Insert the pad fixing pin and the retention screw
being careful to position the terminals of it pointing
towards the bleed screw as shown in the photo.
- Insert the clip on the pad fixing pin
N.B.
FAILURE TO RESPECT THE PAD POSITIONING REQUIRE-
MENTS WITH RESPECT TO THE DIRECTION OF ROTA-
TION COULD COMPROMISE PROPER BRAKE FUNCTION-
ING AND NOISELESSNESS.
Braking system LXV 125
BRAK SYS - 164

Vespa LXV 125 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Seat Height	785 mm
Max Torque	9.6 Nm at 6, 000 rpm
Length	1, 770 mm
Front Brake	200 mm disc brake
Rear Brake	110 mm drum brake
Weight	114 kg
Top Speed	91 km/h
Transmission	Automatic CVT
Rear Suspension	Coil spring and hydraulic shock absorber
