Vespa LXV 125 User Manual

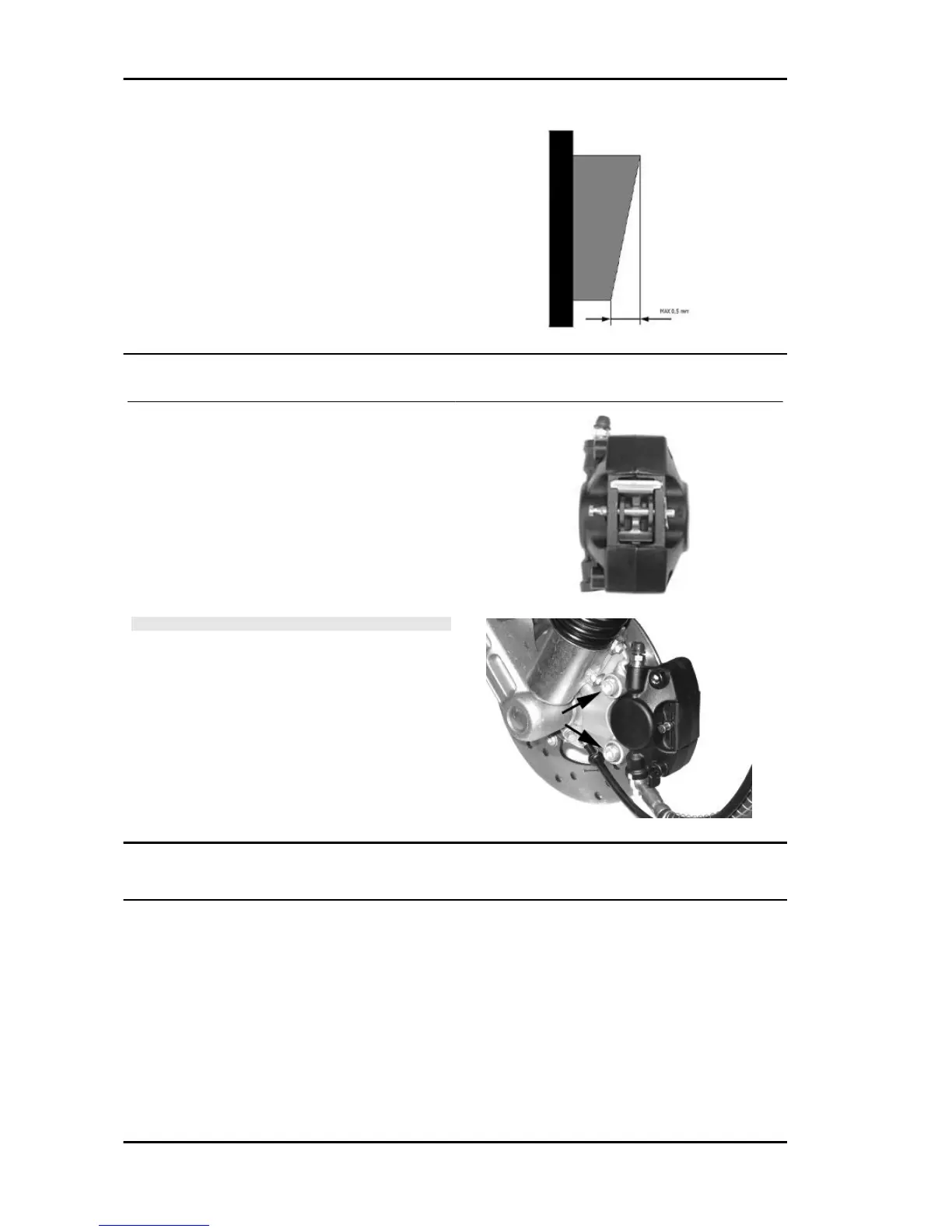

0.5 mm thickness difference in the residual friction
material is permitted
Refitting
- Insert the brake pads
- Insert the fixing pin being careful to position the
clip with the ends towards the bleed screw as in
the photo.
- Insert the lock on the bolt and then the protection
cover
- Fix the rear brake calliper to the bracket and
tighten the two screws to the specified torque.
CAUTION
BEFORE USING THE BRAKE, OPERATE THE LEVER A
FEW TIMES.
Locking torques (N*m)
Rear brake calliper tightening screw 20 ÷ 25 Nm
Fill
Braking system LXV 125
BRAK SYS - 168

Vespa LXV 125 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Seat Height	785 mm
Max Torque	9.6 Nm at 6, 000 rpm
Length	1, 770 mm
Front Brake	200 mm disc brake
Rear Brake	110 mm drum brake
Weight	114 kg
Top Speed	91 km/h
Transmission	Automatic CVT
Rear Suspension	Coil spring and hydraulic shock absorber
