Vespa LXV 125 User Manual

Front brake pump
Removal

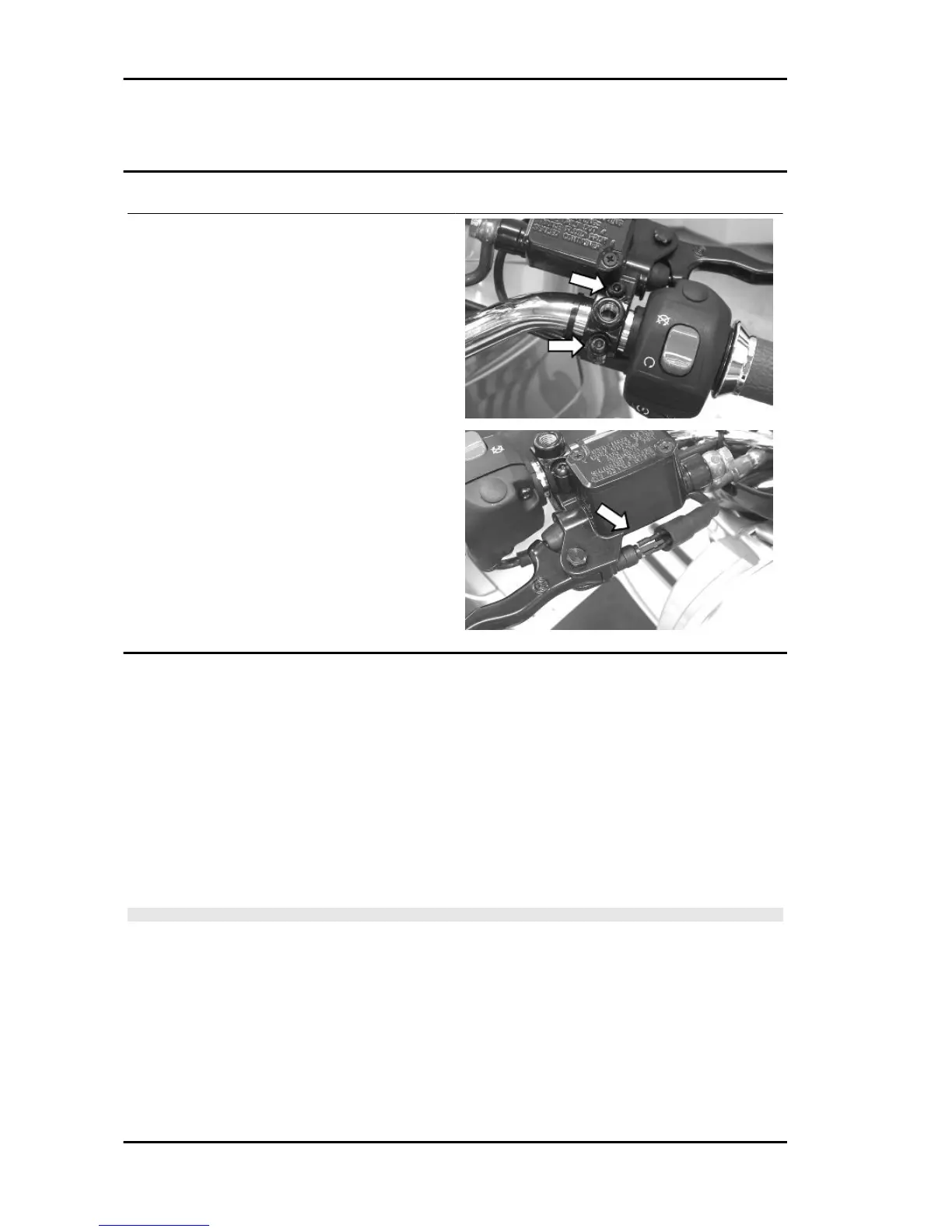

- Remove the two screws fixing the brake pump to
the handlebar indicated in the photograph
- Remove the oil pipes joint from the pump collect-
ing the brake oil in a container
- Remove the connector to the stop light switch
Overhaul
Proceed as follows:
1) Remove the brake lever by loosening the retaining screw; open the cover (2) and take out the dia-
phragm (3);
2) remove the cap (4) and take out the internal parts in order;
3) Check that:
- The body of the pump shows no signs of internal damage or corrosion;
- The plunger shows no sign of damage or abnormal wear;
- The plunger return spring is in good condition.
CAUTION
ALL THE SEALS AND GASKETS MUST BE REPLACED EVERY TIME THE PUMP IS SERVICED.
1. Reservoir cap screw
2. Reservoir cap.
3. Diaphragm.
4. Bellows.
5. Sealing ring
6. Piston.
7. Gasket.
Braking system LXV 125
BRAK SYS - 170

Vespa LXV 125 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Seat Height	785 mm
Max Torque	9.6 Nm at 6, 000 rpm
Length	1, 770 mm
Front Brake	200 mm disc brake
Rear Brake	110 mm drum brake
Weight	114 kg
Top Speed	91 km/h
Transmission	Automatic CVT
Rear Suspension	Coil spring and hydraulic shock absorber
