Vespa LXV 125 User Manual

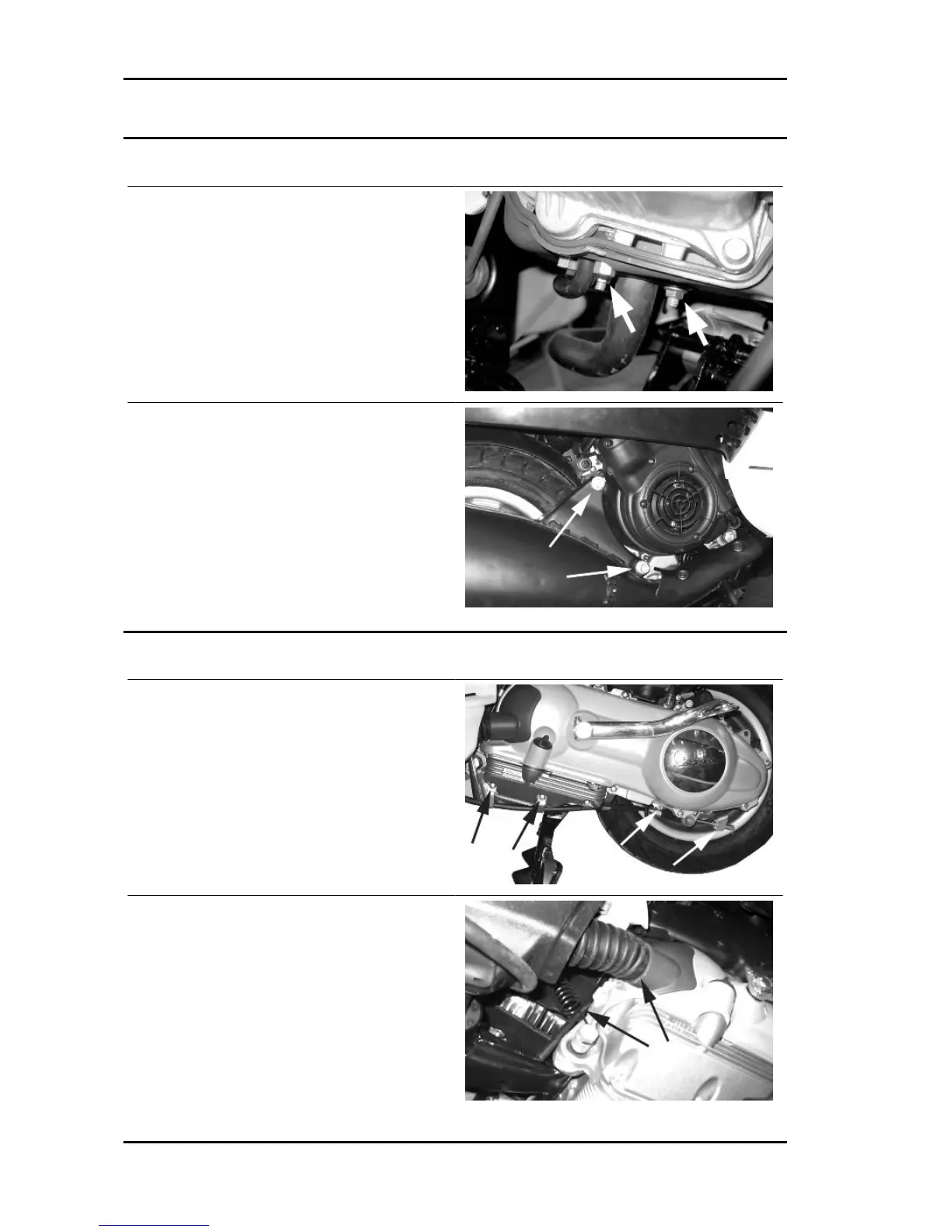

Exhaust assy. Removal
- Remove the 2 fixing nuts from the manifold to the
head
- Unscrew the 2 screws fixing the muffler to the
housing; then remove the whole muffler paying at-
tention to the interference between its supporting
bracket and the cooling cover.
Removal of the engine from the vehicle
- Remove the left and right side fairings
- Remove the helmet compartment
Remove the full muffler assembly.
- Remove the 3 rear brake transmission fixing
screws indicated in the photograph
- Disconnect the rear brake transmission unscrew-
ing the set screw
- Disconnect the belt cooling tube and the swinging
arm retaining spring shown in the photograph
- Disconnect the spark plug tube
Engine from vehicle LXV 125
ENG VE - 72

Vespa LXV 125 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Seat Height	785 mm
Max Torque	9.6 Nm at 6, 000 rpm
Length	1, 770 mm
Front Brake	200 mm disc brake
Rear Brake	110 mm drum brake
Weight	114 kg
Top Speed	91 km/h
Transmission	Automatic CVT
Rear Suspension	Coil spring and hydraulic shock absorber
