- 53 -
ADJUST MOVEMENT PARAMETERS.

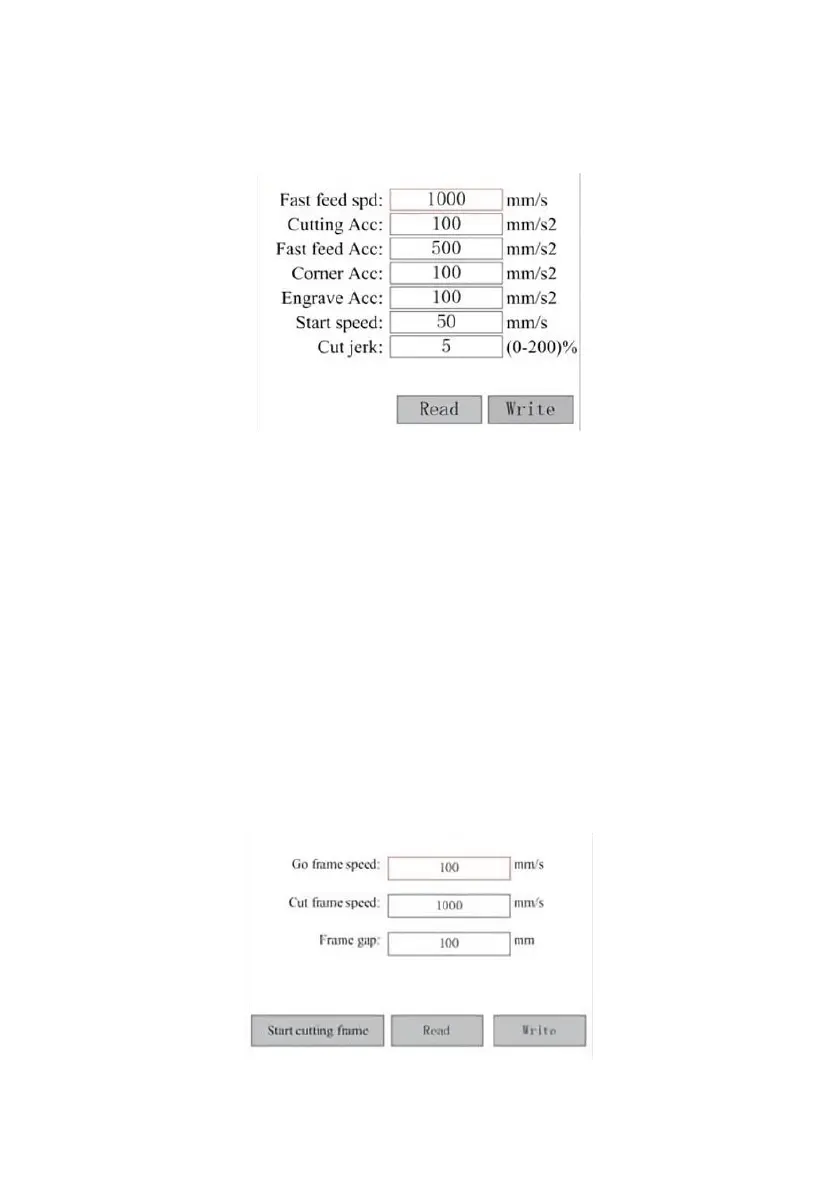

In the Parameter Settings submenu, select Move Parameters to display the
left interface:Select and adjust parameters by pressing the arrows.
When you're done adjusting, move the cursor to Write and press ENT to
save the parameter changes, or press ESC to exit without saving.
Reading can load saved parameters.
SET FRAME PARAMETERS.
In the Para Settings submenu, select Frame Settings to display the left
interface:Select and adjust parameters by pressing the arrows. When
you're done adjusting, move the cursor to Write and press ENT to save the
parameter changes, or press ESC to exit without saving. Reading can load
saved parameters. Start Cutting Frame will cut the frame according to the
current parameters.
