Vicon Extra 328 - Technical Specifications and Dimensions

About the machine
21
Technical data

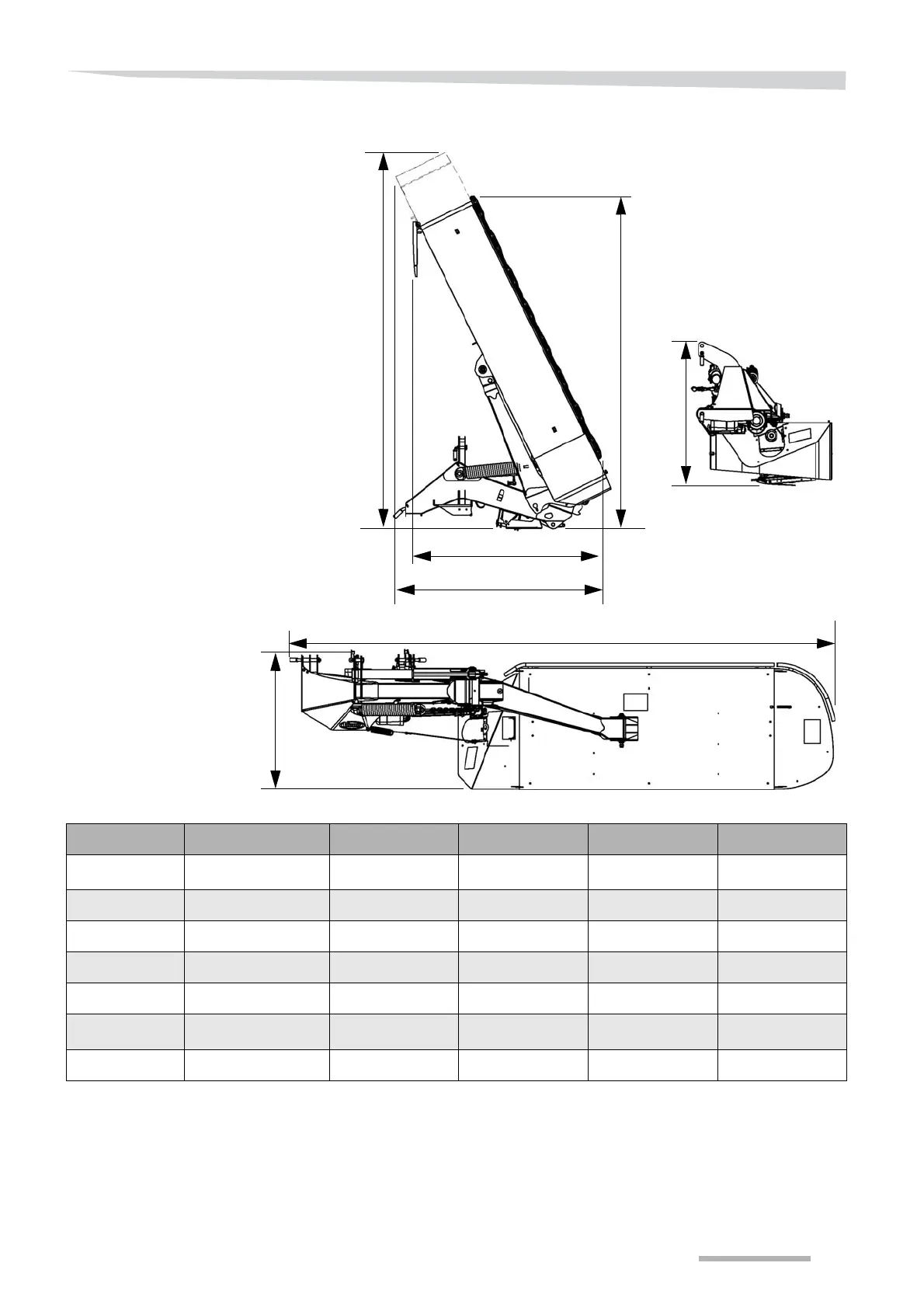

Machine dimensions

1
»Machine in transport position« page 35
2
Wide configuration. See »Changing the cutting width« page 23
A
B
C
G
F
D
E
Dim. Unit 328 332 336 340
A mm (’-’’)
2940 (9’ 8”)
1
3410 (11’ 2½”)
1
3800 (12’ 5½”)
1
3670 (12’ ½”)
1
B mm (’-’’) 2775 (9’ 1”) 3245 (10’ 8”) 3665 (12’ 1½”) 3670 (12’ ½”)
C mm (’-’’) 1825 (6’) 1825 (6’) 2100 (6’ 10½”) 2830 (9’ 3½”)
D mm (’-’’) 2025 (6’ 8”) 2025 (6’ 8”) 2330 (7’ 8”) 3130 (10’ 3”)
E mm (’-’’) 1420 (4’ 8”) 1420 (4’ 8”) 1420 (4’ 8”) 1420 (4’ 8”)
F mm (’-’’)
5000 (16’ 5”)
2
5335 (17’ 6”)
2
5700 (18’ 8”)
2
6100 (20’)
2
G mm (’-’’) 1335(4’ 4½”) 1335(4’ 4½”) 1335(4’ 4½”) 1335(4’ 4½”)
