Maintenance
109
Y-fingers on the rotor
Safety concerning maintenance work on the cutterbar
When working on the cutterbar, the tractor must be stopped and
secured.
This prevents the machine from suddenly starting to rotate.
If the tractor and the PTO shaft have not been connected according to
the instructions serious accidents resulting in torn off limbs can occur.
When working on the cutterbar:
• The tractor engine must be stopped.
• The ignition key must be removed.
• The PTO shaft must be disconnected.
• The tractor hydraulic system should be disconnected.
• The hand brake should be activated.
As required
»Maintenance intervals« page 72

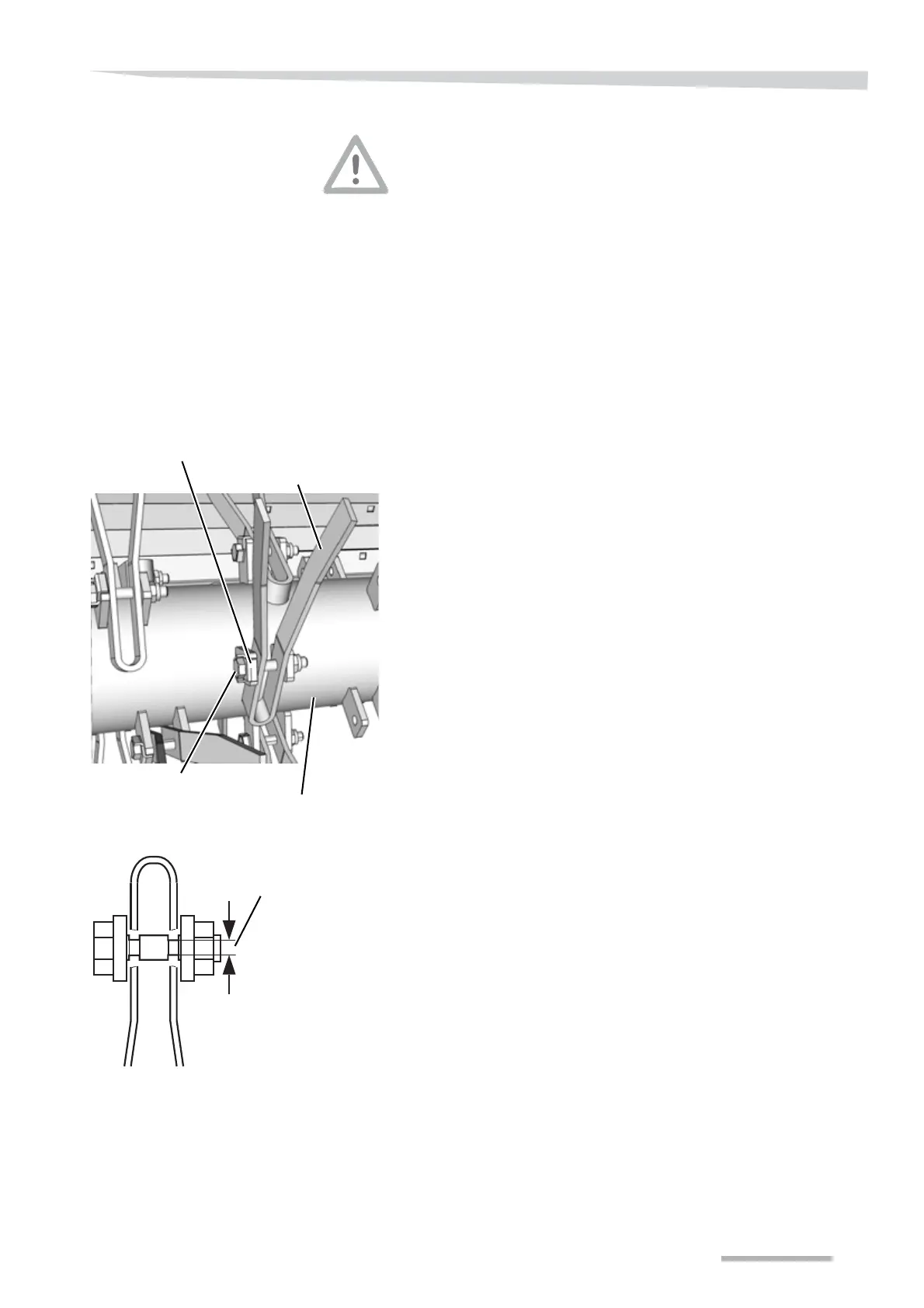

The Y-fingers are replaced as follows:
> Use a suitable tool and remove the bolt nut.
> Remove the bolt and the lock plate and replace the damaged Y-
finger.
> Inspect the bolt for wear.
NB
The minimum diameter of the bolt must not be less than 9 mm.
If the diameter of the bolt is less than 9 mm in the worn areas, it must
be replaced.
> Fit the bolt with the lock plate and Y-fingers.
> Tighten the bolt.
NB
• The Y-fingers should be able to move freely.
Lock plate
Rotor
Y-fingers
Bolt
