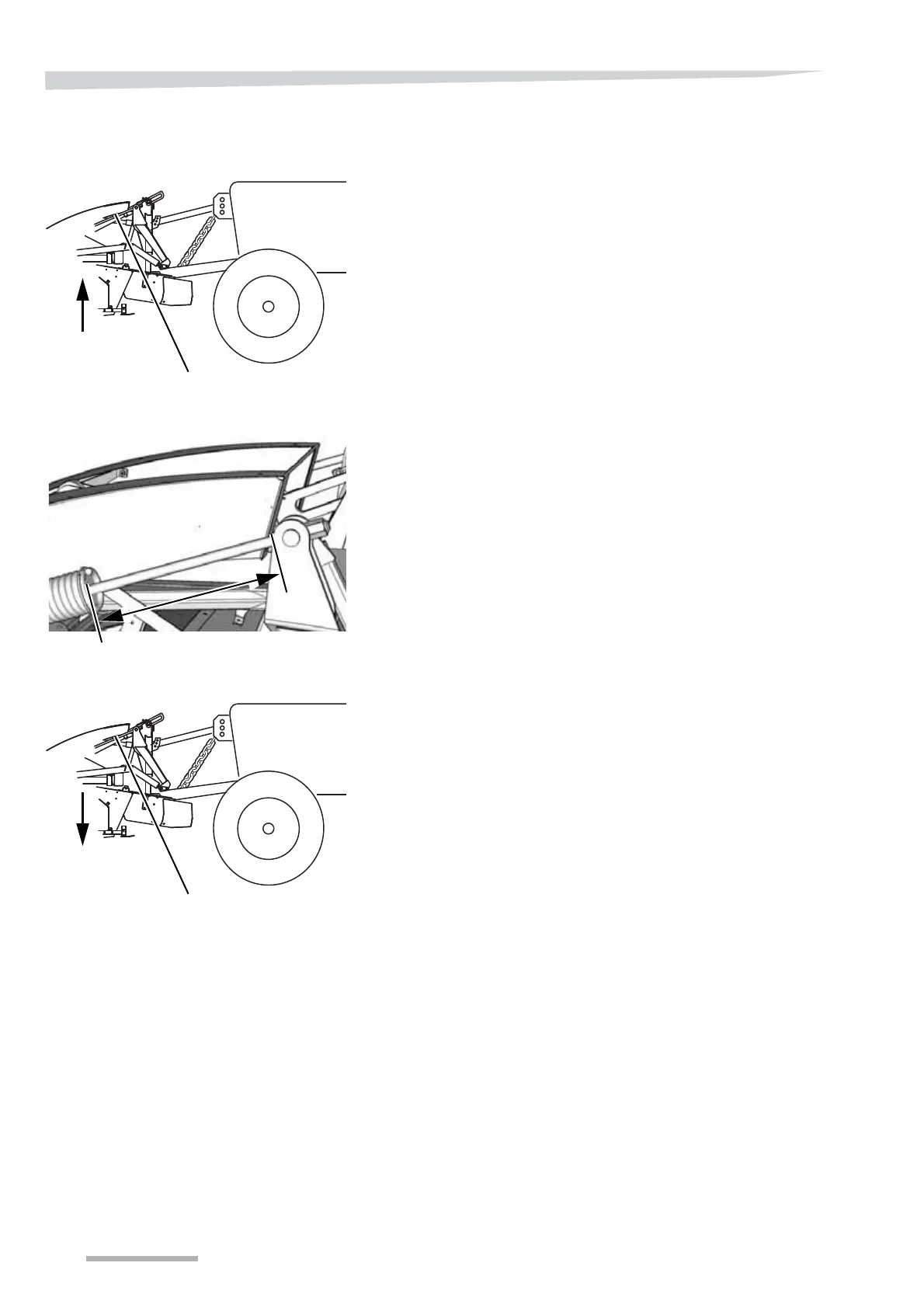

Assembly - attachment
Standard setting of the
suspension
> Raise the machine using the machine's hydraulic cylinder.
> Tighten the springs to the dimension shown.
> Lower the machine back down to the ground using the machine's
hydraulic cylinder.
Hydraulic cylinder
100 - 200 mm
Hydraulic cylinder
