Assembly - attachment
37
The suspension on the machine's cutting unit should be adjusted so
that the downward pressure on the machine's cutting unit is about 40-
60 kg.

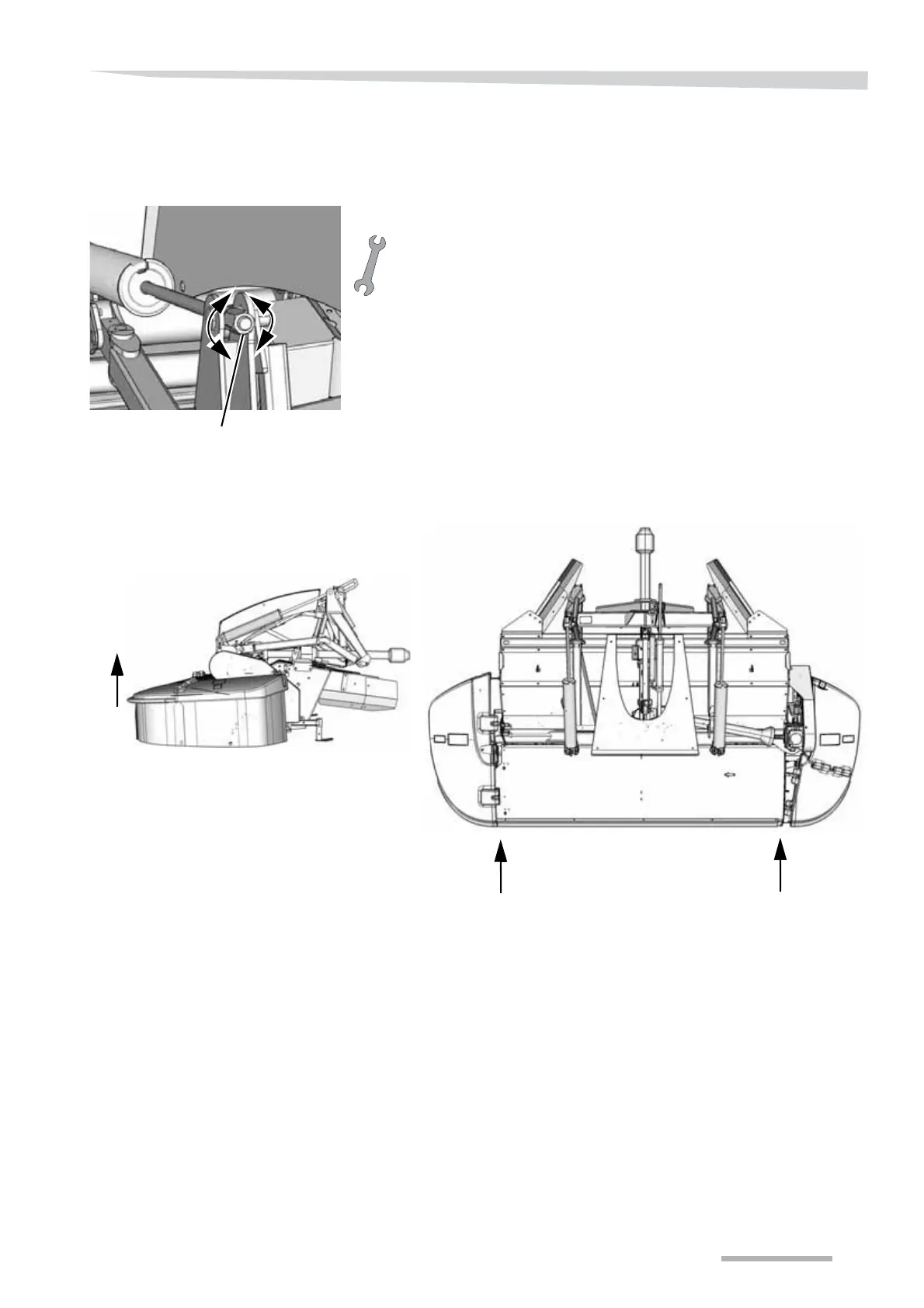

The cutting unit's suspension can be adjusted as follows:
> Use a suitable tool to screw the bolt indicated.
• When the bolt is screwed clockwise the cutting unit's downward
pressure decreases.
• When the bolt is screwed anticlockwise, the cutting unit's
downward pressure increases.
> Adjust the cutting unit's downward pressure for both springs.
> Check by lifting the cutting unit by hand, gripping both sides of the
cutting unit in the places shown.
T
IP
!
When checking the suspension, position yourself in front of the cutting
unit and lift the cutting unit up as shown.
T
IP
!
The weight on both sides of the cutting unit must be approximately 40-
60 kg when lifting by hand.
