Vicon EXTRA 632 FR - Page 31

Assembly - attachment
31
Attaching the
machine
Initial fitting of the
machine
> Both of the support legs on the machine must be fully lowered.
> Fit the A-frame on the tractor's front lift device and drive forwards
to the machine.
> Raise the A-frame so it locks into the machine.
NB Check that the A-frame's lock catch is activated.
> Lift both support legs and place them in the uppermost position.

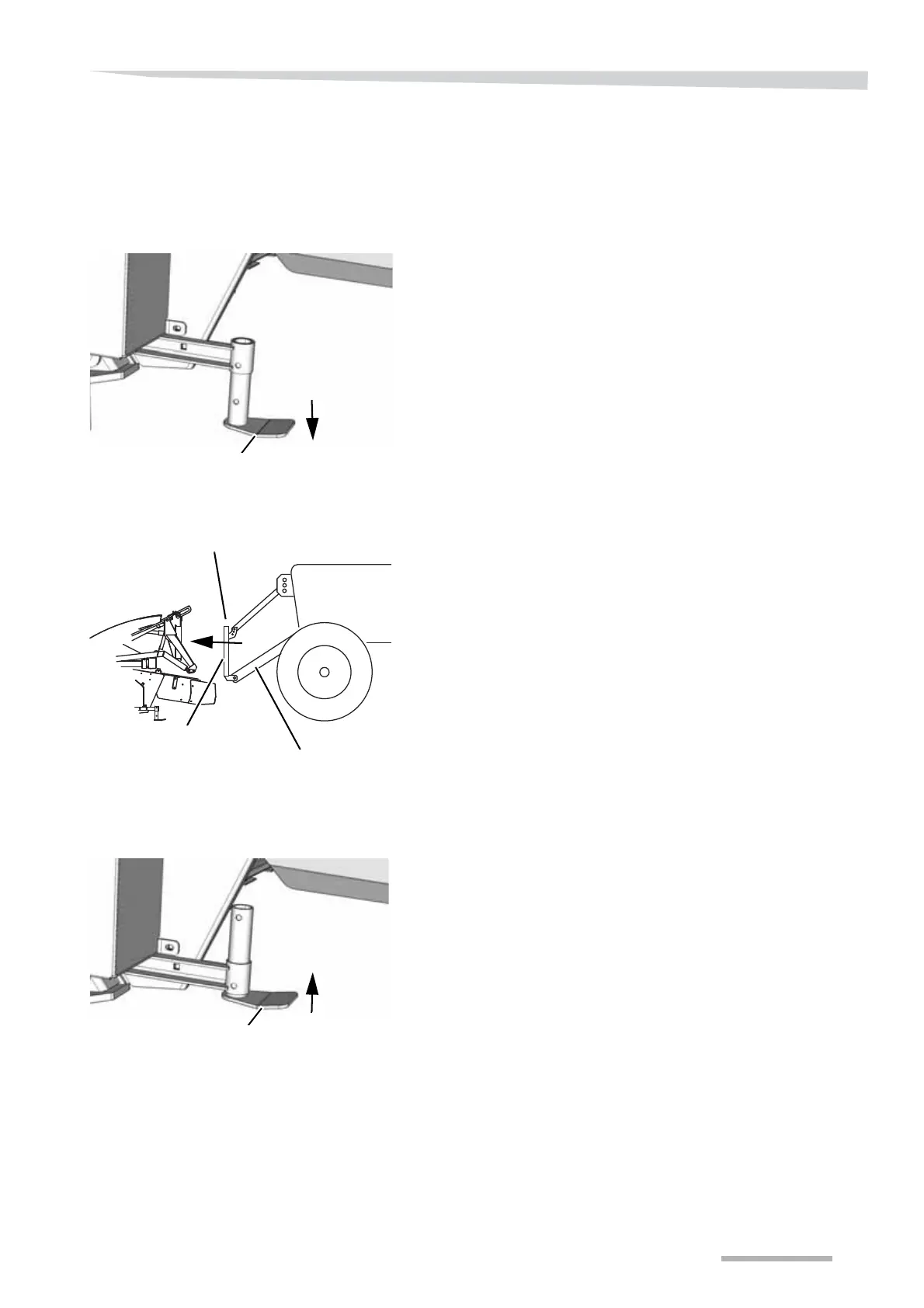

Support leg
Front lift device
A-frame
Lock catch
Support leg
