Maintenance
107

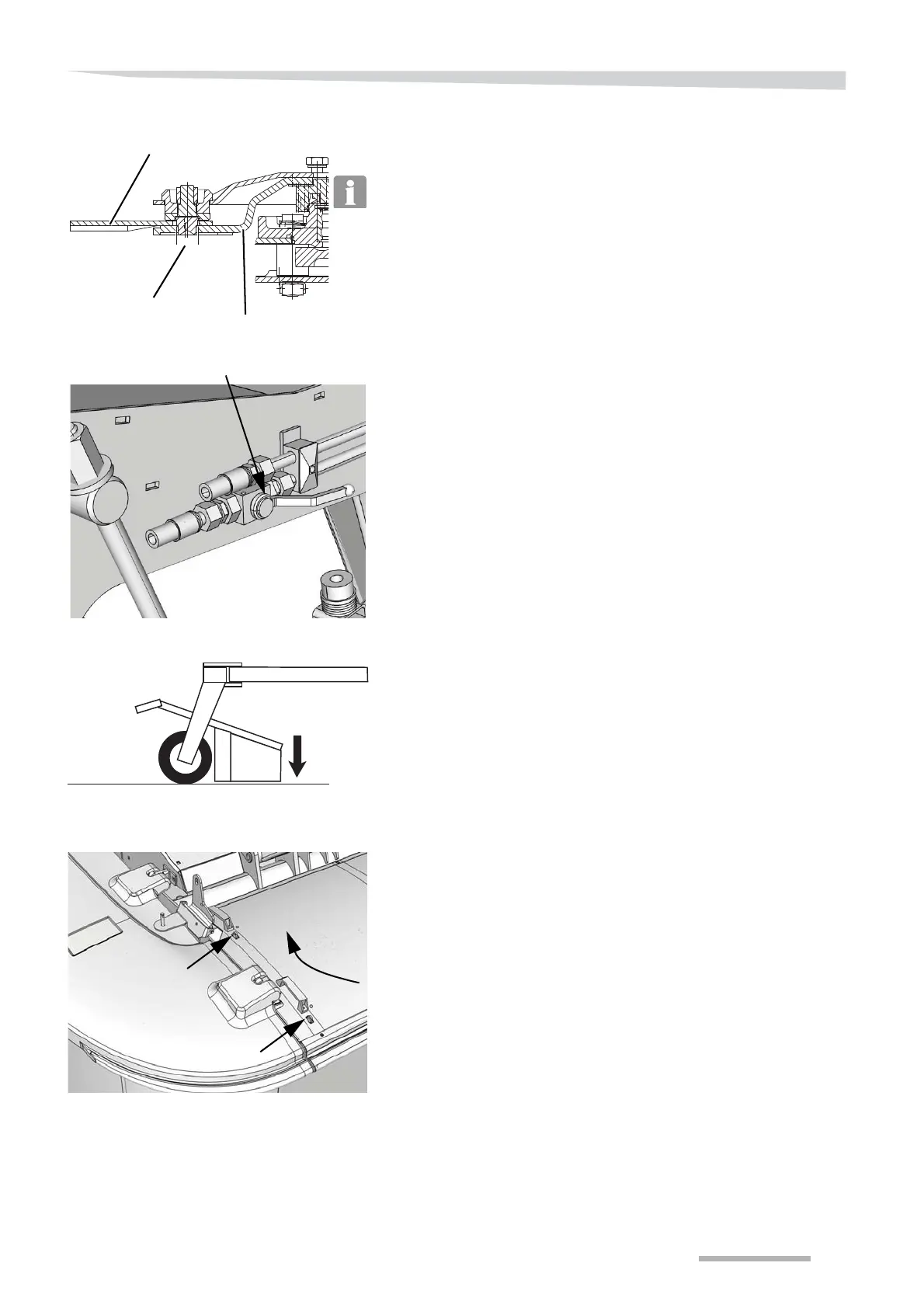

If the machine is fitted with knife quick release*, the same requirement
applies for bolt wear.
 »Knives« Page 146
* Extra equipment
 »Quick release of knives« Page 168
 Open the mechanical safety valve.
 Activate the tractor hydraulics and lower the cutting unit of the
machine.
 Close the front guard.
 Fit the linchpin.
Min. 16 mm (
5
/8”)
Spring
Knife
Valve
