Maintenance
135

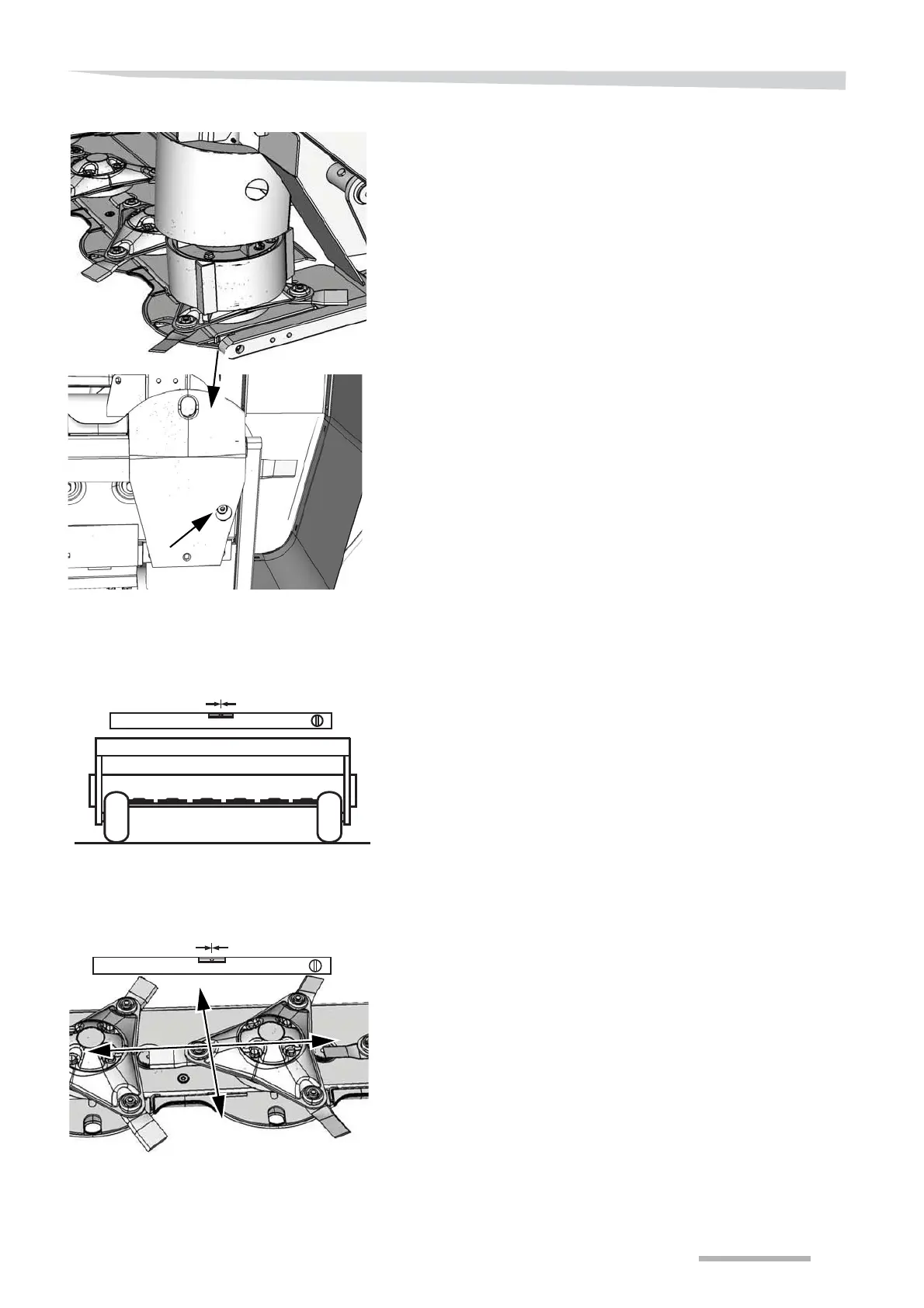

Locate the drain plug on the left side of the cutterbar and remove it.
Let the oil flow into a suitable container.
Allow the last of the oil to drip out of the cutterbar for approx. 10 -
15 minutes.
Fit the drain plug into the cutterbar and tighten it fully.
Filling up with new oil
Place the machine on a level surface.
Check that the cutterbar is horizontal in the direction shown using
a spirit level or similar tool.
Position of the cutterbar when filling with oil:
See page96
!
!
