Operation
67
Deflector plates
The machine is fitted with 2 deflector plates, making it possible to
adjust the cutting swath to suit the following chopper.
The cutting swath should be as broad and even as possible.

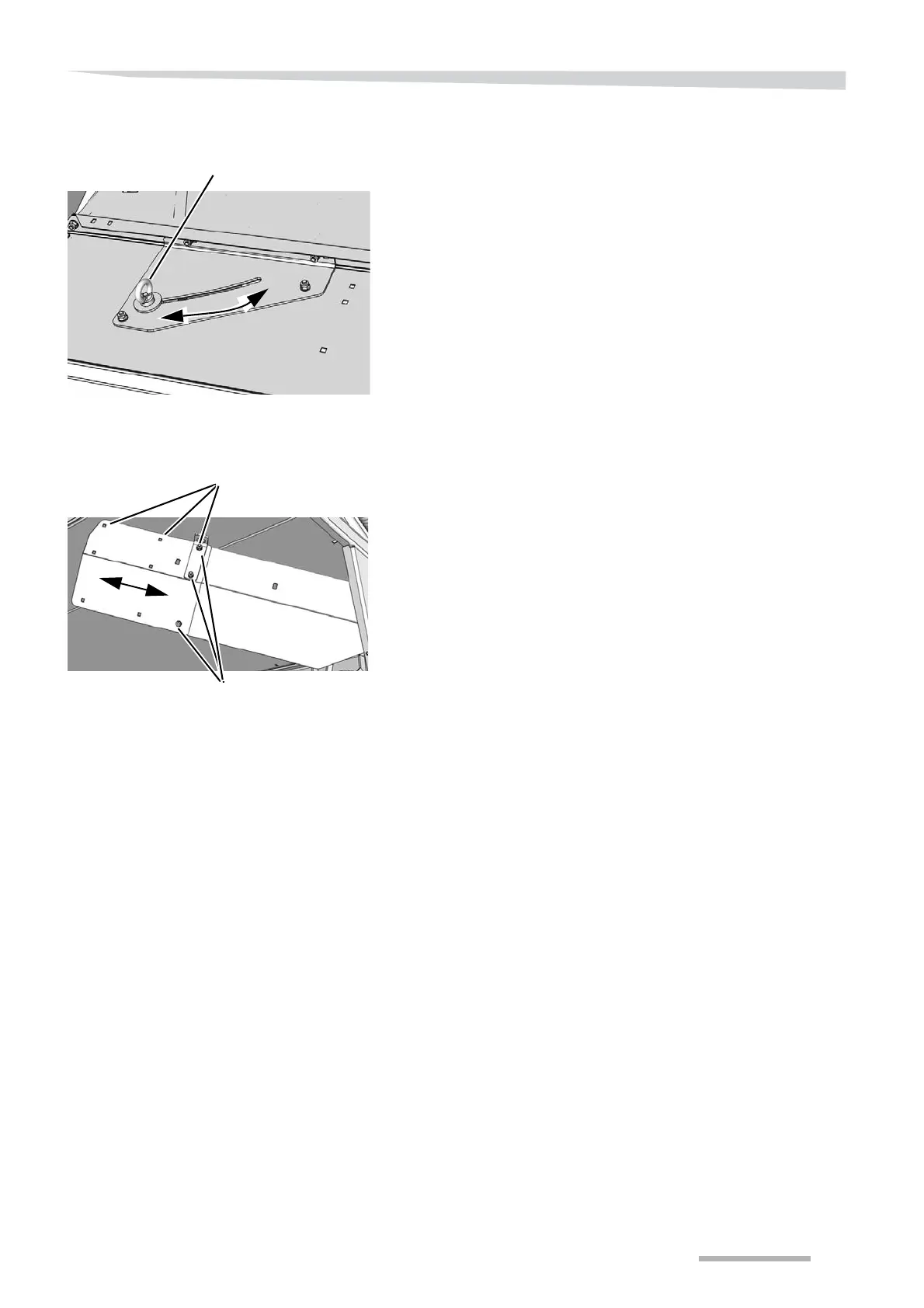

Use a suitable tool and loosen the ring nut.
Adjust the deflector plates to the desired cutting swath.
Tighten the ring nut on the deflector plates.
To ensure that the swath is gathered in the best possible way, it is
recommended that the deflector plates are extended to as close to the
end plates as possible.
The deflector plates have 3 setting options.
The length of the deflector plates is set as follows:
Remove the bolts shown and move the plates to the required
length.
Fit the bolts and tighten them.
