UniOP
32
MKDG-06

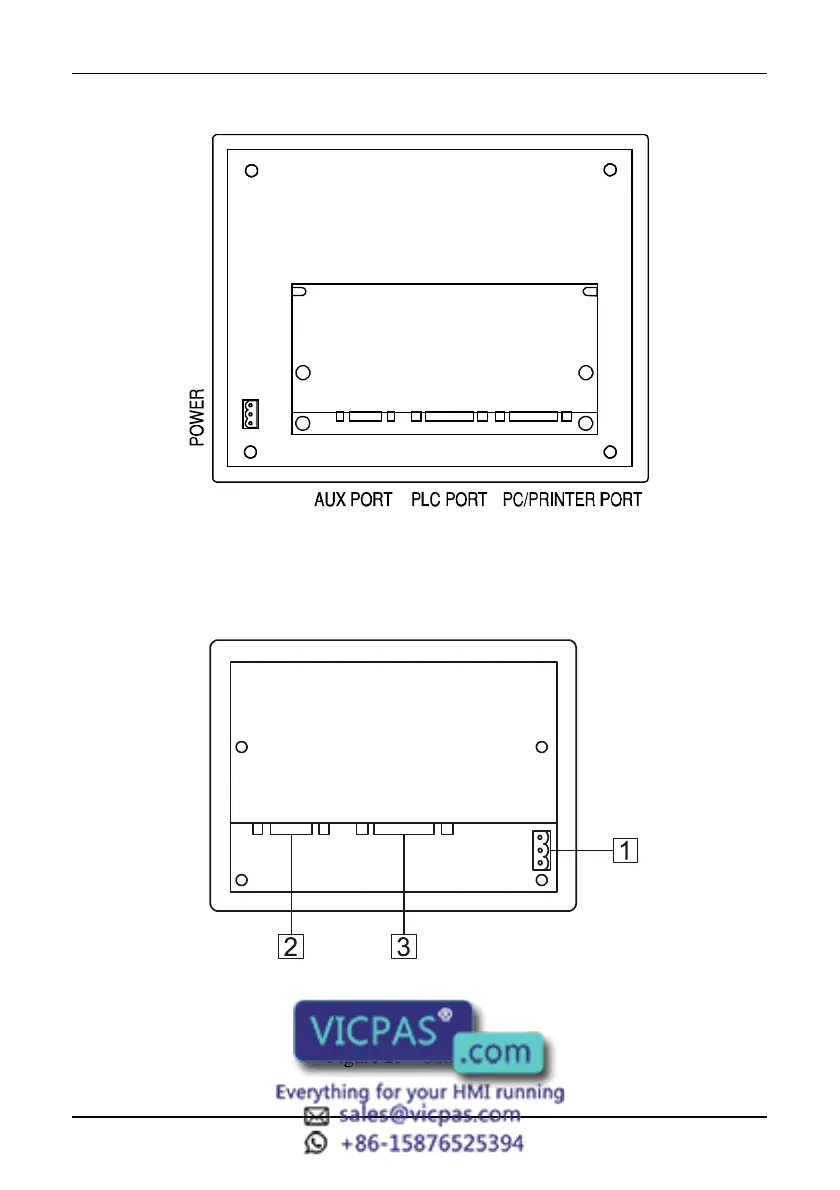

Figure 24 - Connectors
ePAD03, ePAD04, ePAD05, ePAD06
1. Power
2. Aux Port
3. PLC Port
Figure 25 - Connectors
