Vicpas UniOP ePAD05 - AUX Port

Installation Guide
43

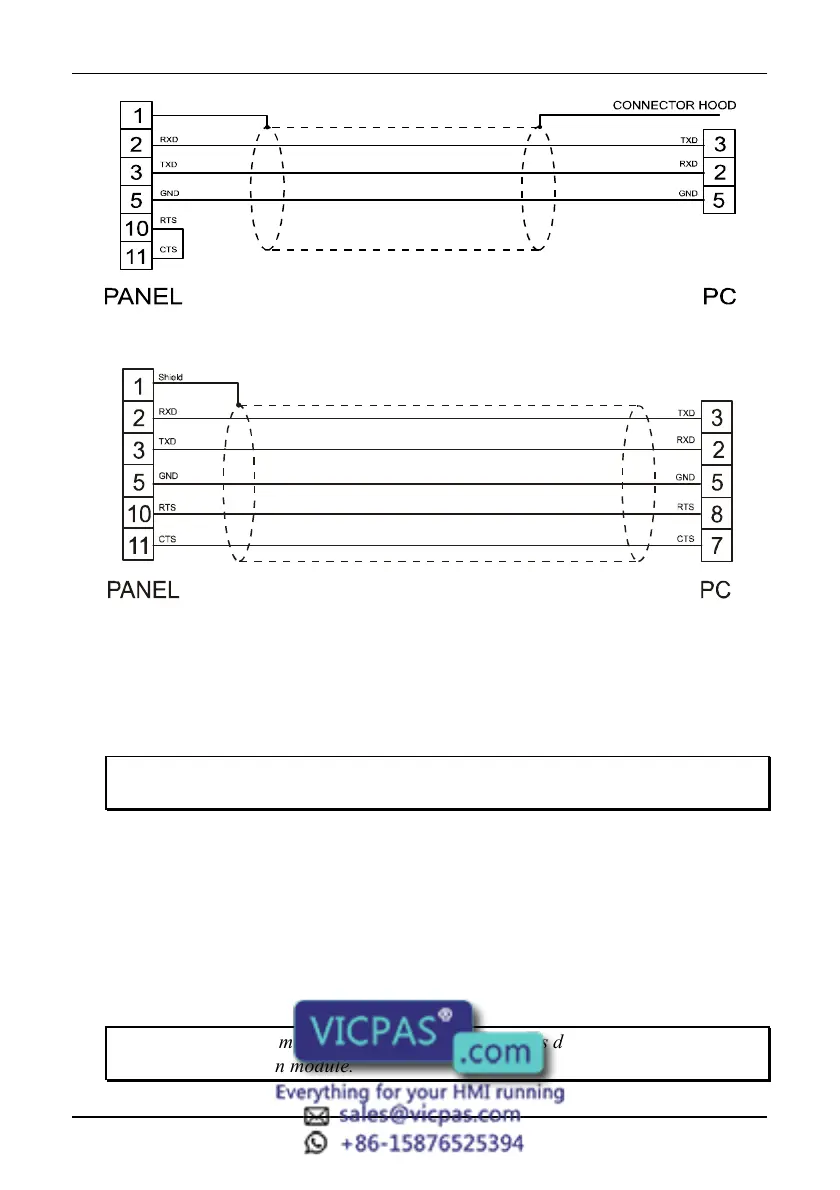

Figure 39 - Programming cable CA2
Figure 40 - Programming cable CA114
When the panel is in Operation Mode and is not as a UniNET Server, you can attach a
serial printer to the PC/Printer Port. The communication parameters for the printer are
defined by the application program (project file)
Note: the communication cable to the printer depends on the communication
interface of the printer.
AUX Port
The AUX Port is a communication port specially designed for industrial network
communication. The AUX Port connector is a 9 pin D sub type. The functionality of
the AUX Port depends on the optional communication module which is plugged into
the unit.
Note: The pin assignment of the Aux Port connector is described in the manual
of the communication module.
