Applying the two linear gaskets:
Thin strip:
• The gasket should be applied around the cutout prepared for the panel
• The gasket should be applied starting from the middle of the lower side being
careful not to place it under tension
• The two ends of the gasket should meet without overlap
• The gasket should be replaced every time that the panel is dismounted and
remounted in its place
Large strip:
• The gasket should be applied on the operator panel just behind the bezel
• The gasket should be applied starting from the 1/3 of the lower side being careful
not to place it under tension
• The two ends of the gasket should meet without overlap
• The gasket should be replaced every time that the panel is dismounted and
remounted in its place
CUT-OUT
THIN STRIP
LARGE STRIP
1/2

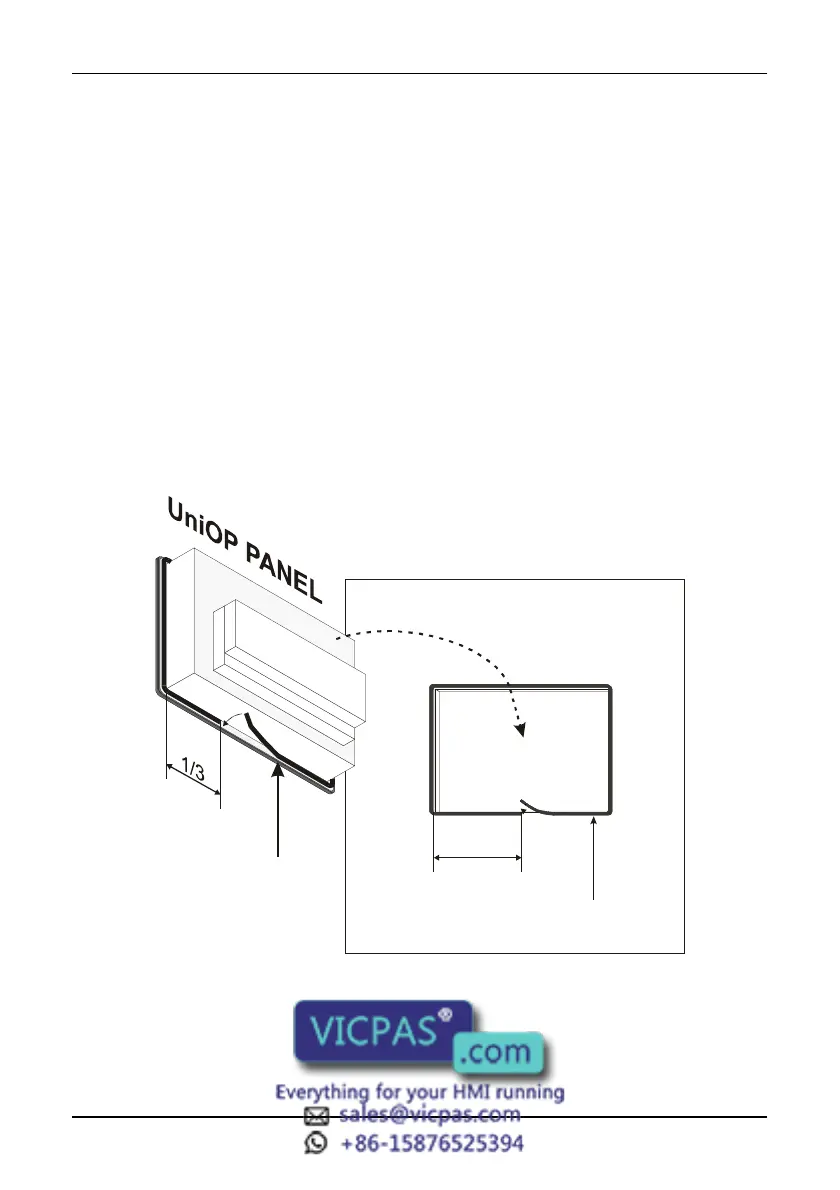

Figure 44 - panel with linear gaskets installation
