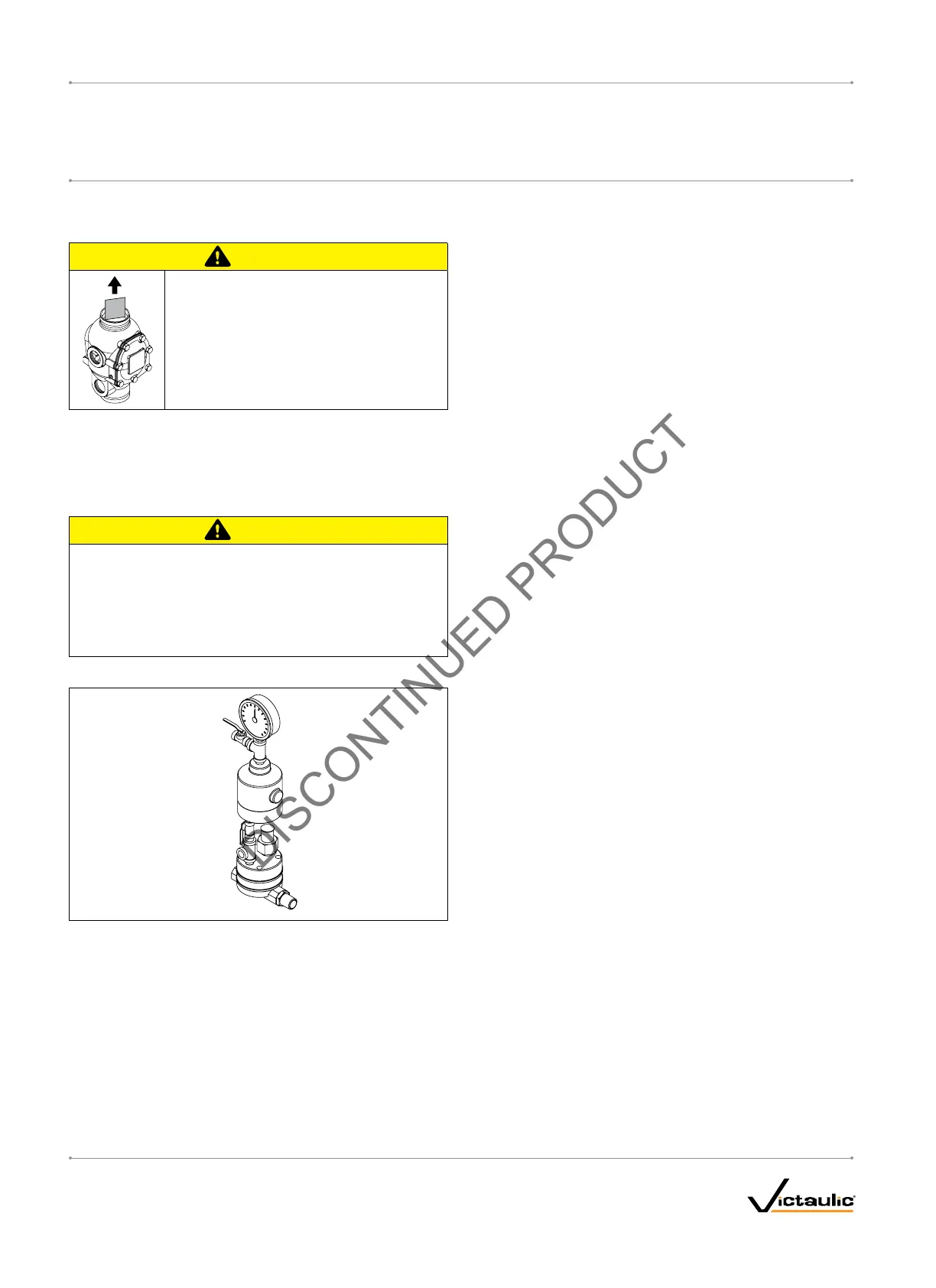

VALVE/TRIM INSTALLATION
1. Make sure the trim drawing matches the system’s requirements.
CAUTION
Make sure the foam spacer is removed from
inside the valve body before attempting to
install the valve.
Failure to follow this instruction could cause
improper valve operation, resulting in personal
injury and/or property damage.
•
2. Remove all plastic caps and foam spacers from the valve.
3. Apply a small amount of pipe joint compound or Teflon* tape to
the external threads of all threaded pipe connections. DO NOT get
any tape, compound, or other foreign material into the valve body,
pipe nipples, or valve openings.
CAUTION
Make sure no foreign material gets into the valve body, pipe
nipples, or valve openings.
If using any material other than Teflon tape, use extra caution
so that no material gets into the trim.
Failure to follow these instructions could cause improper valve
operation, resulting in personal injury and/or property damage.
•
•
4. Install the valve, trim, and accessories per the trim drawing.
5. FOR VALVES INSTALLED WITH A SERIES 746-LPA DRY
ACCELERATOR: Make sure the Series 746-LPA Dry Accelerator
is installed on the Series 776 Low-Pressure Actuator, as shown in
the drawing above. The end with the vent seal "button" must be
installed facing toward the Series 776 Low-Pressure Actuator.
6. Supply pressure to the piston charge line by providing an uninter-
rupted source of water from upstream of the main control valve.
* TEFLON IS A REGISTERED TRADEMARK OF THE DUPONT COMPANY
HYDROSTATIC TESTING
The Victaulic Series 756 European Dry Valve is manufactured and
listed for a maximum working pressure of 16 Bar and is factory tested to
41 Bar. The station can by hydrostatically tested to 14 Bar and/or 3.5 Bar
above the normal water supply pressure (2-hour limited time period) for
acceptance by the authority having jurisdiction.
I-756LPA.VDS_10
FireLock
®
European Dry Valve Stations
SERIES 756
WITH SERIES 776 LOW-PRESSURE ACTUATOR
I-756LPA.VDS
INSTALLATION, MAINTENANCE, AND TESTING MANUAL
www.victaulic.com
VICTAULIC IS A REGISTERED TRADEMARK OF VICTAULIC COMPANY. © 2006 VICTAULIC COMPANY. ALL RIGHTS RESERVED. PRINTED IN THE USA.
REV_B
