150
F
3
4
WATER MOTOR
ALARM
SERIES 760
LISTED
Optional Air
Maintenance
Device
To Drip
Cup
Locked in
Open Postion
Locked in
Open Position
Locked in
Open Position
To Drain
Water
Supply
To Drip
Cup
Normally
Closed
To System
Optional
To Drain
To Drain
To Drain
Optional
21
6
11
15
19
25
10
26
12
18
16
14
8
5
9
6
6
7
1
4
20
2
3
13
2
3
23
17
28
27
24
22

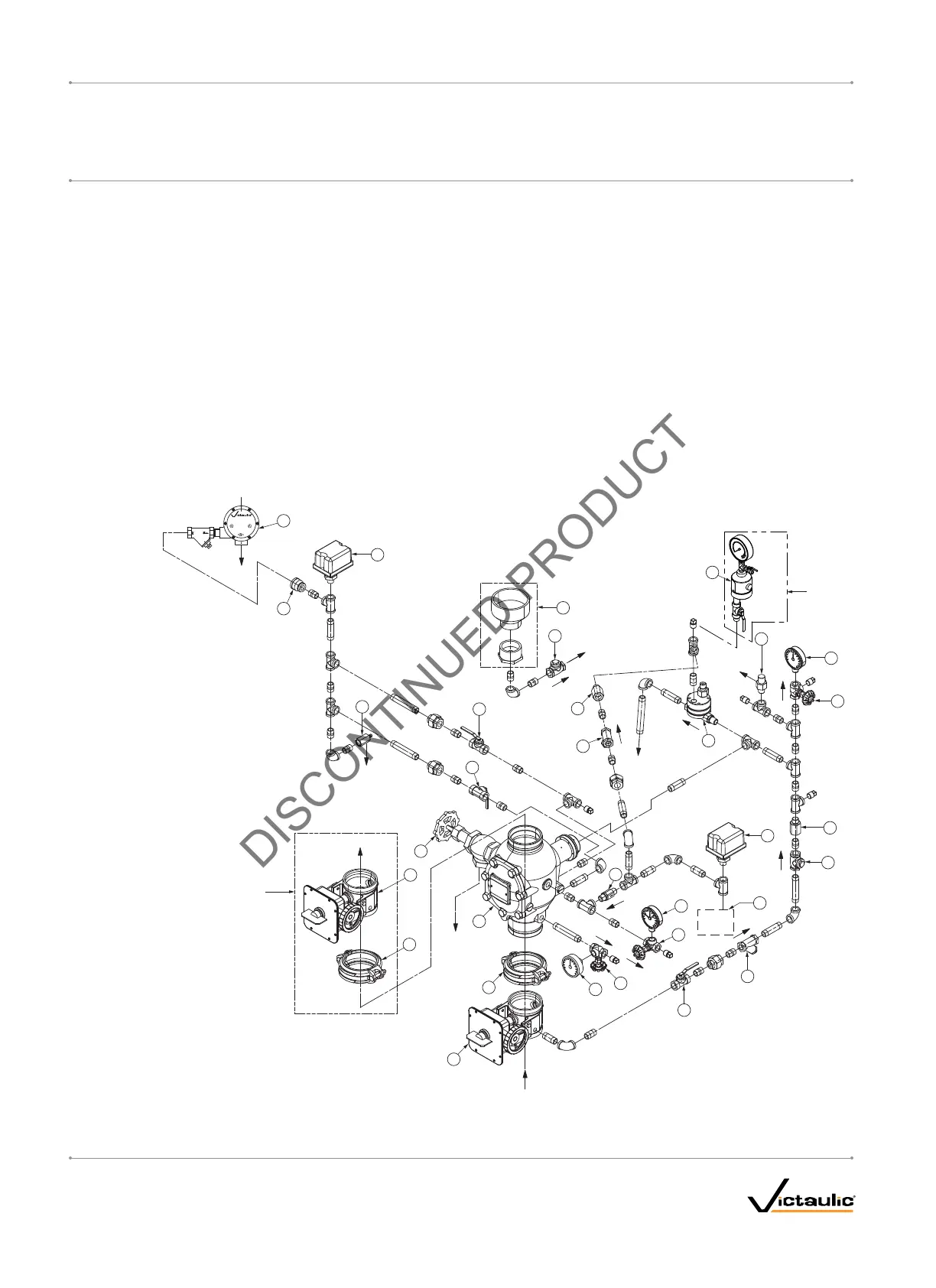

Bill of Materials
1 Series 756 FireLock European Dry System Valve 15 Drip Cup (Supplied by Installer)
2 FireLock Butterfly Valve with Tap
16
Alarm Line Ball Valve
3 FireLock Rigid Coupling (Lockable - Normally Open)
4 System Main Drain Valve 17 Alarm Test Ball Valve (Normally Closed)
5 Water Supply Pressure Gauge (0-25 Bar) 18 Restricted Orifice/Alarm Line Drain
6 Gauge Valve 19 EPS-10 Alarm Pressure Switch
7 System Pressure Gauge with Mark Pointers 20 Reducer (1.3 x 1.9 cm))
(0-16 Bar)
21
Series 760 Water Motor Alarm with 19-mm
8 Piston-Charge-Line Ball Valve 100-Mesh Strainer (Optional)
(Lockable - Normally Open)
22
Union
9 Piston-Charge-Line Strainer (100 Mesh) 23 Series 748 Ball Check Valve
10 Piston-Charge-Line Check Valve 24 Restrictor
11 Piston-Charge-Line Pressure Gauge (0-25 Bar) 25 Piston-Charge-Line Restrictor (0.2 cm)
12 Series 749 Auto Drain 26 EPS-40 Low-Air Pressure Switch
13 Series 776 Low-Pressure Actuator
27
Series 757 Air Maintenance Trim Assembly
14 Drain Check Valve (AMTA) (Optional)
28
Series 746-LPA Dry Accelerator (Optional)
To Next Page
