Victron energy BlueSolar PWM Series User Manual

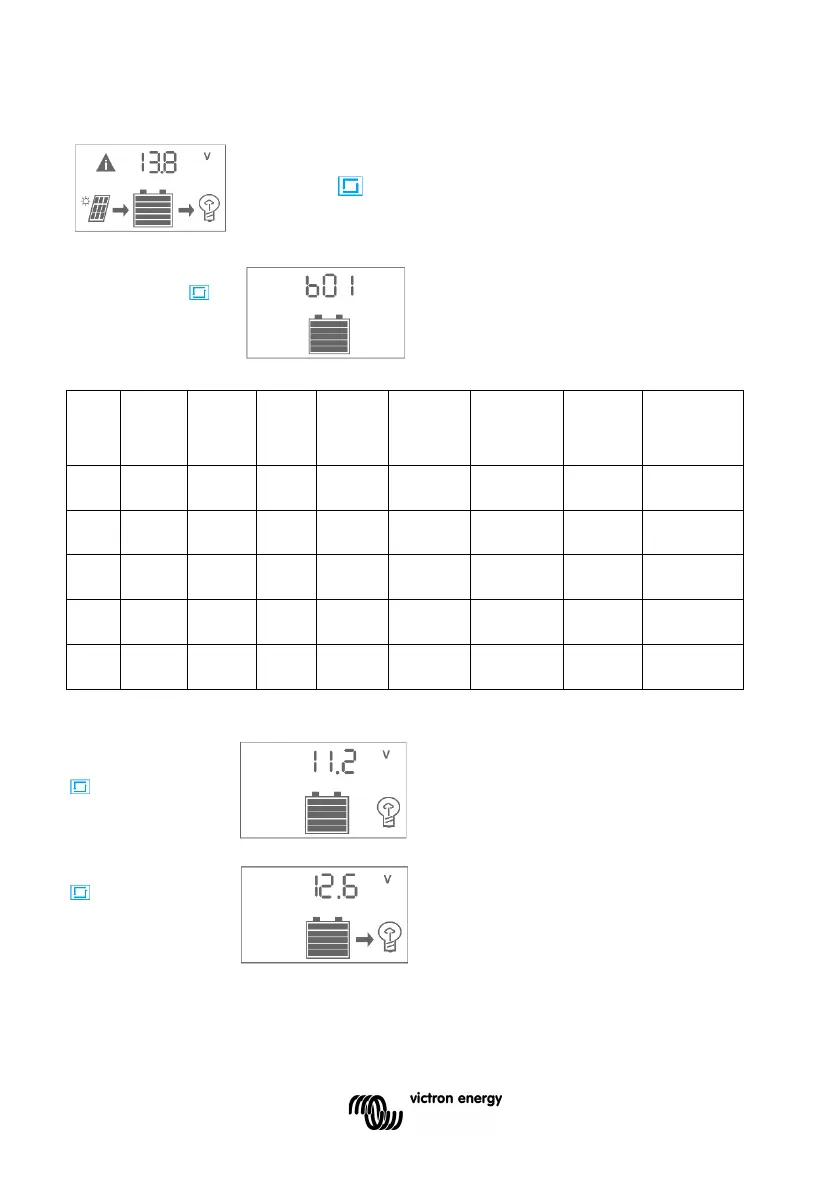

Main display: battery voltage, battery state of charge, charging
and discharging status.
Press MENU to enter next display.
Change settings in
Main display.
Press the MENU
button for several
seconds until the
display flashes, you
are in:
Battery type setting.
See table below.
The factory setting is b01
*The controllers do not have a remote on/off input. Therefore use LiFePO4 batteries with integrated BMS only
(such as the Victron SuperPack batteries)
Press on the MENU
key again and you
are in:
Low voltage disconnect
The factory setting is 11.2V [22.4V]
Press on the MENU
key again and you
are in:
Low voltage reconnect
The factory setting is 12.6V [25.2V]
Battery
type
Battery
voltage
Absorb
tion
voltage
Float
voltage
Low voltage
disconnect
factory
setting
Low voltage
disconnect
range
Low
voltage
reconnect
factory
setting
Low voltage
reconnect
range
b01
LEAD-
ACID
[AGM]
12.0V
[24V]
14.4V
[28.8V]
13.7V
[27.4V]
11.2V
[22.4V]
10.5V-12.0V
in steps of
0.1V
12.6V
[25.2V]
12.0V-13.5V in
steps of 0.1V
b02
LEAD-
ACID
[Gel]
12.0V
[24V]
14.2V
[28.4V]
13.7V
[27.4V]
11.2V
[22.4V]
10.5V-12.0V
in steps of
0.1V
12.6V
[25.2V]
12.0V-13.5V in
steps of 0.1V
b03
LEAD-
ACID
[Wet]
12.0V
[24V]
14.6V
[29.2V]
13.7V
[27.4V]
11.2V
[22.4V]
10.5V-12.0V
in steps of
0.1V
12.6V
[25.2V]
12.0V-13.5V in
steps of 0.1V
b04
12V
LiFePO4*
12.8V 14.2V 13.35V 11.2V
10.5V-12.0V
in steps of
0.1V
12.6V
12.0V-13.5V in
steps of 0.1V
b05
24V
LiFePO4*
25.6V 28.4V 26.7V 22.4V
21.0V-24.0V
in steps of
0.1V
25.2V
24.0V-27.0V in
steps of 0.1V
