Specifications
Mechanics
Pan 0-330° horizontal plane movement
Speed 6° per second
Torque 6 Nm at specified voltage
Tilt 0-360° vertical plane movement
Speed 3° per second
Torque 6 Nm at specified voltage
Maximum load 12 Kg (26 lb) (balanced)
Protection IP 66
Potentiometer 5kOhm, multiple rotation (10 turns, max 1 million shaft rotations) - (only for PTH310P / PTH311P)
General
Construction Aluminium die-cast
Finish RAL9002 epoxy coat
Mounting pos. normal/reverse
Temperature from -23°C to +60°C (from -10°F to 140°F)
Dimensions 180x166x145 mm (
Weight 3,5 Kg (8 lb)
Cable diameter 10 mm
EAC certification
Electric features
Power Supply PTH310 / PTH310P 230 V~ 50/60 Hz 7+7 W
PTH311 / PTH311P 24 V~ 50/60 Hz 7+7 W
Wiring 7 cables 0.56mm.² (AWG 20) (Functions: left, right, up, down, common, autopan and earth).
4 cables 0.34mm.² (AWG 22) (Preset)

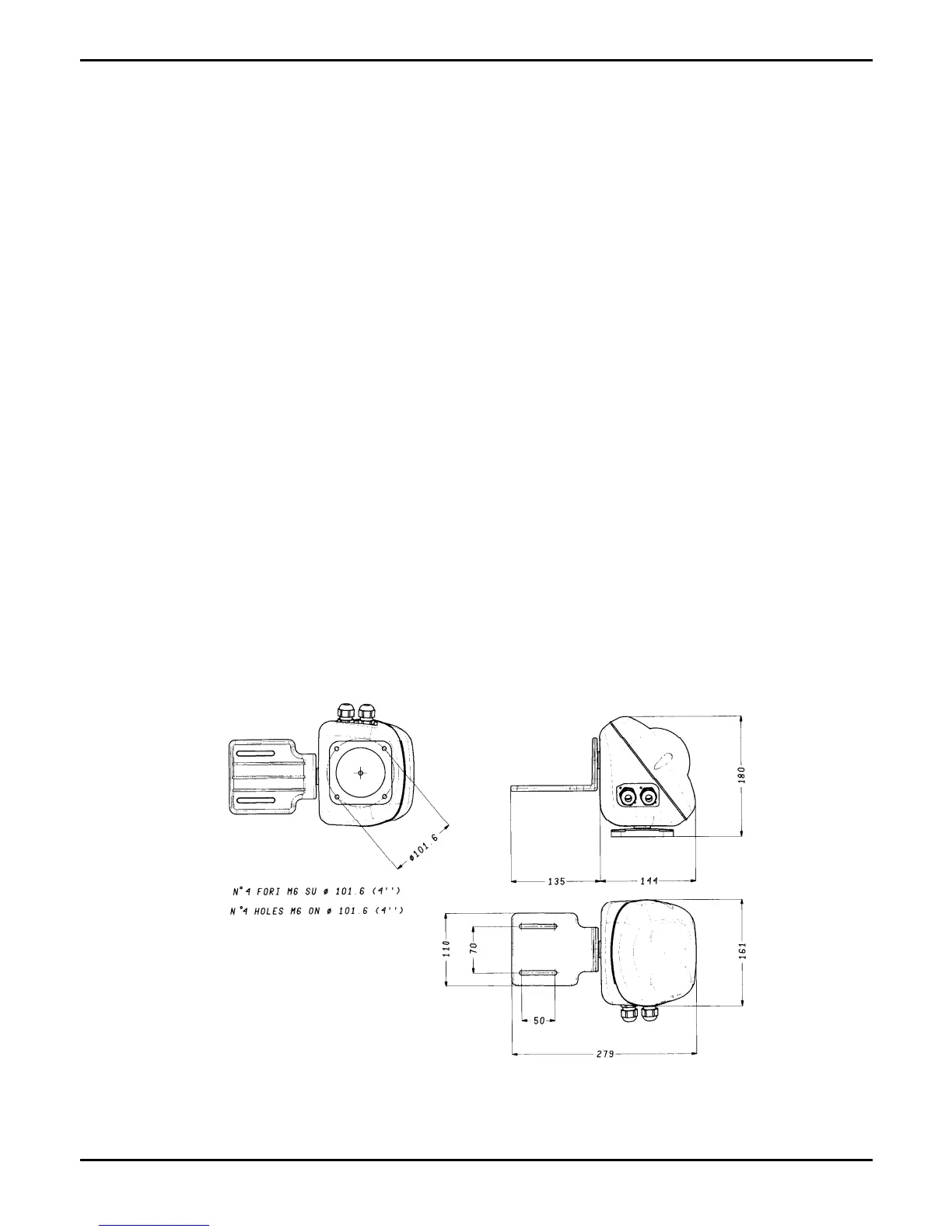

Dimensions
