66250203 - V4.4 - 15/05/22
- 13 -
4000 Series Vandal Resistant Range
Art.4212 - Installation instructions

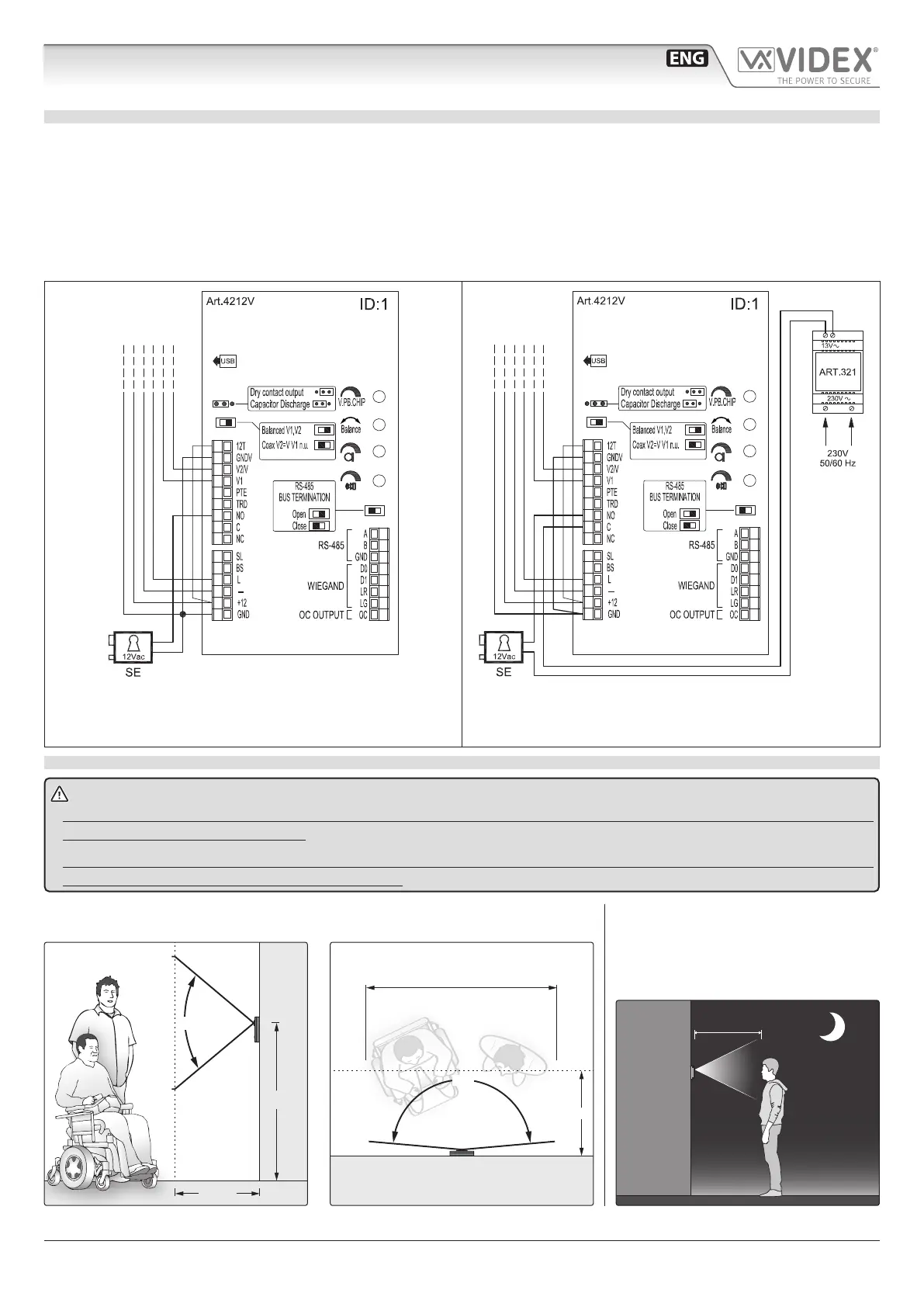

HOW TO CONNECT ELECTRIC LOCK
The “door-open” relay can operate either as “dry contact” or “capacitive discharge” mode.
• In “dry contact” operation mode the relay works in a traditional way, a power supply or a power source is needed to operate the
lock (12-24Vac/dc 2A max), and activation lasts according to the door opening time programmed.
• In “capacitive discharge” operation mode the relay’s contacts, when active, supply directly the lock (12Vac/dc 1A max) for a mo-
ment. You don’t need a power supply for the lock and the door opening time programmed do not aect the activation time.
A possibile deterioration of the mechanical performance of the electric lock, might cause the “capacitive discharge” malfunctioning
in time. In case the electric lock is used in very dusty environments or in peculiar climate conditions, we suggest to use the “open
door” relay in “dry contacts” mode.
12Vac/dc 1A Max
Fig. 11 Using capacitive discharge
12Vac 1.6A Max using Art.321
24Vac/dc 2A Max using other power supplies
Fig. 12 Using separate P.S.U.
CAMERA NOTES
PRECAUTIONS ON THE CAMERA
• Please note that OPENING THE MODULE WILL INVALIDATE THE WARRANTY. In addition, any dust ingress could
COMPROMISE THE IMAGE QUALITY.
• REMOVE THE PROTECTIVE FILM ONLY AFTER INSTALLATION AND SUCCESSFUL TESTING HAS TAKEN PLACE to avoid
scratches that could AFFECT THE IMAGE QUALITY.
MAXIMUM ILLUMINATION DISTANCE
FROM CAMERA AT NIGHT
The illumination LED’s within the camera
will illuminate the visitor when they are
within 50cm of the camera.
FIELDS OF VIEW
The elds of view is 80° for vertical angle and 170° for horizontal angle.
195 cm
80°
75 cm
135 cm
70 cm
Vertical
angle
Horizontal angle
