VX2300 Digital System - “2 Wire” Audio/Video Door Entry System
VX2300 Digital System - Installation handbook
Art.4330N Camera module specic for VX2300 Digital System
A
B

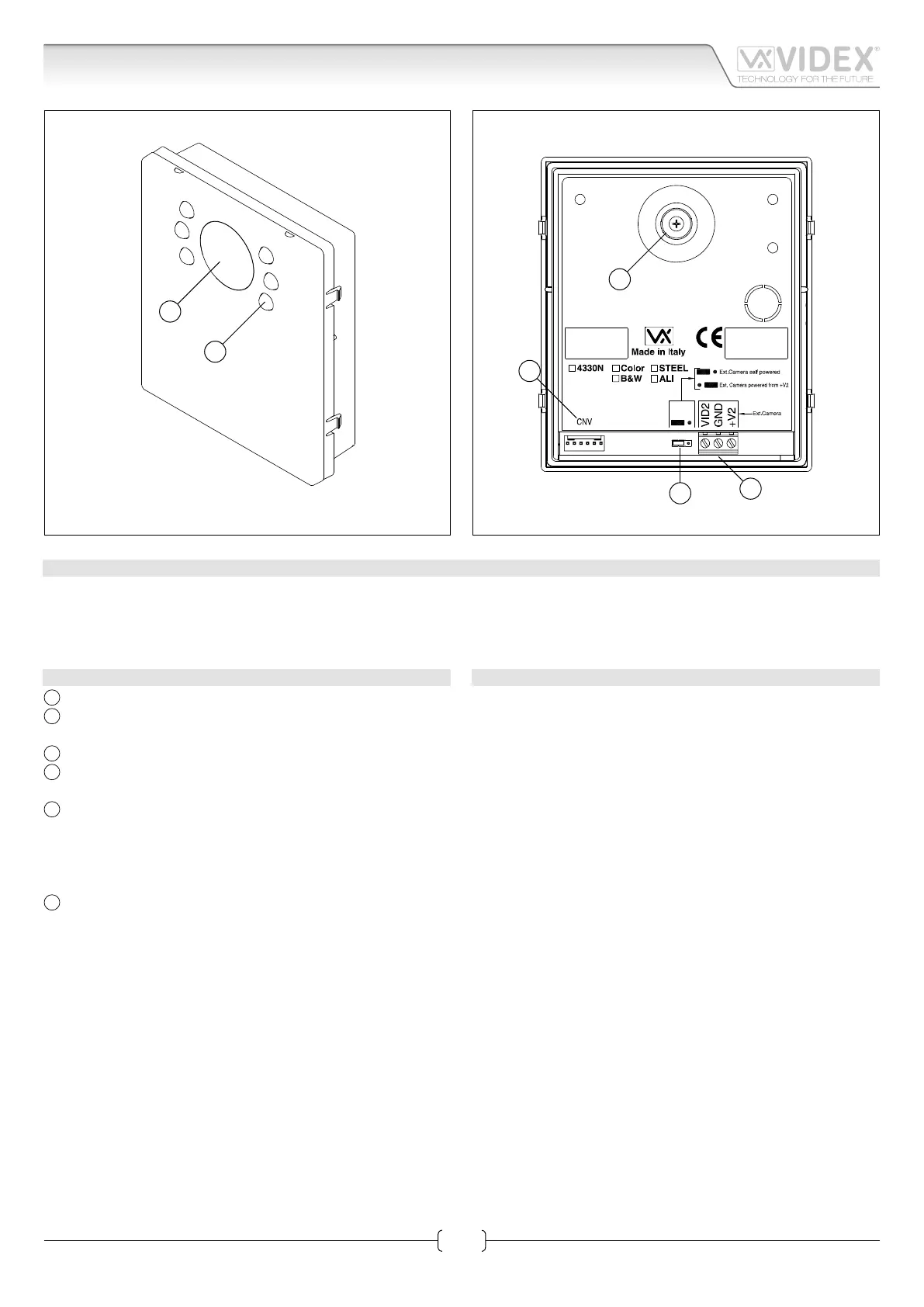

Fig. 1
C
E
F
D
Fig. 2
DESCRIPTION
This module is equipped with a CCD camera with auto iris lens complete with LED’s for illumination . The module is available in black
and white or colour version (put “/color” after the product code). The illumination LED’s are infrared for B&W cameras and white light
for colour cameras. The camera has horizontal and vertical adjustment (10 degrees). The module has a coax video signal input for an
external additional camera (switched from the videophone or video monitor) with a facility to power the external camera directly.
MODULE DETALIS:
A
Camera window;
B
Illumination LEDs (white light or infrared depending on
camera type);
C
Camera horizontal and vertical adjustment;
D
CNV connector to link between the camera and the
Art.4303N using the supplied cable;
E
External camera power supply setup jumper:
• In left position (factory preset) the external camera is pow-
ered from an external power supply
• In right position, the external camera is powered from the
terminal +V2 (12Vdc) & GND
F
External camera connections:
• VID2 Video signal input (Coax centre core);
• GND Video signal ground (Coax screen and 0V to camera);
• +V2 12Vdc 150mA max output to supply the external
camera if necessary.
TECHNICAL SPECIFICATION
Housing/Mounting: One 4000 Series Module / 4000 Series
Modular System
Push Buttons: N/A
Programming: N/A
Controls: Camera orientation adjustment
Front plate nishes: Mirror stainless steel (standard),
Anodized Aluminium (add /a after the
product code) or High Brass (add /HB)
Power Supply: Supplied by the relevant speaker unit
module
Power consumption: Stand-by: 30mA
Operating: 126mA
Working Temperature: -10 +50 °C
