Carousel Mate - Service Manual
Page 14
CarouselMate_sm-1300-01-Oct2014
Service: 1-866-821-2647
Oce: 1-800-210-0141
www.storevertical.com

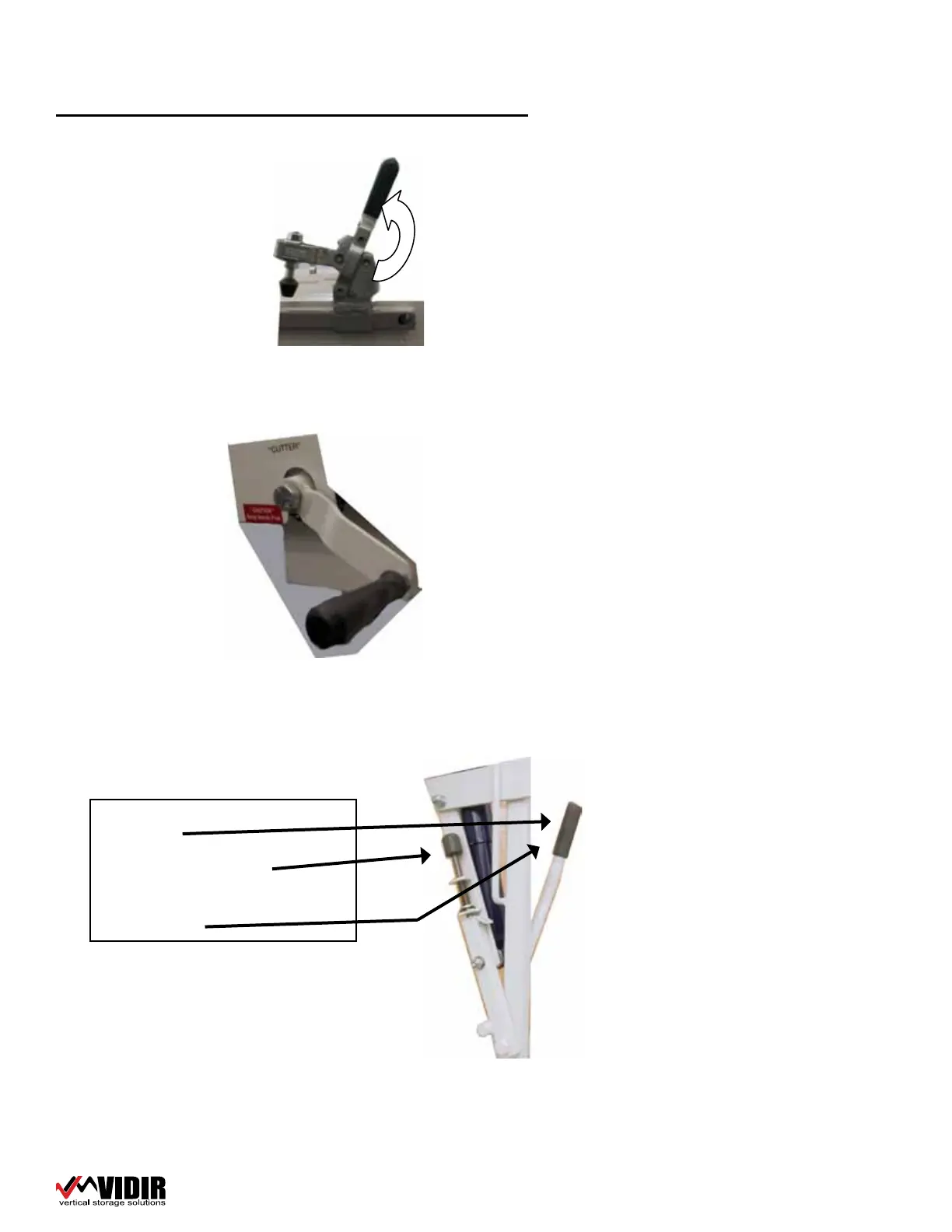

OPERATING INSTRUCTIONS
a) Grasp handle rmly and
push back�
b) Pull release pin up
c) Gently pull lever forward and
lower the roll�
15� Lock the material to the table with clamps provided�
16� Recheck the counter to ensure you have the correct length of material�
17� Grasp the cutting bar handle crank and run cutter across the table to make
the cut�
18� Wrap the cut product with tape or plastic, as desired�
19� Place cart under cut product�
20� Lower product onto cart by lowering both ends of re-roller
21� Release the re-roller latches by turning the latch release nut in the counter
clockwise direction�
To Next Page
