3 Product information
3.1 Model description
Description: PYROMAT DYN
Manufacturer: Köb Holzheizsysteme GmbH
Flotzbachstraße 33
A-6922 Wolfurt
T 0043 / (0) 5574 / 6770 – 0
F 0043 / (0) 5574 / 65707
office@kob.cc
www.kob.cc
, www.koeb-holzheizsysteme.com
Viessmann Group
Overview
PYROMAT DYN

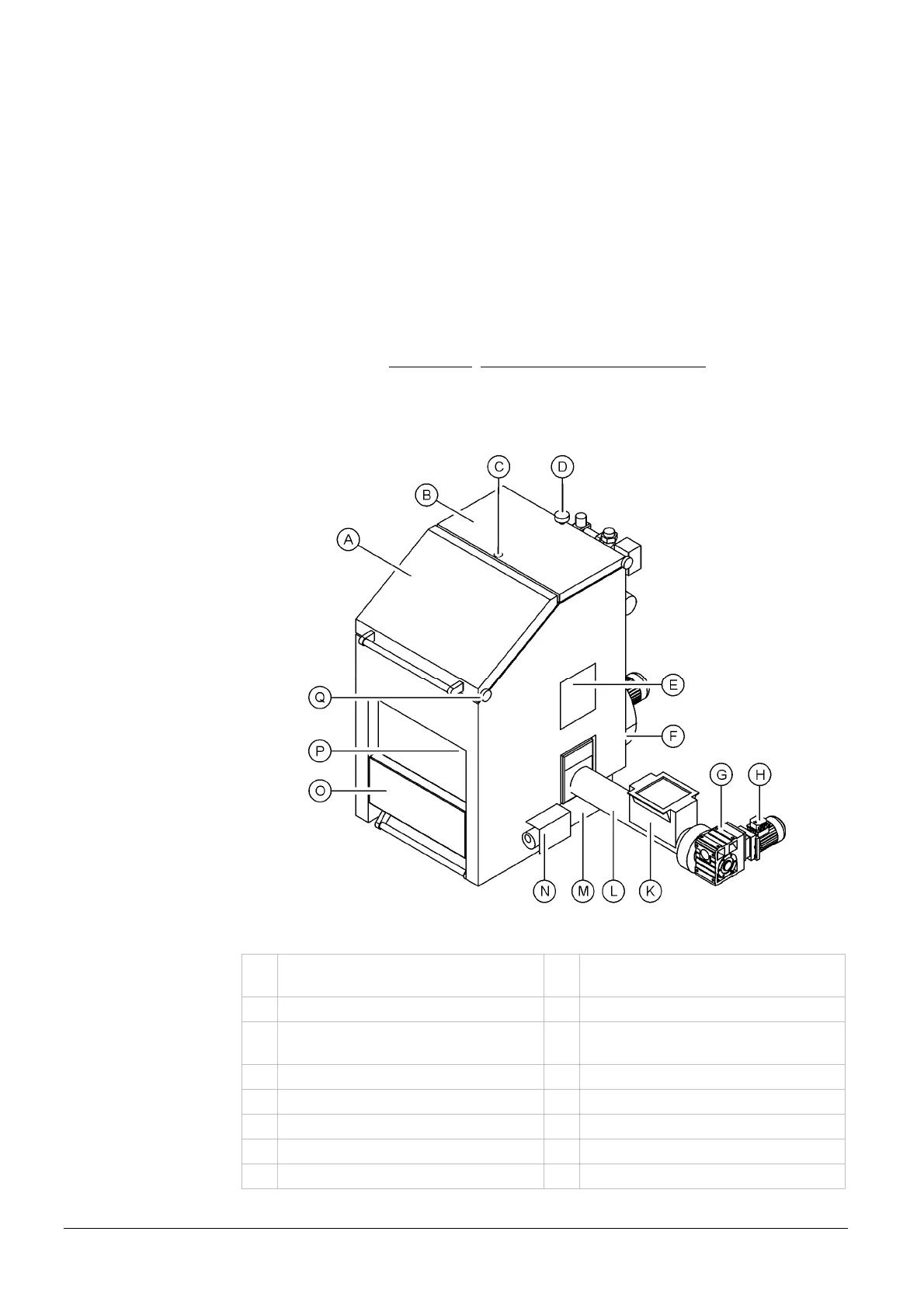

Fig. 2 Overview PYROMAT DYN front
A
Firebox door, feeder chute
underneath
B
Top opening cleaning lid
C
Sight glass
D
Lock for cleaning lid
E
Combustion chamber maintenance
cover
F
Exhaust gas sensor, lambda sensor
G
Feed auger gearing
H
Feed auger motor
K
Dosing container
L
Feed auger
M
Lower cleaning door
N
Automatic ignition system
O
Ash pan door
P
Temperature limiting safety switch
Q
Firebox door lock
