Cylinder capacity l 160 200
Length (7) a mm 581 581
Width b mm 608 608
Height c mm 1189 1409
d mm 1050 1270
e mm 884 884
f mm 634 634
g mm 249 249
h mm 72 72
k mm 317 317

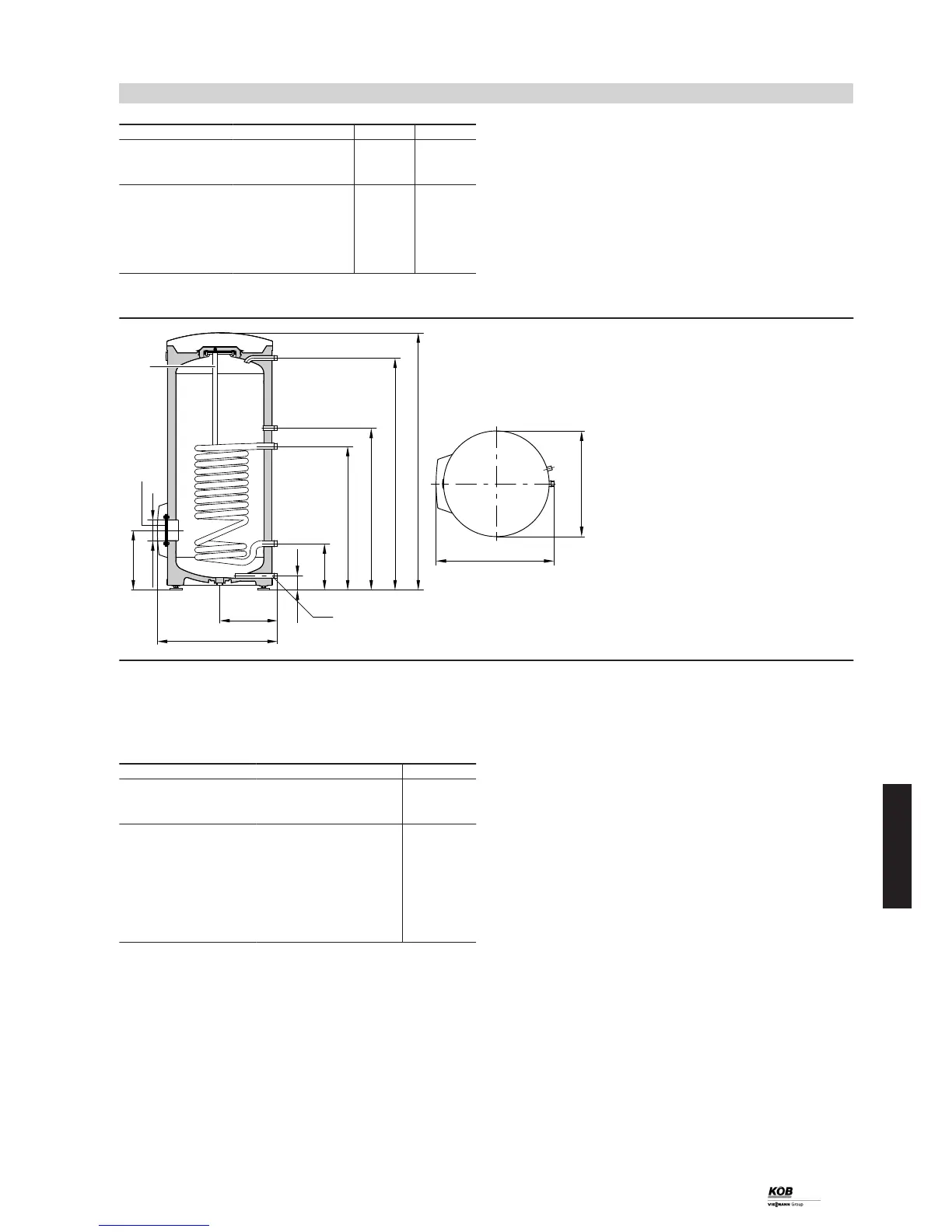

300 litre capacity
l
SPR
b
a
c
d
e
f
g
h
k
m
BÖ
VA
WW
Z
HV/SPR
HR
KW/E
b
BÖ Inspection and cleaning aperture
E Drain
HR Heating water return
HV Heating water flow
KW Cold water
SPR Cylinder temperature sensor of the cylinder temperature con-
troller or thermostat
VA Protective magnesium anode
WW DHW
Z DHW circulation
Cylinder capacity l 300
Length (7) a mm 633
Width b mm 705
Height c mm 1746
d mm 1600
e mm 1115
f mm 875
g mm 260
h mm 76
k mm 343
l mm 7 100
m mm 333
DHW cylinder
(cont.)
