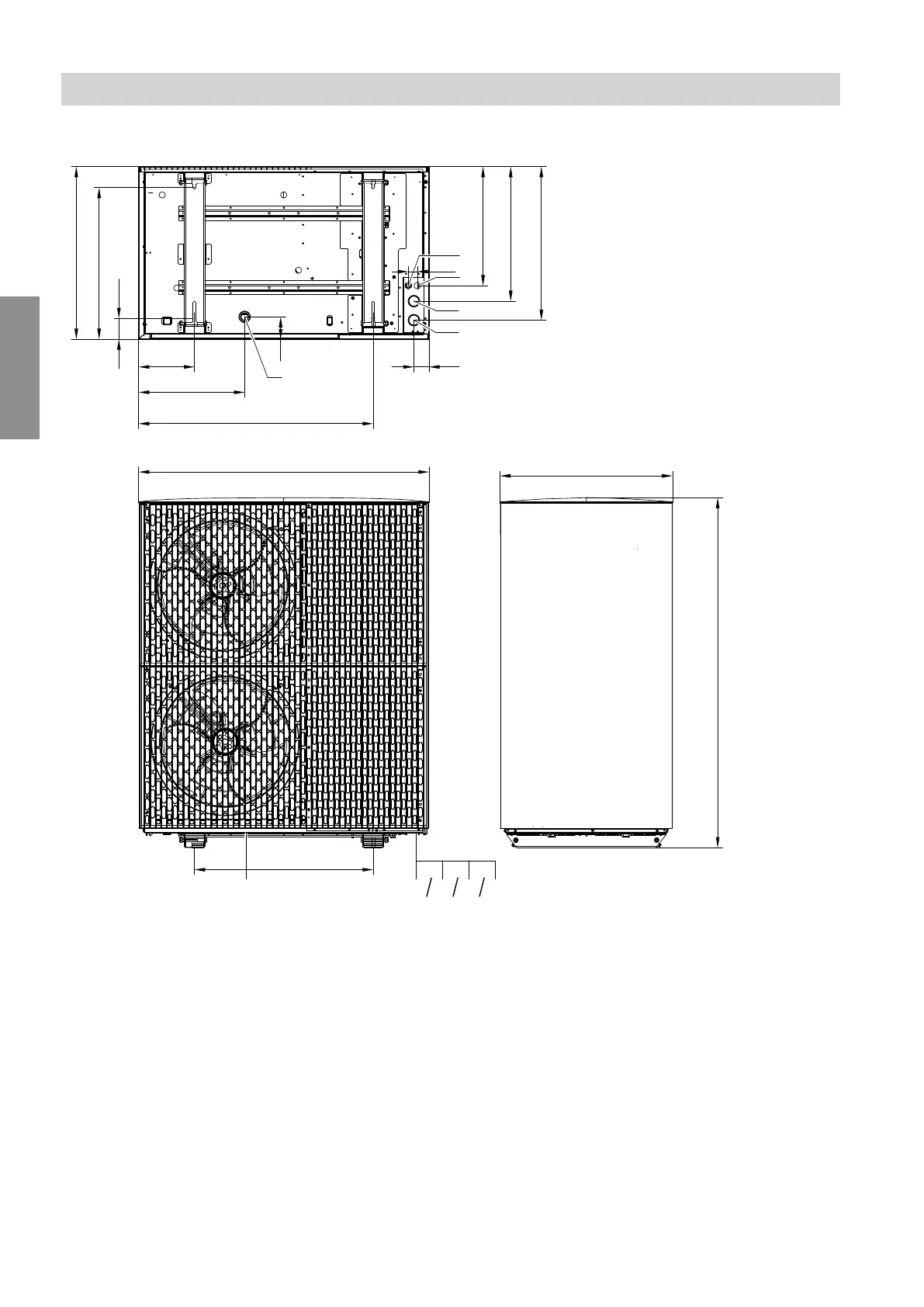

Outdoor unit with 2 fans, types ...A16 to A19
680
599
82
1144
705
A C DBE
680
1382
60
221
926
418
88
370
531
606
36
A
B
C
D
E
Fig. 6
A
Heating water to indoor unit (heating water outlet):
Plug-in connection for Cu 28 x 1.0 mm
B
Heating water from indoor unit (heating water
inlet): Plug-in connection for Cu 28 x 1.0 mm
C
Power cable
D
CAN bus communication cable (accessories)
E
Condensate drain
