67
!
Please note

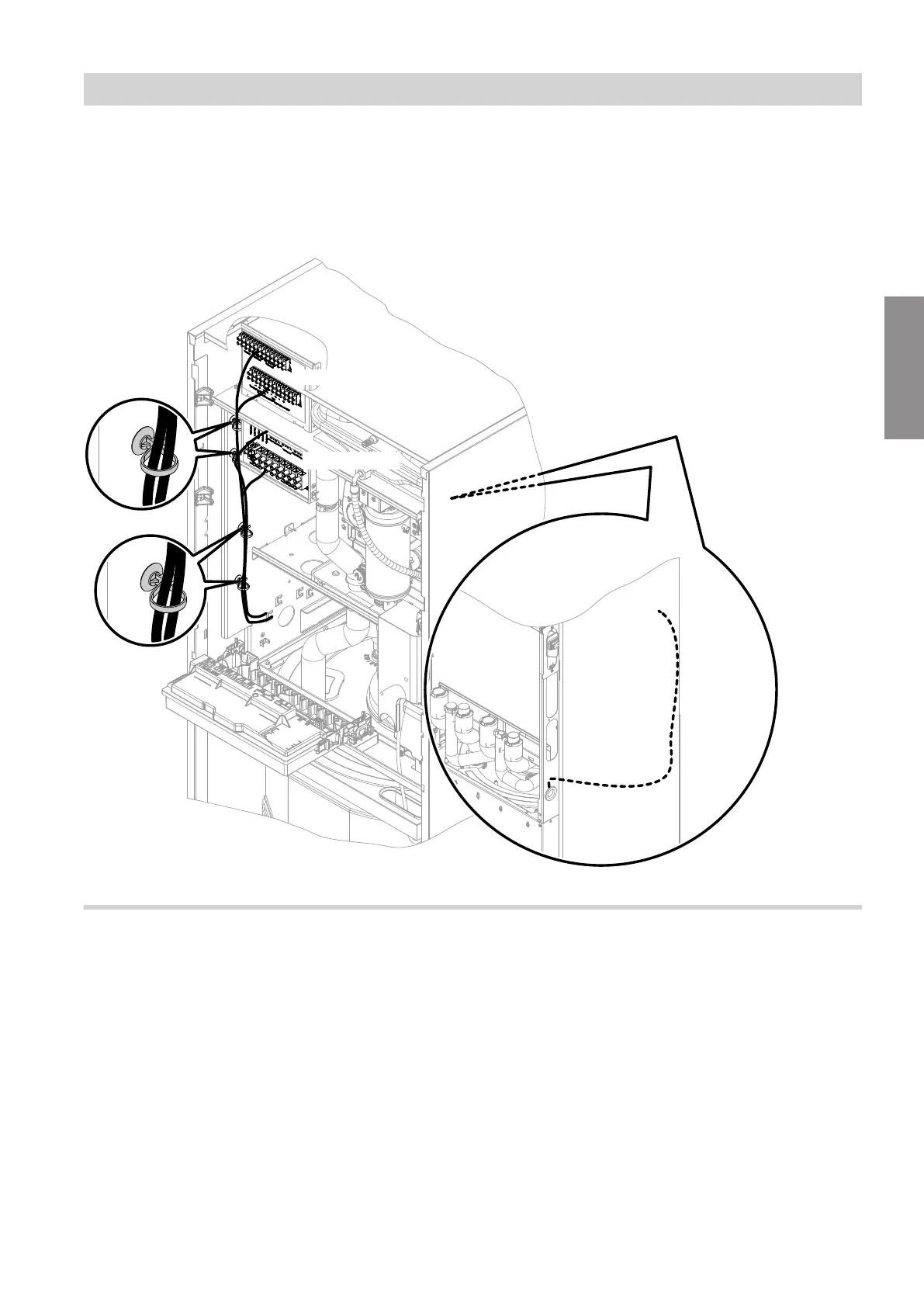

Openly routed cables can be damaged by vibra-
tion.
Fasten all cables inserted into the appliance,
along with the existing cable harness, with cable
ties.
Fig. 52
Notes regarding the connection values
■
The specified output is the recommended connected
load.
■
The total output of all components connected directly
to the electronics control module (e.g. pumps,
valves, message facilities, contactors): Max. 1000 W
If the total output is < 1000 W, the individual rating of
a component (e.g. pump, valve, message facility,
contactor) can be greater than specified. However,
the breaking capacity of the relevant relay must not
be exceeded.
■
The specified current indicates the max. switching
current of the switching contact. Observe total cur-
rent of 5 A.
Electrical connections
Electrical connection of the indoor unit (cont.)
6222080
Installation
