11
!
Please note
To prevent material damage, install the buffer
cylinder in a draught-free room free from the risk
of frost.
Otherwise the buffer cylinder will have to be
drained if there is a risk of frost while it is not in
use.
■
Provide adequate clearance from the wall so that the
temperature controller can be operated (if installed).
■
Placing the heating water buffer cylinder on a plinth
will make the room easier to clean.
■
Use the adjustable feet to level the buffer cylinder.
Note
Never extend the adjustable feet beyond a total length
of 35 mm.

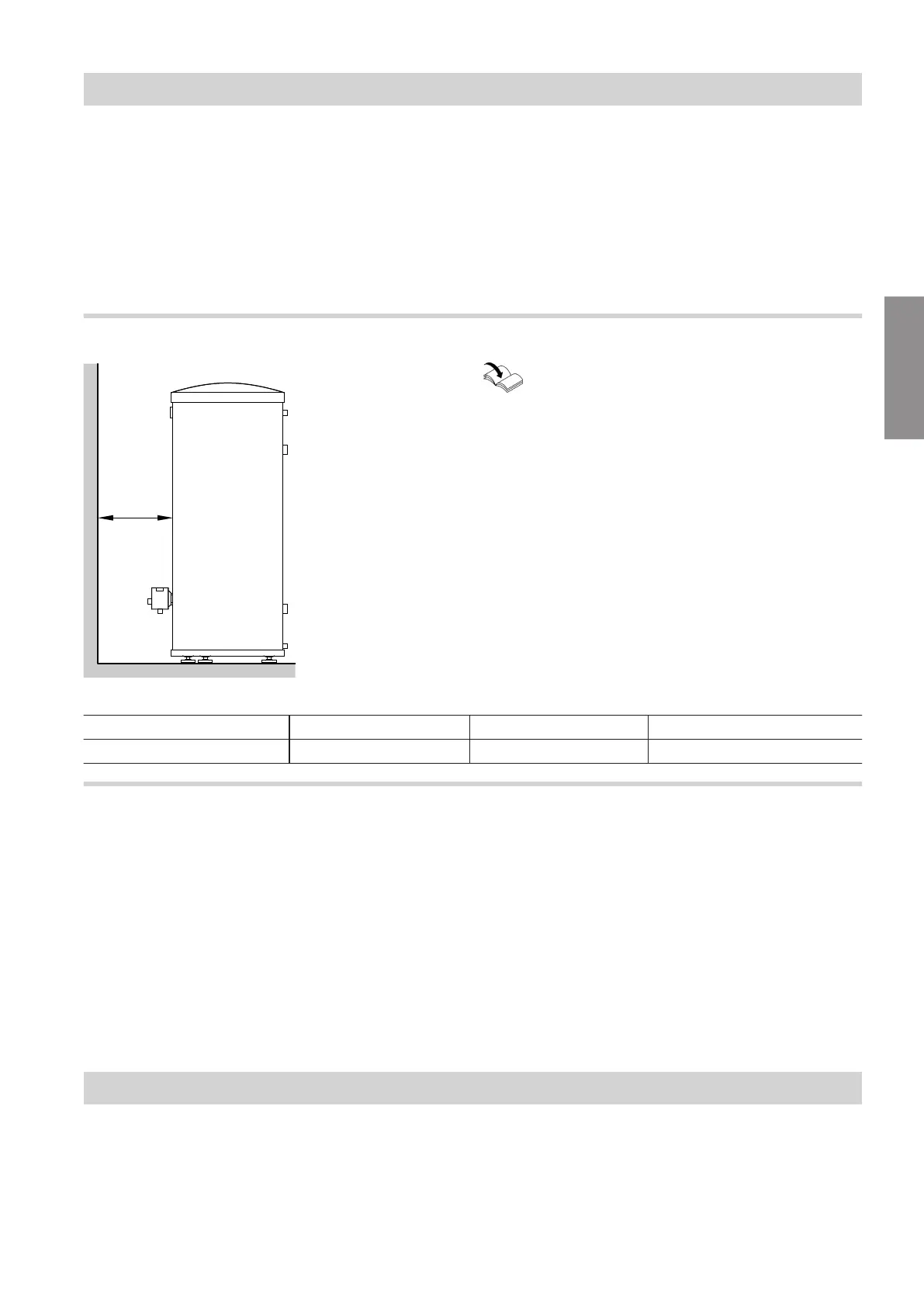

Vitocell with immersion heater, type SVW
Fig. 7
Immersion heater installation instructions
Maintain the minimum clearance.
Note
The unheated length of any threaded immersion
heater installed on site must be at least 100 mm.
Vitocell Capacity Dim. a Immersion heater output
Type SVW 200 l min. 650 mm 6 kW
Vitocell 100-E/100-W, type SVW
!
Please note
The thermal insulation must not come into con-
tact with naked flames.
Exercise caution when welding and brazing.
1. Install the cylinder temperature sensors; see
page 23.
2. At heating water flow temperatures above 95 °C,
remove the cover bezels from the pipe outlets
(bezels have l.h. threads).
3. If no immersion heater is being installed, seal the
front female connection with the plug supplied and
fit the cover.
4. Affix the type plate supplied to the back of the heat-
ing water buffer cylinder.
Connecting the equipotential bonding
Connect the equipotential bonding in accordance with
the requirements stipulated by your local power supply
utility and VDE [or local] regulations.
c Carry out the equipotential bonding in accordance
with the technical requirements stipulated by the local
power supply utility and SEV regulations.
Installation sequence
Installing the Vitocell
5517 175 GB
Installation
