21

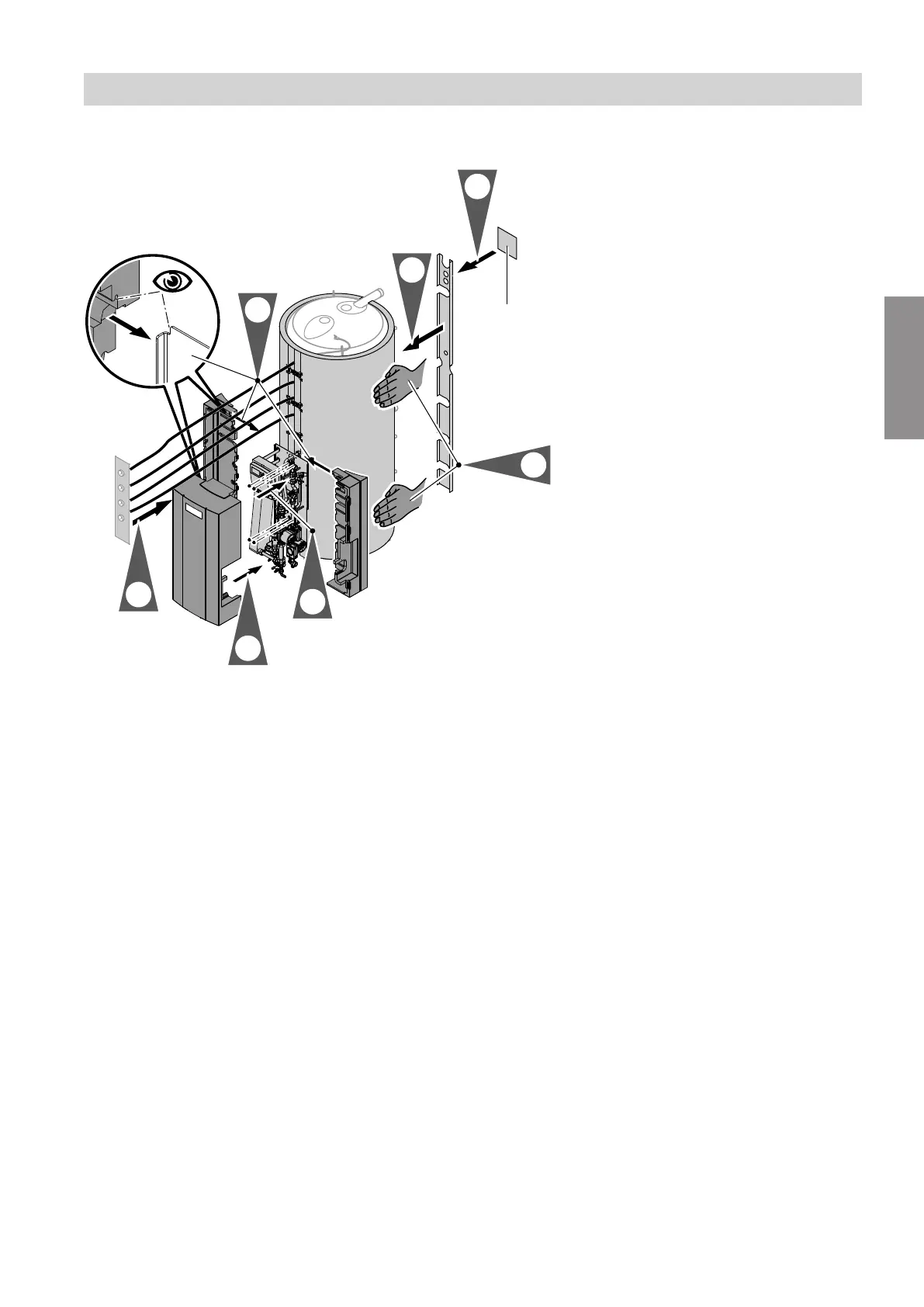

Fitting the cover strips
5.
6.
7.
A
3.
2.
1.
4.
Fig. 18
A
Type plate (self-adhesive)
1. Tighten the nuts on the bolts.
2. Trim and fit the cover strip.
3. Push in the rear thermal insulation of the Vitotrans.
Observe the groove in the thermal insulation.
4. Fit the front thermal insulation of the Vitotrans.
5. Tap the cylinder thermal insulation towards the
front. This reduces the gap between the Vitotrans
and the cylinder.
6. Fit the rear strip to the thermal insulation.
7. Affix the type plate.
Installation sequence
Fitting the Vitotrans and thermal insulation,… (cont.)
5517 175 GB
Installation
