Fitting the thermal insulation jacket
Note
Ensure that no fleece remnants enter the heating
water buffer cylinder through the cylinder connections.
3.
1.
2.

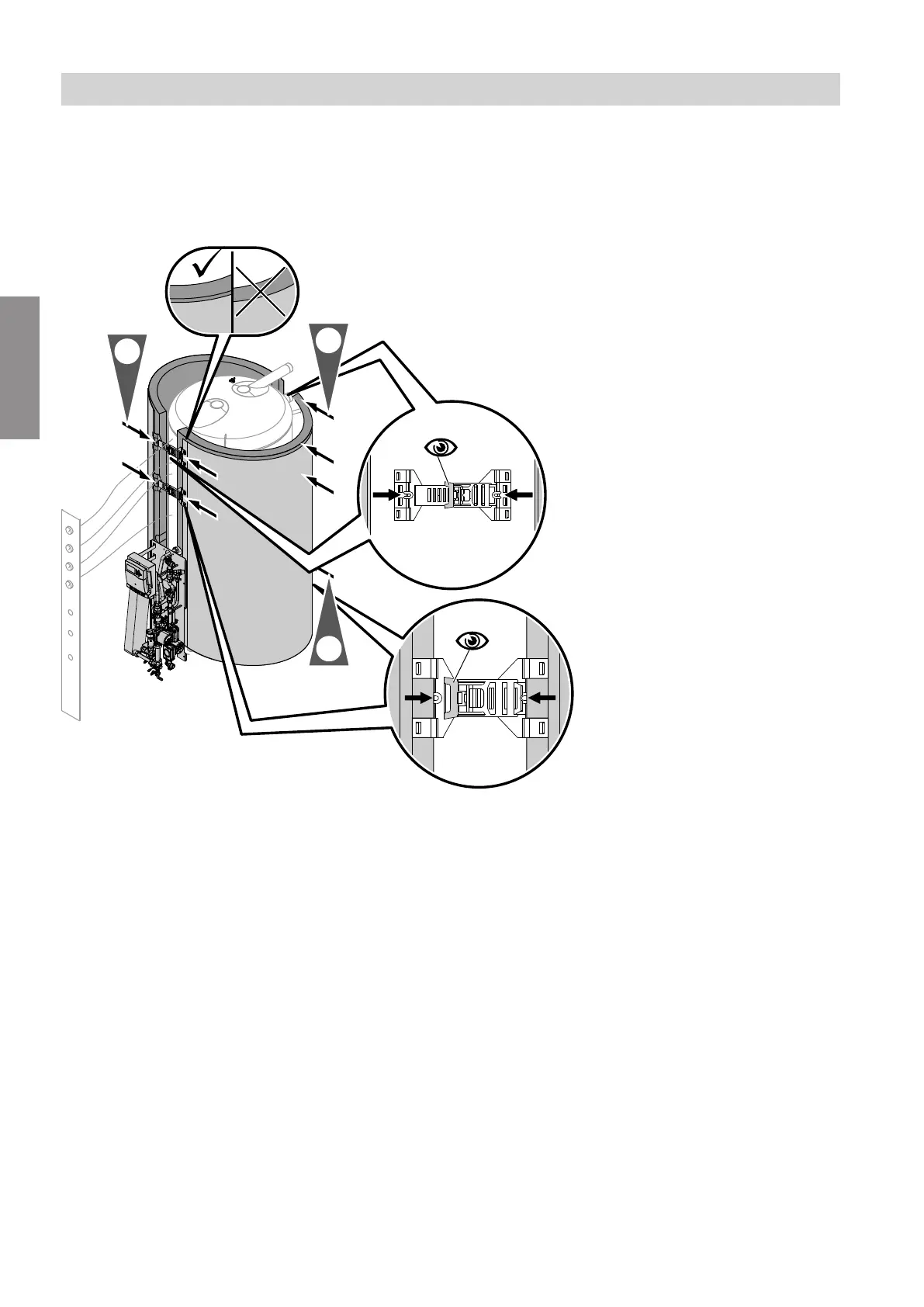

Fig. 17
Note
2 people are required for the following work.
1. At the back of the cylinder: Attach 6 clip fasteners
to the edges of the right and left sections of the
insulation jacket. Place the thermal insulation jacket
around the cylinder body.
Note
Leave the clip fasteners in the first notch.
2. Fit 4 clip fasteners above and 2 clip fasteners
behind the Vitotrans so that they are evenly
spaced.
3. Push the clip fasteners as close together as possi-
ble.
Installation sequence
Fitting the Vitotrans and thermal insulation,… (cont.)
5517 175 GB
Installation
