Viessmann VITOCELL 100-W Installation And Service Instructions

30
Pos. Component Serial no. (see type plate)
7201937 7201938
Part no. of individual part
0003 Thermal insulation jacket 100-E, left 7843101 7843103
0004 Thermal insulation mat, top 7835640 7835640
0005 Thermal insulation mat, bottom 7835641 7835641
0006 Cover 7835737 7835737
0007 Cover strip 7835742 7835750
0008 Thermometer cover (grey) 7820231 7820231
0009 Thermometer 30 - 120 °C 7819509 7819509
0010 VIESSMANN logo (curved) 7819230 7819230
0011 Cover strip 7835743 7835752
0012 Pipe collar (3 pce) 7835767 7835767
0013 Pipe collar (2 pce) 7835766 7835766
0014 Cover with logo 7840352 7840352
0015 Pipe collars without hole 7839961 7839961
0016 Cover with thermal insulation 7822252 7822252
0013
0013
0004
0011
0005
0002
0003
0001
0001
0008
0009
0012
0007
0006
0010
0012
0006
0015
0014
0014
0016
Fig. 26

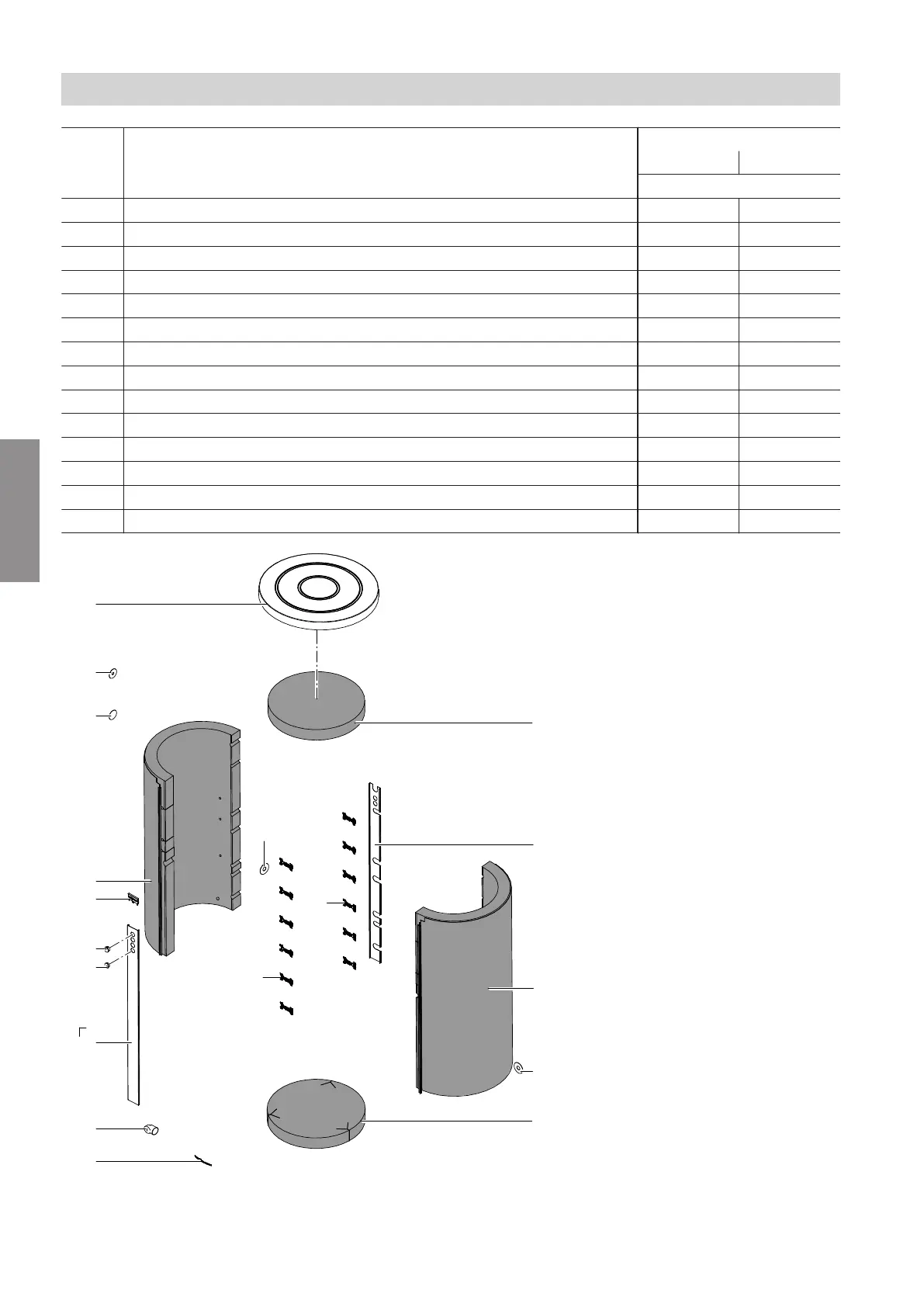

Parts list, type SVPA (750/950 l)
Thermal insulation assembly (cont.)
5517 175 GB
