Depending on the system version, the
wall mounting bracket is supplied with
the sub-mounting kit or forms part of the
installation aid.
Note
The supplied screws and rawl plugs are
suitable for concrete.
Use fixing materials for a weight of at
least 130 kg in the case of other building
materials.
Position the wall mounting bracket so
that it is exactly horizontal.
As option, a self-supporting mounting
frame can be used for installation.
Depending on the nature of the installa-
tion room, e.g. sound-reflecting (tiled)
walls or lightweight partition walls, a self-
supporting mounting frame (accessory)
is available for use. Provide additional
sound insulation measures on site if nec-
essary to minimise structure-borne
noise.
Installation with a sub-mounting kit
Sub-mounting kit installation
instructions
Installation sequence

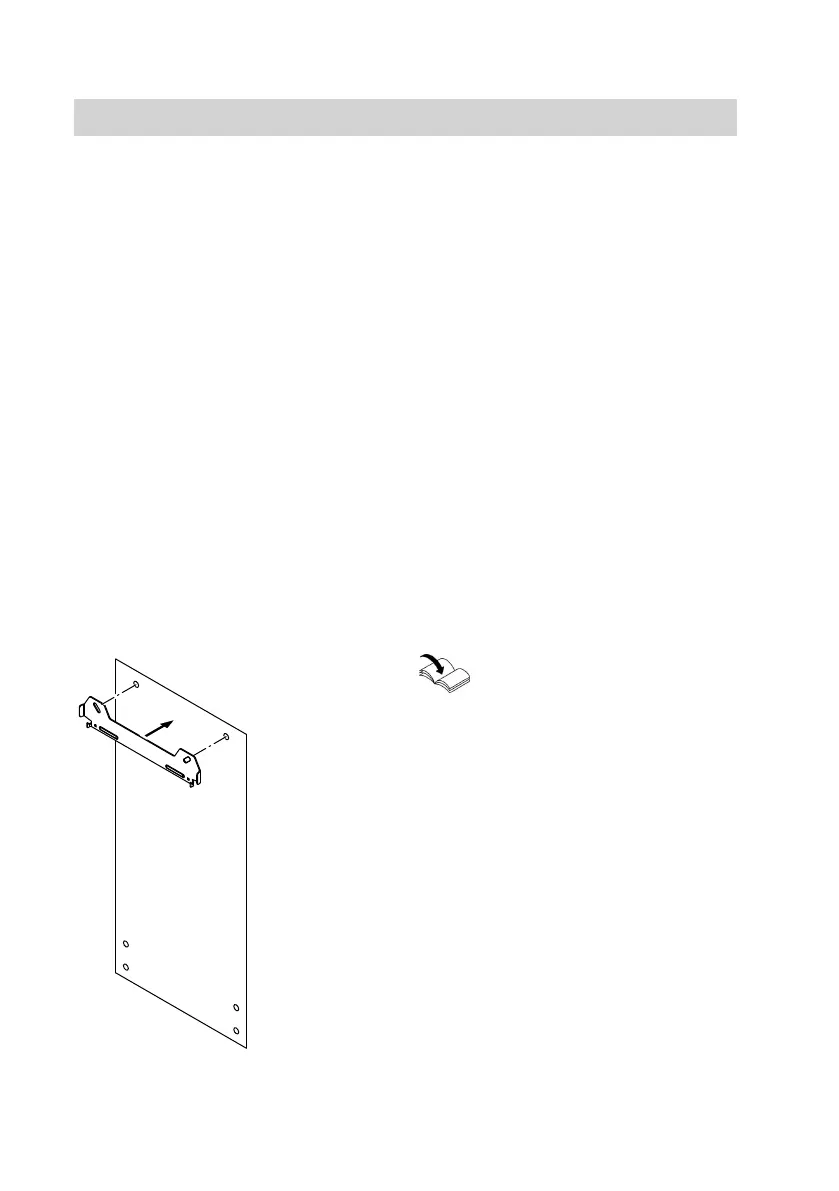

Fitting the wall mounting bracket
5618 294 GB
