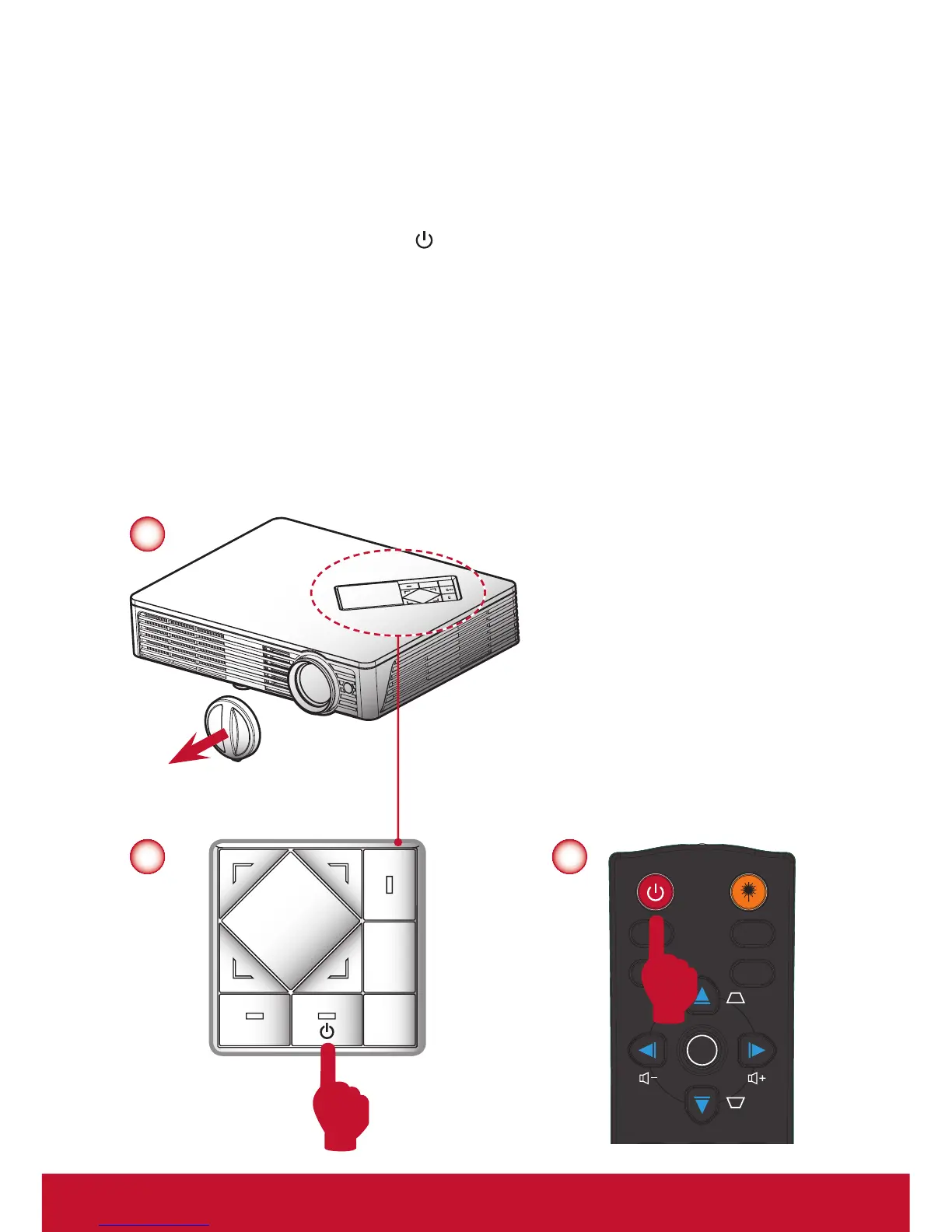

Powering On the Projector
1. Remove the lens cap. n
2. Securely connect the power cord and signal cable. When connected, the Power
/('ZLOOÀDVKUHG
3. Turn on the lamp by pressing
“
” button on the control panel or on the remote
control. The Power LED will turn blue. o
4. Turn on your source that you want to display on the screen (computer, note-
book, video player, etc). The projector will detect the source automatically and
will display on the screen.
5. If you connected multiple sources at the same time, press the “Source” button
on the remote control to switch between inputs.
Powering On/Off the Projector
MENU
LAMP
SOURCE TEMP
2
1
Enter
HDMI PC
SD/USB
Video
Power Laser
or
2

ViewSonic PLED-W500 Specifications

General

Matrix size	0.45 \
Number of colors	16.78 million colors
Projection distance	0.91 - 2.4 m
Vertical scan range	48 - 120 Hz
Horizontal scan range	31 - 100 kHz
Projection technology	DLP
Contrast ratio (typical)	6000:1
Screen size compatibility	30 - 80 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-40 - 40 °
Aspect ratio	16:10
RS-232 ports	-
Network ready	No
Dimensions (WxDxH)	214 x 164 x 42 mm
Connectivity technology	Wired
Maximum analog resolution	1680 x 1050 pixels
Maximum digital resolution	1920 x 1080 pixels
Focus	Manual
Focal length range	- mm
Lamps quantity	1 lamp(s)
Light source type	LED
Service life of light source	20000 h
PC Audio in	Yes
USB connector type	USB Type-A
USB 2.0 ports quantity	2
S-Video inputs quantity	1
Ethernet LAN (RJ-45) ports	0
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1440 x 1050, 1680 x 1050 (WSXGA+), 640 x 480 (VGA)
RMS rated power	2 W
Audio formats supported	MP3
Video formats supported	H.264, MPEG2, MPEG4
Product color	Black
Market positioning	Portable
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	144 W
Compatible memory cards	SD
Internal storage capacity	0.5 GB
Noise level	38 dB
Certification	CE, CB, UL, cUL, FCC (including ICES-003), NOM, TUV-S Argentina, RoHS
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	VGA

Weight and Dimensions

Weight	1180 g
