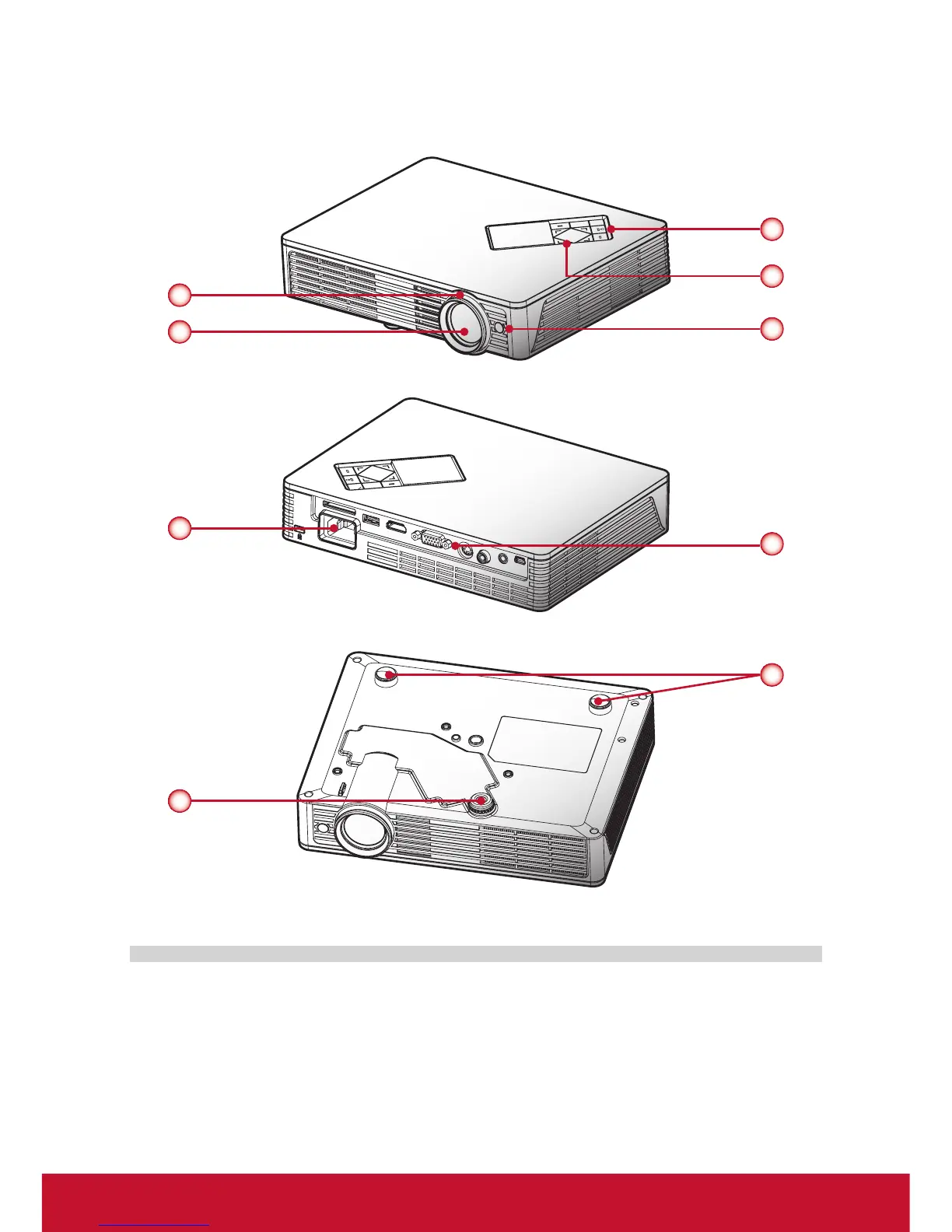

Product Overview
1. Focus Ring
2. Zoom Lens
3. Power Button / LED Indicators
4. Control Panel
5. IR Receiver
Main Unit
3
4
8
6
7
1
5
2
6. Power Socket
7. Input / Output Connection Ports
8. Elevator Foot
9. Rubber Feet
(Front View)
(Rear View)
(Bottom View)
9

ViewSonic PLED-W500 Specifications

General

Matrix size	0.45 \
Number of colors	16.78 million colors
Projection distance	0.91 - 2.4 m
Vertical scan range	48 - 120 Hz
Horizontal scan range	31 - 100 kHz
Projection technology	DLP
Contrast ratio (typical)	6000:1
Screen size compatibility	30 - 80 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-40 - 40 °
Aspect ratio	16:10
RS-232 ports	-
Network ready	No
Dimensions (WxDxH)	214 x 164 x 42 mm
Connectivity technology	Wired
Maximum analog resolution	1680 x 1050 pixels
Maximum digital resolution	1920 x 1080 pixels
Focus	Manual
Focal length range	- mm
Lamps quantity	1 lamp(s)
Light source type	LED
Service life of light source	20000 h
PC Audio in	Yes
USB connector type	USB Type-A
USB 2.0 ports quantity	2
S-Video inputs quantity	1
Ethernet LAN (RJ-45) ports	0
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1440 x 1050, 1680 x 1050 (WSXGA+), 640 x 480 (VGA)
RMS rated power	2 W
Audio formats supported	MP3
Video formats supported	H.264, MPEG2, MPEG4
Product color	Black
Market positioning	Portable
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	144 W
Compatible memory cards	SD
Internal storage capacity	0.5 GB
Noise level	38 dB
Certification	CE, CB, UL, cUL, FCC (including ICES-003), NOM, TUV-S Argentina, RoHS
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	VGA

Weight and Dimensions

Weight	1180 g
