RS-232 Protocol
This document describes the hardware interface spec and soware protocols of
RS232 interface communicaon between ViewSonic LFD and PC or other control
units with RS232 protocol.
The protocol contains three command secons:
• Set-Funcon
• Get-Funcon
• Remote control pass-through mode
NOTE: Below, “PC” represents all the control units that can send or receive the
RS232 protocol command.
Descripon
RS232 Hardware Specicaon

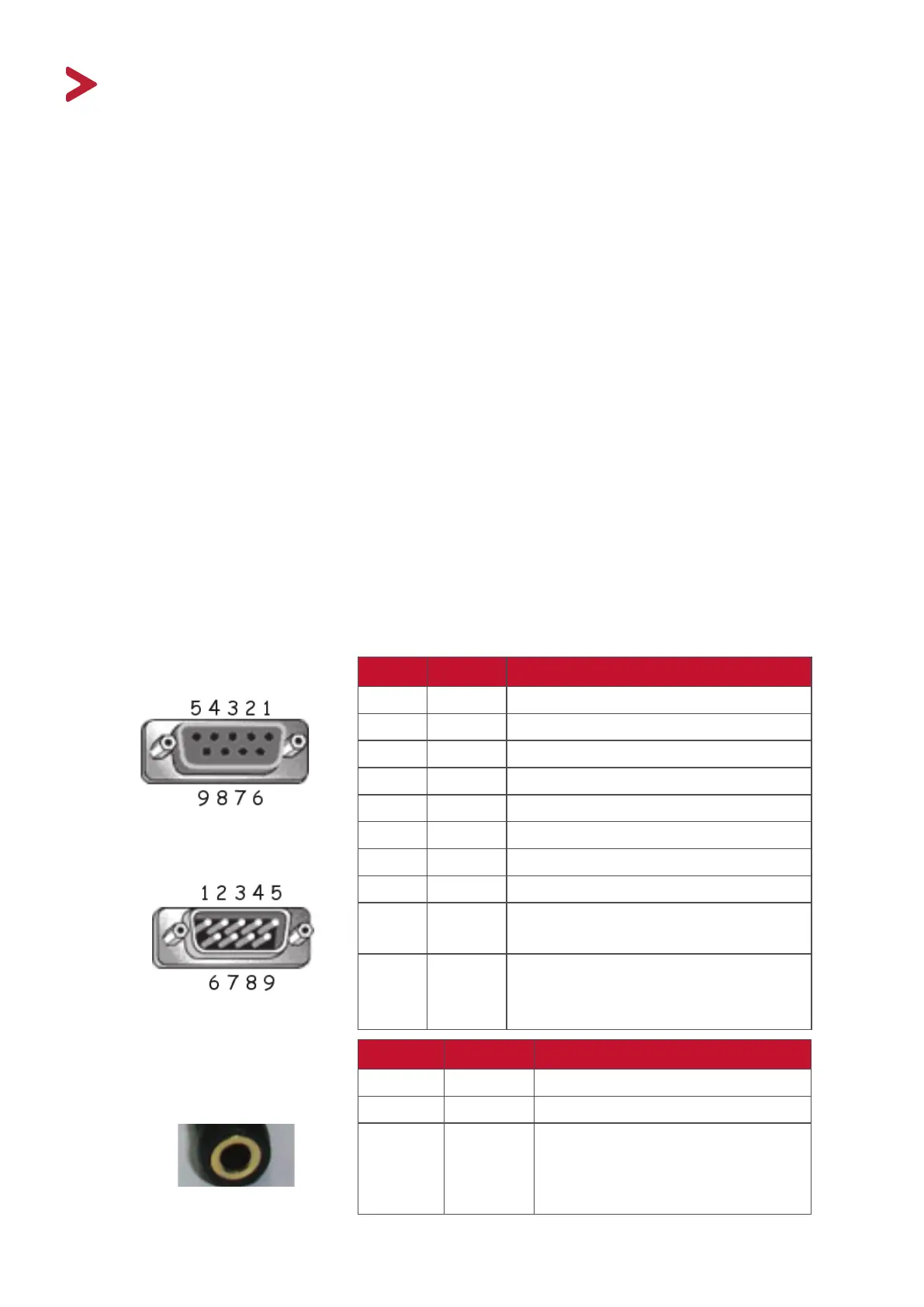

ViewSonic LFD communicaon port on the rear side:
1. Connector type: DSUB 9-Pin Male (or 3.5 mm barrel connector)
2. Use of crossover (null modem) cable for connecon
3. Pin Assignment:
Female DSUB 9-Pin
Male DSUB 9-Pin
Pin # Signal Remark
1 NC
2 RXD Input to Display
3 TXD Output from Display
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC Provide +5V/2A power for external
specic dongle *3.0
frame GND
3.5 mm barrel
connector (alternative
for limited space)
Item Signal Remark
Tip TXD Output from Display
Ring RXD Input to Display
Sleeve GND
