Installation Guide MX1 Fire Alarm System (NZ)
LT0360 ISSUE 2.43 29 NOVEMBER 2017 PAGE 4
Additionally, the 15U cabinet has two knockouts in
the rear of the cabinet – behind matching slots in
the gearplate. Refer Figure 2(b).

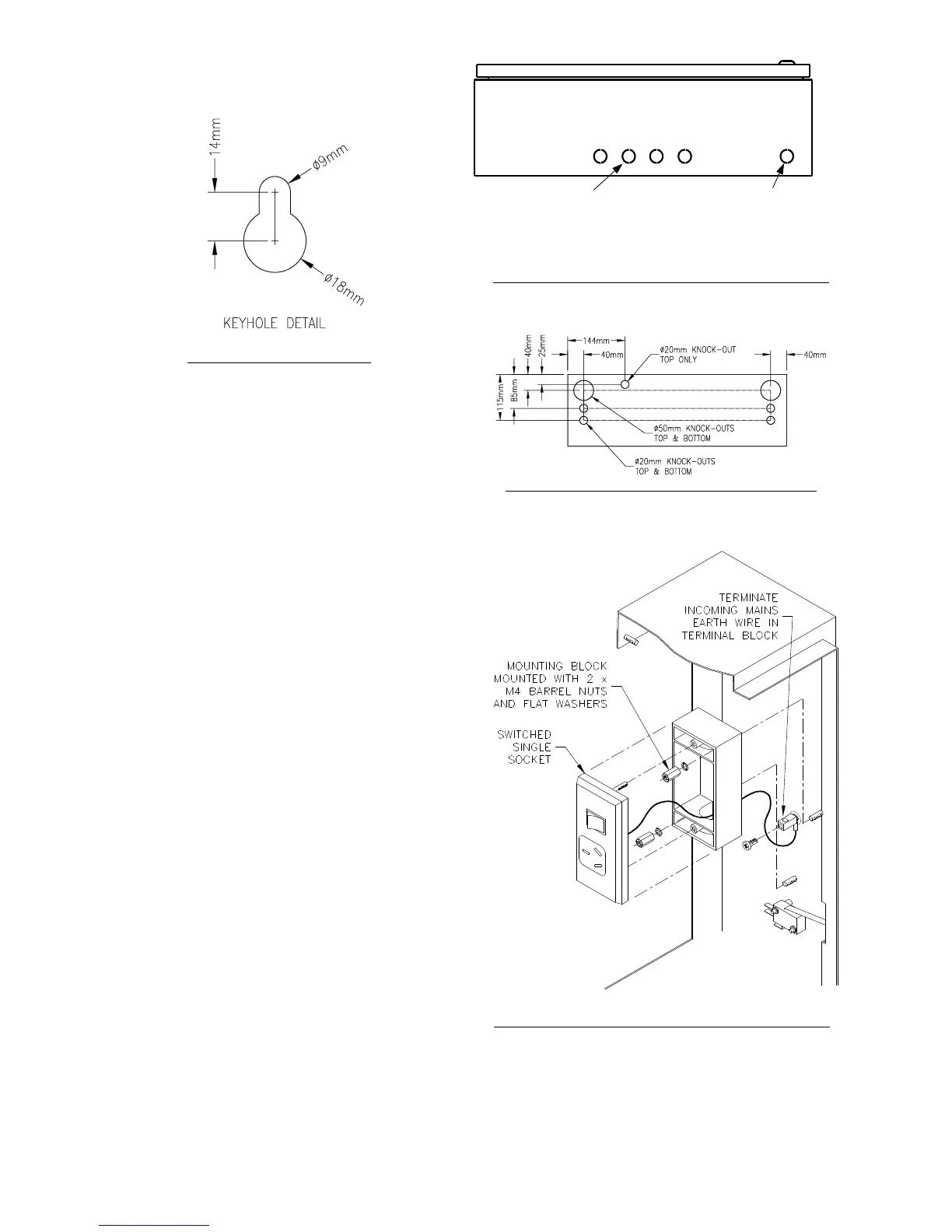

Figure 2(c) – Keyhole Detail
20mm knockouts for
other cabling
(top and bottom)
20mm knockout for
mains cable
(bottom only)
Figure 3(a) – Knockout positions on Slimline cabinet
Figure 3(b) – Knockout positions on 15U cabinet
Slimline Cabinet General Power
Outlet (current version)
A single switched GPO outlet is mounted on the
right side of the cabinet, and the power supply
module is plugged into it. See Figure 4(a).
The mains outlet is supplied with the MX1 and must
be wired by a suitably qualified electrician to comply
with NZ electricity safety regulations. A dedicated
current-limited supply must be used.
Terminate the incoming Mains earth wire to the
screw terminal block beneath the GPO. Do not
loosen or remove the earth wire from the terminal
block to the GPO.
Figure 4(a) – Slimline Cabinet General Power Outlet
